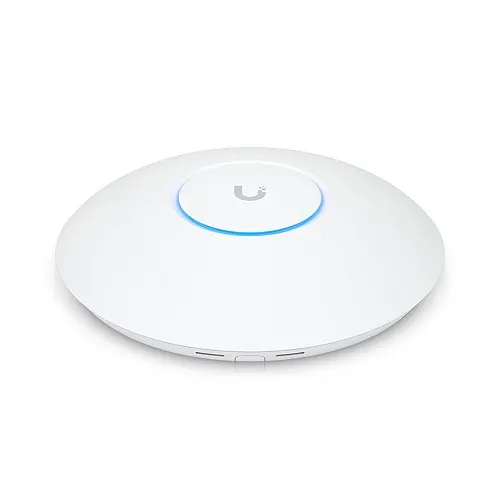

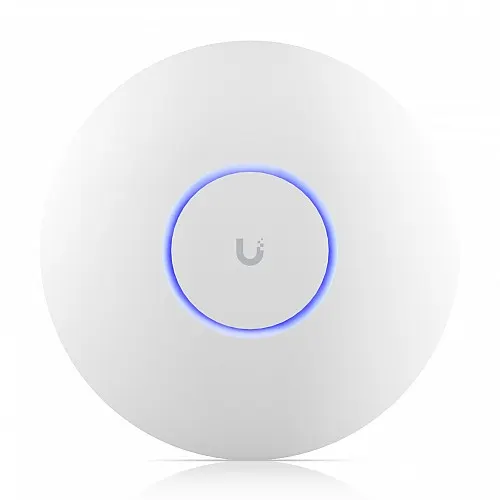

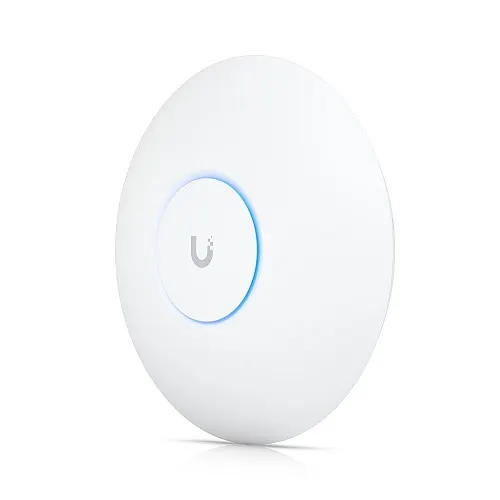

Ubiquiti UniFi 7 PRO Wi-Fi 7 Ceiling Access Point BE9300 U7-PRO

Ubiquiti UniFi 7 PRO Wi-Fi 7 Ceiling Access Point BE9300 U7-PRO

U7-Pro Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

• Access Point U7 Pro
• WiFi 7 tri-radio with 6 GHz
• 6 spatial streams
• 140 m² (1,500 ft²) coverage
• 300+ connected devices
• Powered using PoE+
• 2.5 GbE uplink

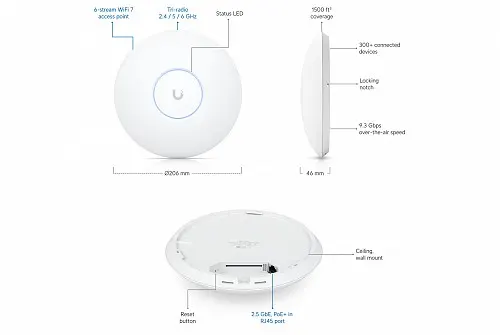

• Mechanical

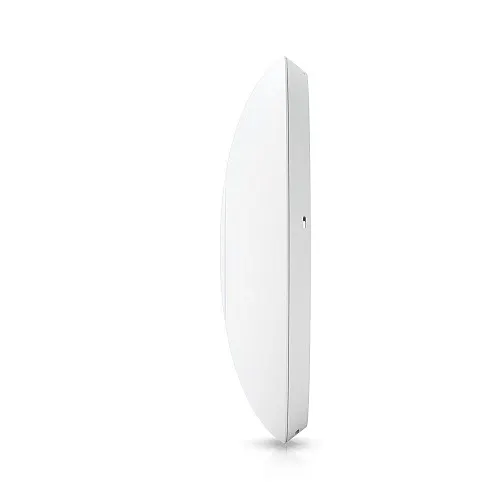

  • Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
  • Weight: 680 g (1.5 lb)
  • Enclosure material: Polycarbonate, metal
  • Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

  Hardware

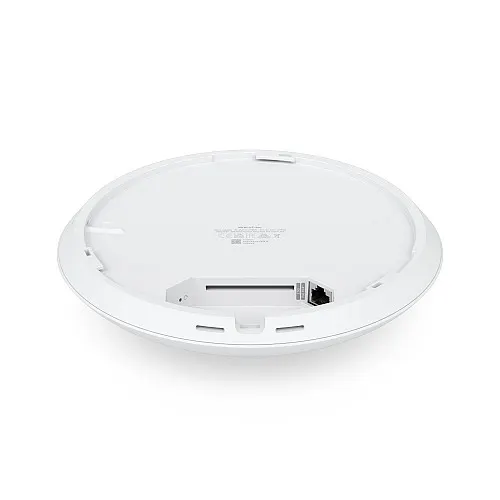

  • Networking interface: (1) 1/2.5 GbE RJ45 port
  • Management interface: Ethernet
  • Power method: PoE+
  • Power supply: UniFi PoE switch
  • Supported voltage range: 44—57V DC
  • Max. power consumption: 21W
  • Max. TX power:
    • 2.4 GHz: 22 dBm
    • 5 GHz: 26 dBm
    • 6 GHz: 23 dBm
  • MIMO:
    • 2.4 GHz: 2 x 2
    • 5 GHz: 2 x 2
    • 6 GHz: 2 x 2
  • Throughput rate:
    • 2.4 GHz: 688 Mbps
    • 5 GHz: 2882 Mbps
    • 6 GHz: 5765 Mbps
  • Antenna gain:
    • 2.4 GHz: 4 dBi
    • 5 GHz: 6 dBi
    • 6 GHz: 5.8 dBi
  • LEDs: White/blue
  • Button: Factory reset

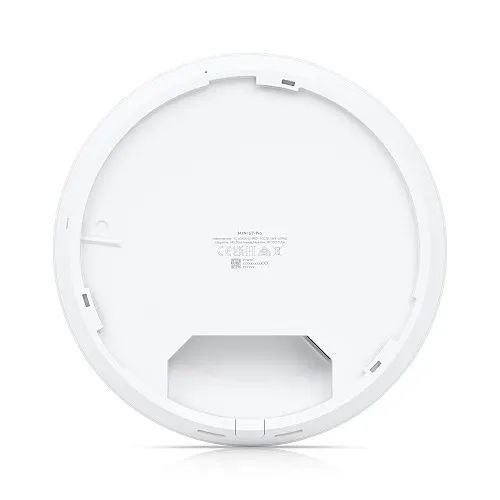

  • Mounting: Wall/ceiling (Included)
  • Ambient operating temperature: -30 to 60° C (-22 to 140° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

  Software

  • WiFi standards: 802.11a/b/g/n/ac/ax/be
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 300+
  • Supported Data Rates:
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

  Application Requirements

  • UniFi Network: Version 8.0.26 and later
  • UniFi OS: Version 3.2 and later
