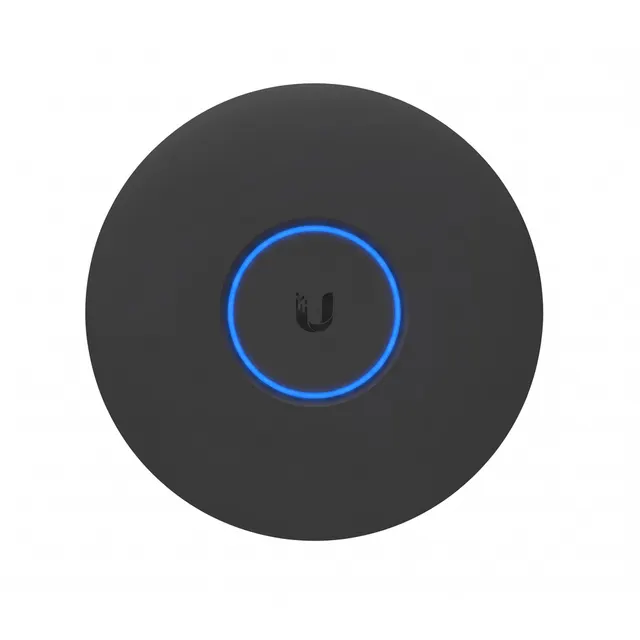

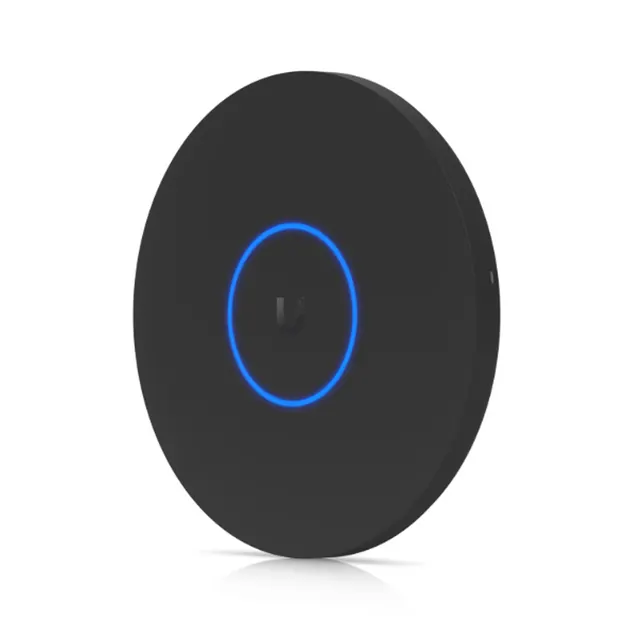

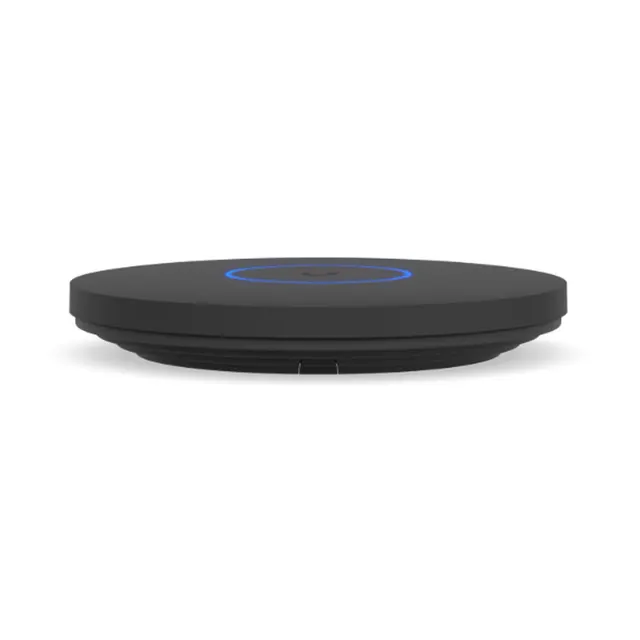

Ubiquiti UniFi 7 PRO XG Wi-Fi 7 Ceiling Access Point U7-Pro-XG Black

Order code: 30228EAN: 810177162124
  • <strong>Networking Interface:</strong> (1)10 GbE RJ45 port
  • <strong>Management Interface:</strong> Ethernet
  • <strong>Power Method:</strong> PoE+
  • <strong>Max. Power Consumption:</strong> 22 W
  • <strong>MIMO:</strong> 2.4 GHz (2x2), 5 GHz (2x2), 6 GHz (2x2)
  • All specifications
€279.00incl. VAT
Ships in 2-4 working days

Free pickup from our shop

Description

The UniFi 7 Pro XG is a high-performance Wi-Fi 7 ceiling access point designed specifically for high-density environments where massive data throughput and minimal latency are non-negotiable. By integrating a 10 GbE RJ45 uplink, this unit effectively eliminates the wired bottleneck often found in multi-gigabit wireless deployments, allowing the Wi-Fi 7 radio to operate at its full potential. The inclusion of a dedicated 6 GHz radio with 320 MHz channel support provides a clean, interference-free spectrum for next-generation devices, making it an ideal choice for stadiums, large corporate offices, and high-end residential projects.

  • Advanced Wi-Fi 7 Connectivity: Leverages Multi-Link Operation (MLO) and 4096-QAM to provide a vastly more efficient wireless experience with aggregate speeds reaching up to 10.7 Gbps.

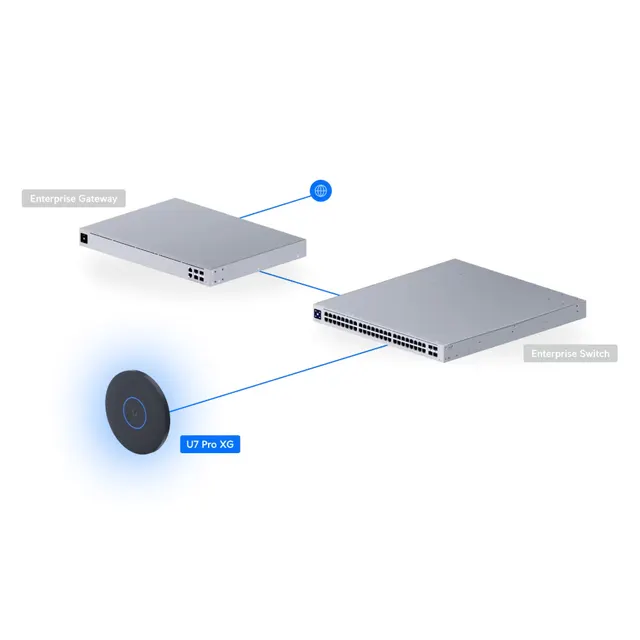

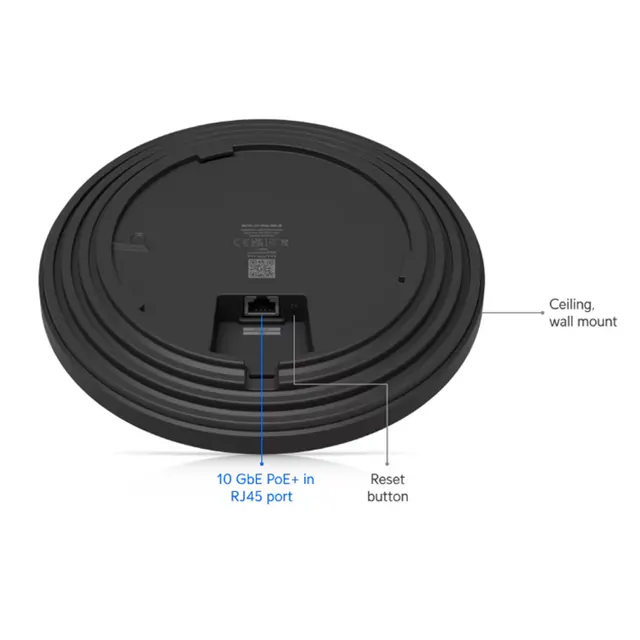

  • Ultra-High-Speed 10G Backhaul: Equipped with a 10 GbE RJ45 port to ensure the connection between the access point and the core switch can handle the immense traffic generated by Wi-Fi 7 clients.

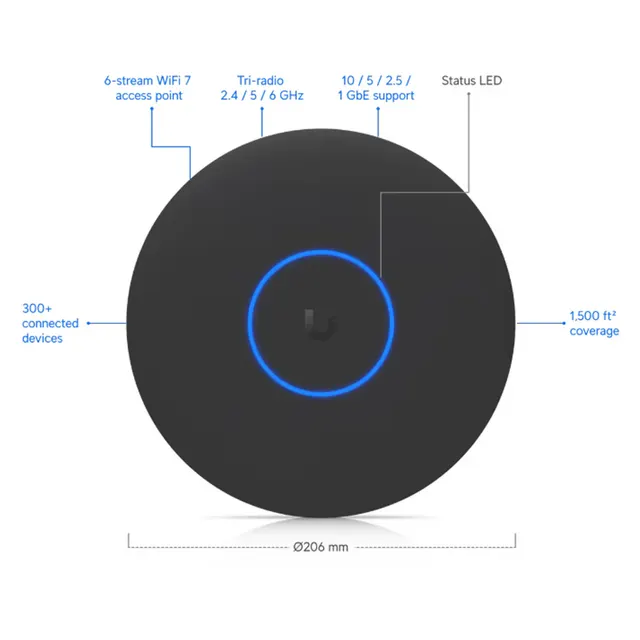

  • Optimized Tri-Band Performance: Features 2x2 MIMO on the 2.4 GHz, 5 GHz, and 6 GHz bands, including specialized support for 240 MHz channels on 5 GHz and 320 MHz channels on 6 GHz.
  • Massive Client Capacity: Engineered to maintain stable, high-speed connections for over 300 concurrent clients, making it suitable for the most demanding high-density public spaces.
  • Professional Grade Management: Fully integrated into the UniFi Network ecosystem, allowing for centralized configuration, site-wide analytics, and remote firmware orchestration.

Specifications

<strong>Networking Interface
</strong> (1)10 GbE RJ45 port
<strong>Management Interface
</strong> Ethernet
<strong>Power Method
</strong> PoE+
<strong>Max. Power Consumption
</strong> 22 W
<strong>MIMO
</strong> 2.4 GHz (2x2), 5 GHz (2x2), 6 GHz (2x2)
6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
<strong>Operating Temperature
</strong> -30°C to 40°C
<strong>Operating Humidity
</strong> 5% to 95% Non-condensing
<strong>Wi-Fi Standards
</strong> 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
<strong>Wireless Security
</strong> WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
<strong>Enclosure Materials
</strong> Polycarbonate, Aluminum

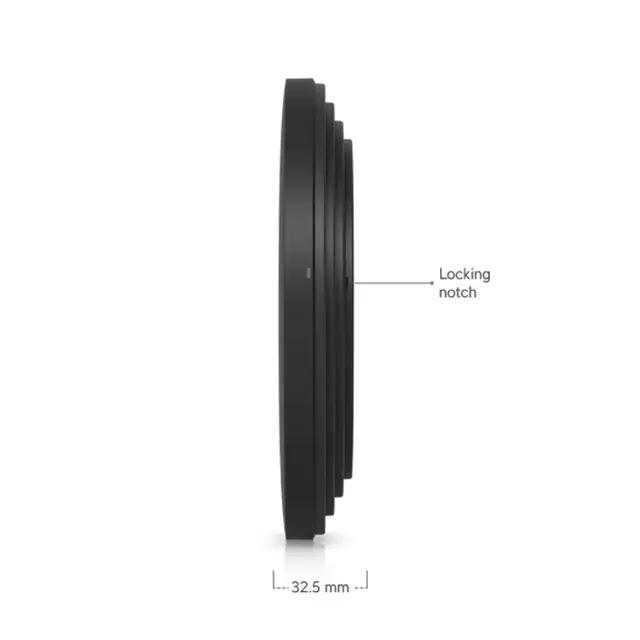

<strong>Dimensions
</strong> 206 x 32.5 mm
<strong>Weight
</strong> 750 g
