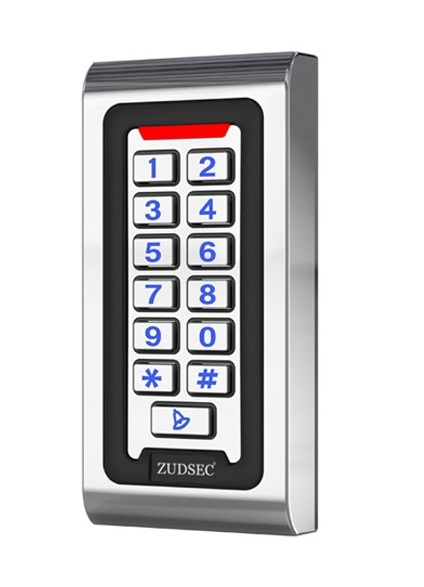

Zudsec Waterproof Standalone Access Controller ZDAC-2400W-WiFi
- Exquisite designs with non-masking Metal shell: Metal shell + Silica gel button(Metal button optional)
- Keystroke backlight
- Card appliance: 125kHz EM ID cards
- Reading range: up to 5 cm
- Change Codes 1 master,2000 users & prox cards
- Door open detection
- Door relay time 00-99 seconds; Alarm time 00-99 minutes
- Wiring Connections: Electric Lock, External Bell, External Push Switch, Magnetic Contacts
- Alarm function
- Non volatile Eeprom memory
- Application: luxurious office building, bank, Prisons
- Card Types : EM or EM compatible
- Codes : 2000 users
- Induction Distance : 3~6cm
- Door Relay : 3A
- Alarm output load : 3A
- Tamper Protection : Negative loop, normally closed
- Keypad : 12 keys, 3 LED status indicators
- Wiring Connections : Electric lock / Remote Request to Exit/ Door open detection / External door bell/ External Alarm
- Memory : Non volatile eeprom memory
- DC Supply Voltage : Low voltage input, 12 ±10% Vdc unregulated
- Current Consumption : 100mA @ quiescent maximum
- Operating Temperature : 0°C to 60°C (32°F to 140°F)
- Keypad Housing : Metal
- Dimensions : 143mm x 58mm x 25mm
- Weight : 500g
