AJAX Automation Wall LightSwitch(1 Gang)

AJAX Automation Wall LightSwitch(1 Gang)

• LightSwitch combines the reliability of professional security systems and a thoughtful user experience. The smart switch from Ajax has a large touch-sensitive panel that can be activated both by tap and contactless – just put your hand less than 15 mm close. A soft backlight helps do this in the dark. With LightSwitch, it's easy to turn on lights and floor lamps, control curtains or blinds, even remotely

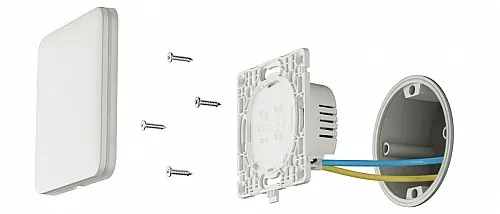

• LightSwitch is easy to install: it is sized to fit into a standard European socket, does not require a neutral wire and connects to the security system by scanning a QR code. The settings in the app allow you to turn on the lights by schedule, when disarming the security system or in response to an alarm. The switch is available in eight colours, has one-gang, two-gang and two-way versions

Compatibility

• Hub Plus
• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• Hub Hybrid (2G)
• Hub Hybrid (4G)
• Radio signal range extenders
• ReX
• ReX 2

Jeweller

• Proprietary wireless communication technology to transmit photo verifications :Two-way communication / Advanced anti-sabotage. / Block encryption featuring a dynamic key / Instant notifications / Remote configuration via the Ajax apps
• Frequency bands : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
• Maximum effective radiated power (ERP) : Up to 20 mW

• Automatic power control to reduce power consumption and radio interference
• Radio signal modulation : GFSK
• Radio communication range : up to 1,100 m
• Between the device and a hub (or radio signal range extender) in an open space
• Encrypted radio communication : All the data stored and transmitted are protected by block encryption with a dynamic key
• Frequency hopping to prevent radio interference and jamming

Features

• Scenarios : reaction to alarm / reaction to security mode change / activation by schedule / reaction to pressing another LightSwitch
• Operation without neutral wire : LightSwitch only needs a live wire to operate
• Power of switched device : from 5 to 600 W
• Contactless touch panel : LightSwitch is activated when a hand gets as close as 15 mm from the panel
• Night backlight : Optional, can be turned off in the Ajax app device settings

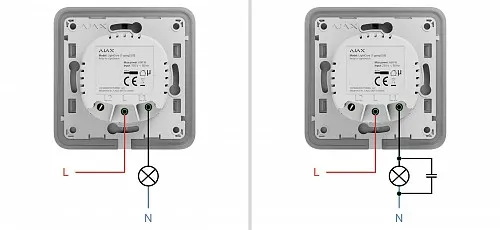

• Protection against incompatible devices : Triggers if lighting devices have insufficient power (up to 5 W). If protection is triggered, LightSwitch turns off power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor

Anti-sabotage protection

• Protection against spoofing : device authentication
• Communication loss detection : from 36 seconds

Power supply

• Power supply voltage : 230 V, 50 Hz
• The device does not need a neutral wire to operate
• Average consumption : up to 200 mW
• Maximum power : 600 W
• Current protection : more than 2.6 A, If protection is triggered, LightSwitch turns off power and sends a notification to Ajax apps
• Temperature protection : more than +60°C. If protection is triggered, LightSwitch turns off power and sends a notification to Ajax apps.

Operating parameters

• Operating temperature range : from –10°C to +40°C
• Operating humidity : Up to 75% with no condensation
• Protection class : IP20
• Form factor of the switch : European type (55)

Weight

• Relay : LightCore (1-gang) — 45.95 g
• Frames :Frame (2 seats) — 16.13 g

Buttons

• SoloButton (1-gang / 2-way) — 44.5 g
• CenterButton (1-gang / 2-way) — 30.97 g
• SideButton (1-gang / 2-way) — 31.56 g

Dimensions

• Relay LightCore (1-gang) — 76.3 × 72.3 × 29.2 mm
• Frames : Frame (2 seats) — 82.75 × 153.48 × 6.3 mm
• SoloButton (1-gang / 2-way) — 82.75 × 82.75 × 10.26 mmSoloButton (2-gang) — 82.75 × 82.75 × 10.26 mm

• CenterButton (1-gang / 2-way) — 82 × 70.53 × 10.26 mm
• SideButton (1-gang / 2-way) — 82 × 76.19 × 10.26 mm
