AJAX

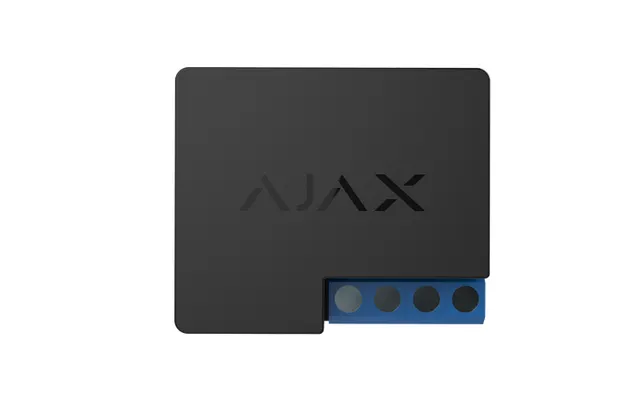

AJAX WallSwitch black
Κωδικός παραγγελίας: 20529EAN: 4823114015434
- Actuating element:Electromagnetic relay
- The service life of the relay:200,000 switching-ons
- Supply Voltage:110 – 230 V AC ± 10% 50/60 Hz
- Voltage protection For 230 V mains:max 253 V, min 184 V
- Maximum load current:13A
- Όλα τα χαρακτηριστικά
73,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors

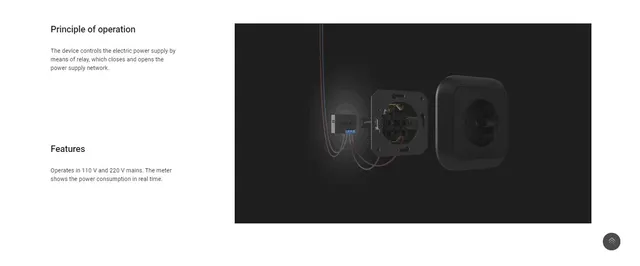

- The device controls the electric power supply by means of relay, which closes and opens the power supply network

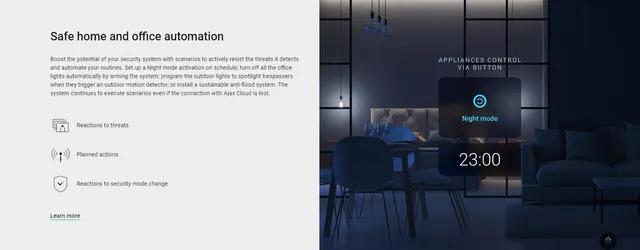

- Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost
Χαρακτηριστικά
- Actuating element
- Electromagnetic relay
- The service life of the relay
- 200,000 switching-ons
- Supply Voltage
- 110 – 230 V AC ± 10% 50/60 Hz
- Voltage protection For 230 V mains
- max 253 V, min 184 V
- Maximum load current
- 13A
- Maximum current protection
- Yes, 13 A
- Power output (resistance load 230 V)
- Up to 3 kW
- Electricity meter function
- Yes
- Power consumption parameters control Yes
- current, voltage, consumed power
- The power consumption of the device in the standby mode
- Less than 1 W⋅h
- Frequency Band
- 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
- Compatibility Operates only
- with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power
- Up to 25 mW
- Modulation
- GFSK
- Radio signal range
- Up to 1,000 m (any obstacles absent)
- Shell protection rating
- IP20
- Operating temperature range
- From 0°C to +64°C
- Maximum temperature protection
- Yes, 65°C
- Operating Humidity
- Up to 75%
- Overall dimensions
- 39 x 33 x 18 mm
- Weight
- 30 g
