AJAX
AJAX ocBridge Plus Wired Integration
Κωδικός παραγγελίας: 20527EAN: 856963007262
- Classification:Receiver of wireless detectors
- Installation method:Indoors
- Compatibility:Wired and hybrid security systems
- Number of security areas:8
- Number of service areas:4
- Όλα τα χαρακτηριστικά
116,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

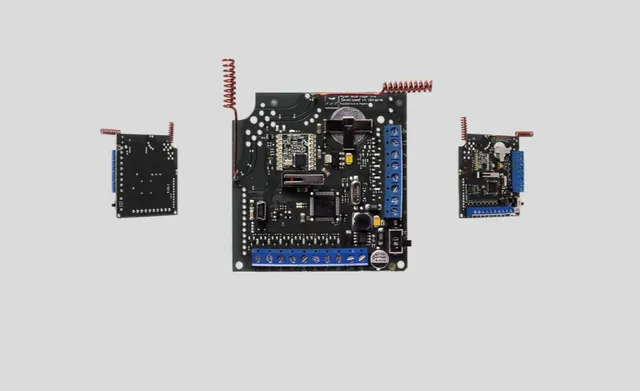

- Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas

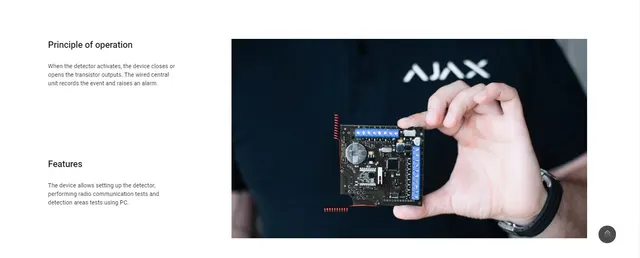

- When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm
- The device allows setting up the detector, performing radio communication tests and detection areas tests using PC

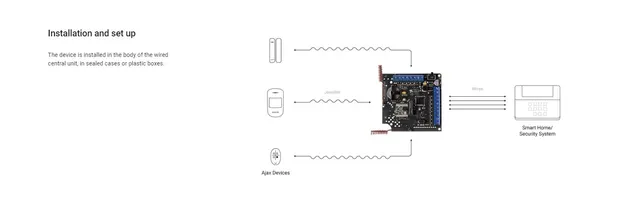

- The device is installed in the body of the wired central unit, in sealed cases or plastic boxes
Χαρακτηριστικά
- Classification
- Receiver of wireless detectors
- Installation method
- Indoors
- Compatibility
- Wired and hybrid security systems
- Number of security areas
- 8
- Number of service areas
- 4
- Loops
- NO/NC, EOL, 2EOL
- Maximum number of detectors
- 99
- Supported devices
- MotionProtect / MotionProtect Plus / CombiProtect / DoorProtect / FireProtect / FireProtect Plus / LeaksProtect / SpaceControl / GlassProtect
- Alarm signal delivery time
- 0.15 s
- Power Supply
- Terminals +/ground
- Power Supply Voltage
- 8 - 14 V DC
- miniUSB
- 5 V (only for set up)
- Jeweller radio technology
- Communication range with detectors — up to 2,000 m in an open space / Two-way communication with detectors
- Operating frequencies
- 868.0 - 868.6 MHz
- Self-adjusting RF output power
- up to 25 mW
- Block encryption based
- AES algorithm
- Device polling period
- 12 - 300 s
- Capability of external antenna connection
- Yes
- Software update feature
- Yes
- Operating temperature range
- From –10°? to +40°?
- Permissible humidity
- Up to 90%
- Anti-sabotage
- Protection against fraud
- Jamming detection
- Tamper
- Setting up and testing
- Via configurator for PC
- Download
- Current firmware version 4.50.0
- Interface
- miniUSB
- Dimensions
- 95 × 92 × 18 mm
- Weight
- 139 g
- Certification
- CE
- Warranty
- Replacement and repair within 24 months of the date of sale
