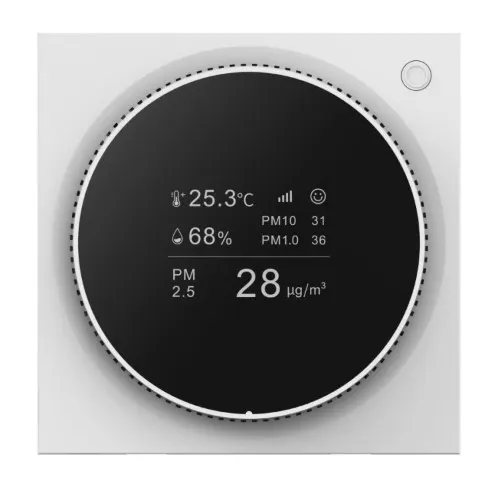

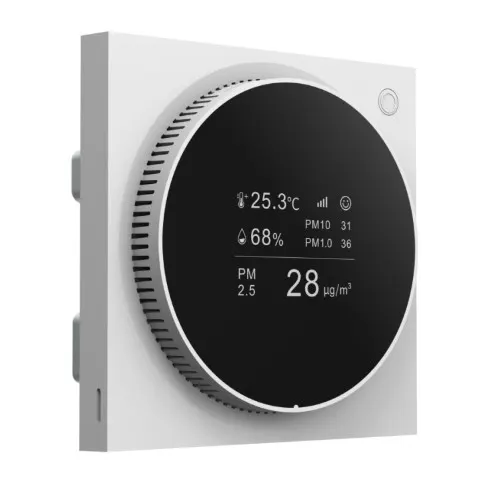

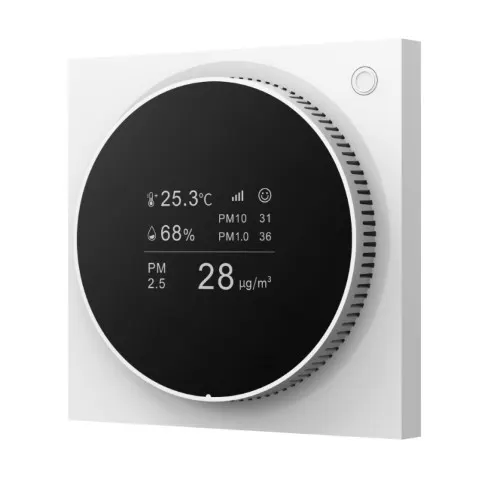

HDL Panel Airkit2 White Pro Air Quality Sensor (temperature,humidity, illuminance, PM2.5, PM1.0 and PM10)
Κωδικός παραγγελίας: 30797
- Rated voltage:30VDC
- Rated current:10mA/30VDC
- Aux. Power:20~30VDC
- Power Consumption (Aux. Power):50mA/24VDC
- Communication protocol:KNX
- Όλα τα χαρακτηριστικά
215,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- The Airkit2 Air is a multifunctional microclimate monitoring sensor designed for KNX-based automation systems. The device provides comprehensive monitoring of indoor air quality and helps maintain a comfortable and healthy living and working environment
- It measures and displays key environmental parameters, including air temperature and humidity, light levels, and PM1.0, PM2.5, and PM10 particle concentrations. All readings are displayed on the integrated screen as numerical values, allowing the user to quickly assess indoor air quality
- The Airkit2 Air KNX transmits data to the smart home system in real time. Based on the information received, scenarios can be automatically triggered, including turning on ventilation, adjusting climate control equipment, and controlling air purifiers or lighting. This allows for maintaining optimal microclimate parameters without user intervention
- Thanks to its integration with the KNX system, the device can be used not only for monitoring but also for intelligent equipment control, implementing automated scenarios, and analyzing environmental data
- This sensor is ideal for homes, offices, hotels, and other commercial properties where air quality monitoring and automatic microclimate control are important
Χαρακτηριστικά
- Rated voltage
- 30VDC
- Rated current
- 10mA/30VDC
- Aux. Power
- 20~30VDC
- Power Consumption (Aux. Power)
- 50mA/24VDC
- Communication protocol
- KNX
- Temperature
- -10.0~55.0°C
- Humidity
- 0~99.9%RH
- Illumination
- 1~999lux
- PM2.5 / PM1.0 / PM10
- 0–999μg/m³, laser diffraction (25±5°C, 50±10%RH, standard test conditions)
- Dimensions
- 86*86*49.5mm
- Screen
- TFT Screen
- Shell material
- Plastic
- Installation method
- 86-type flush-mounted box
