Noyafa

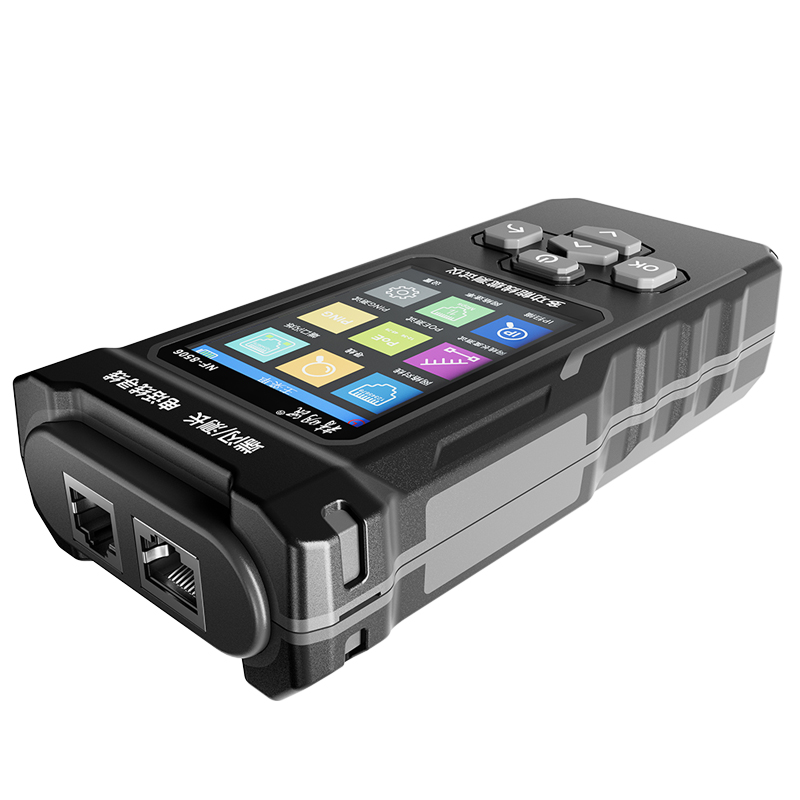

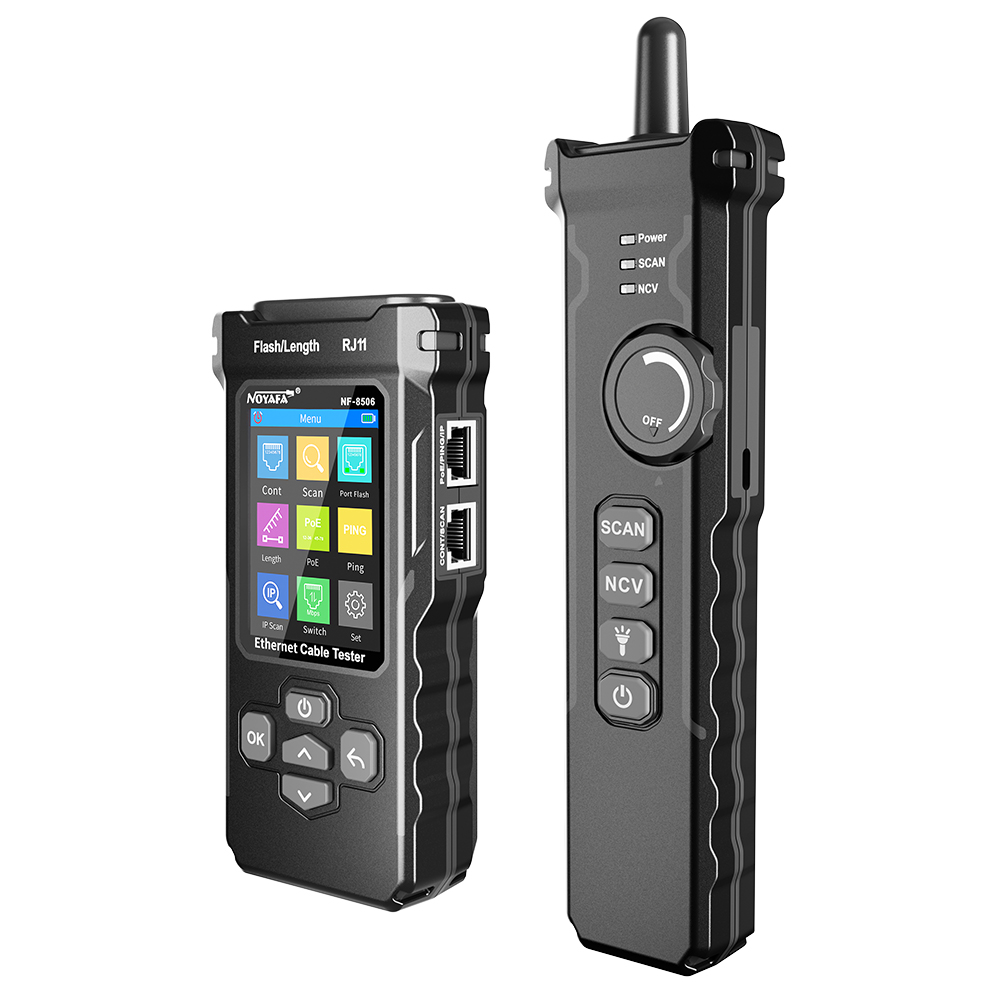

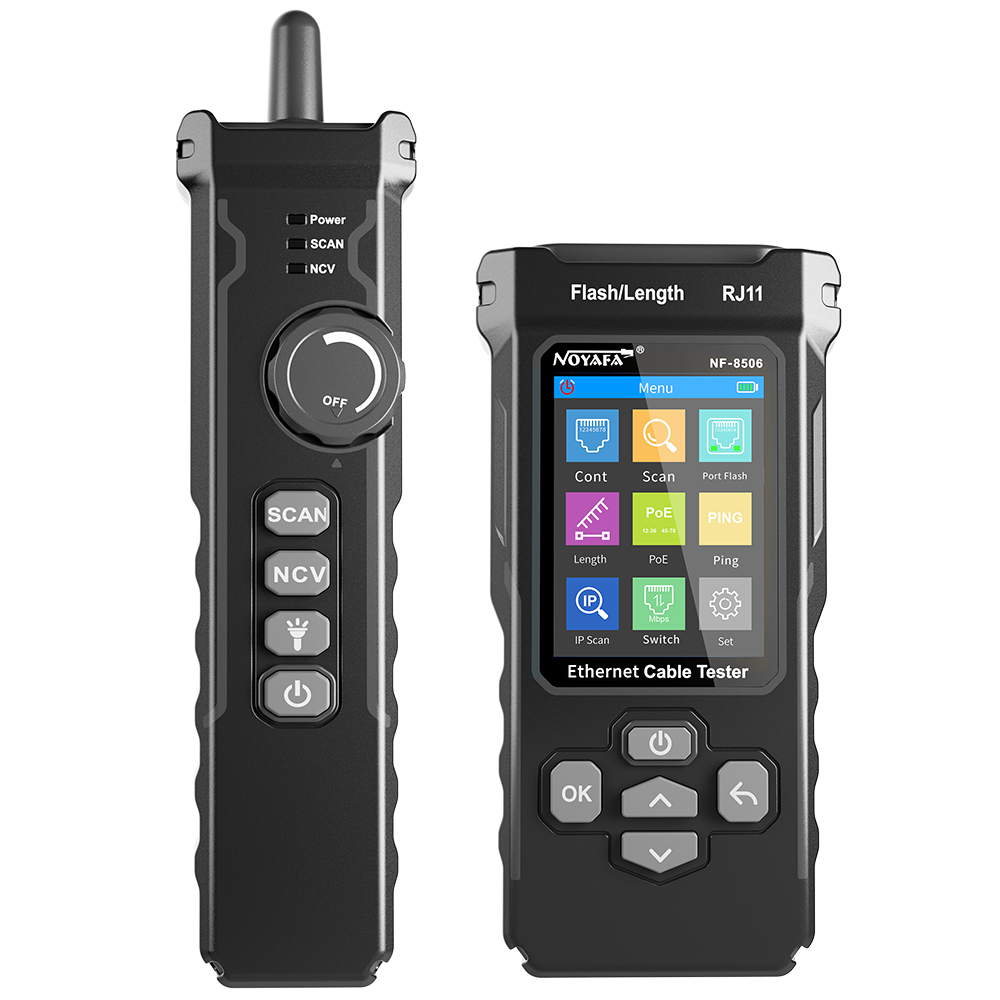

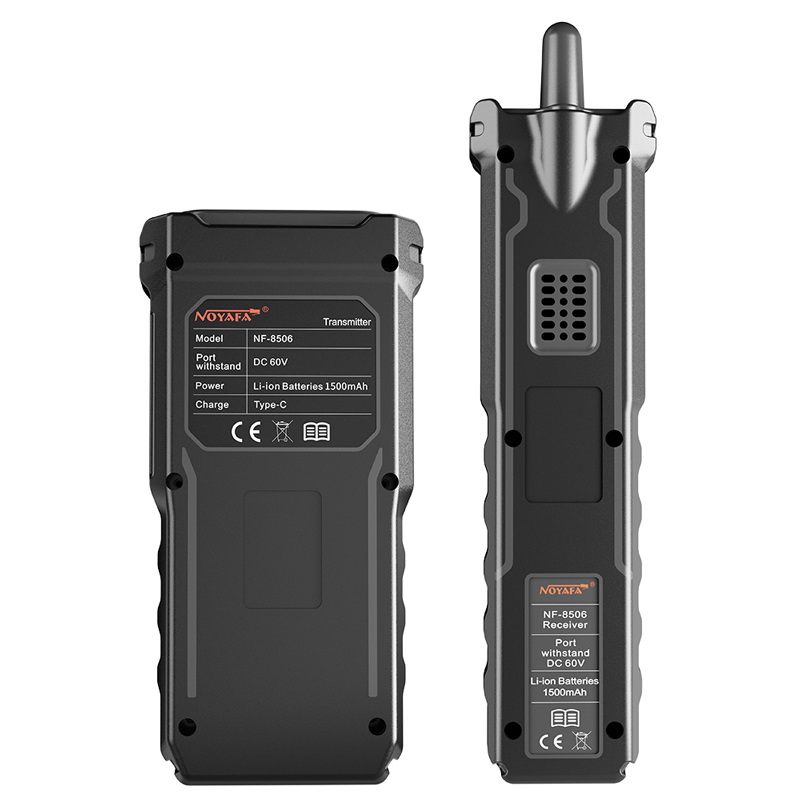

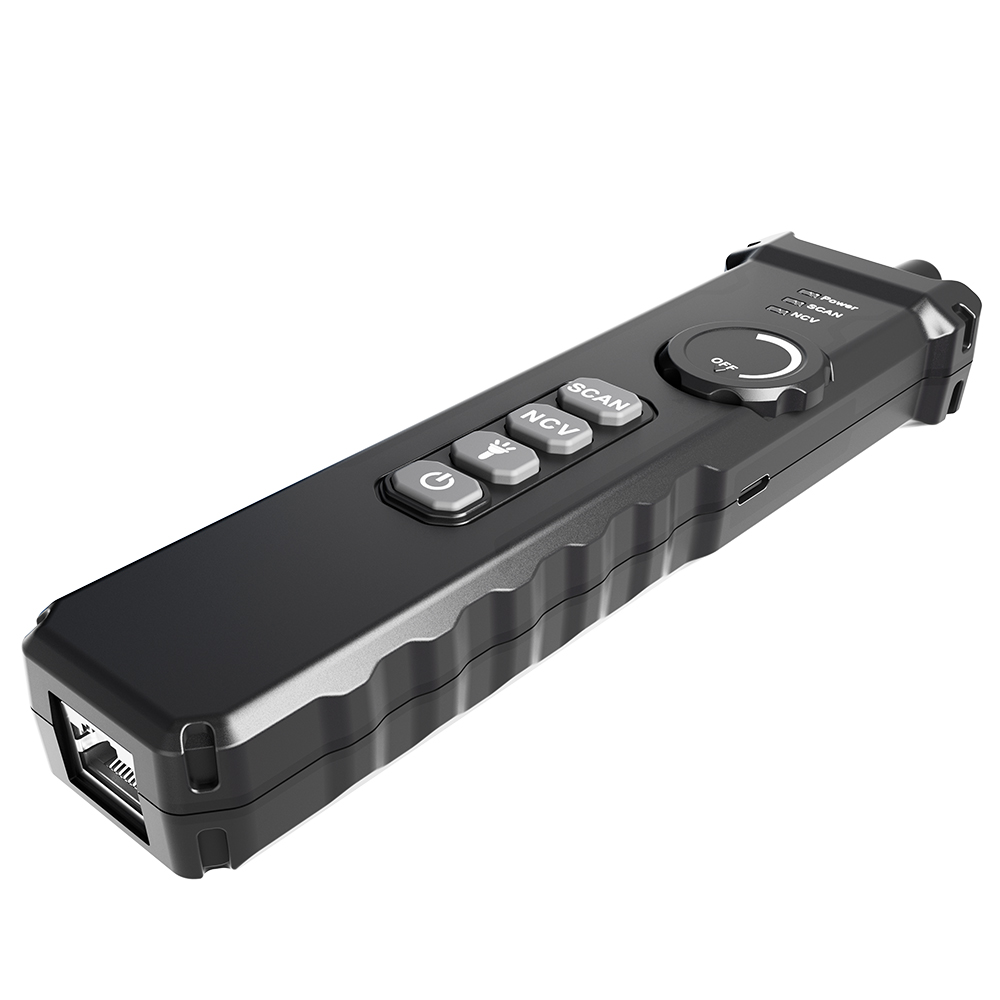

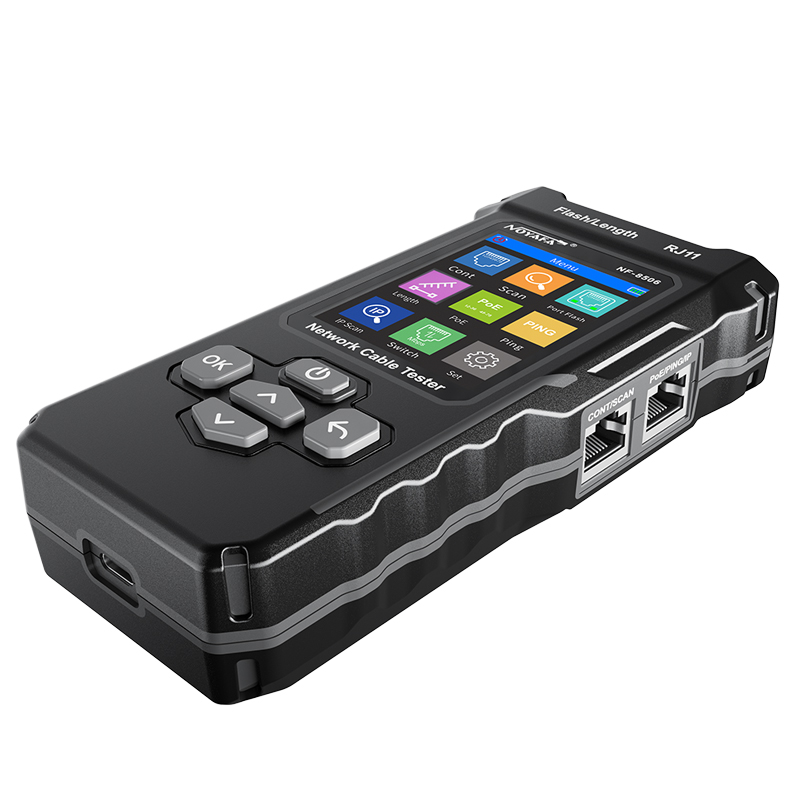

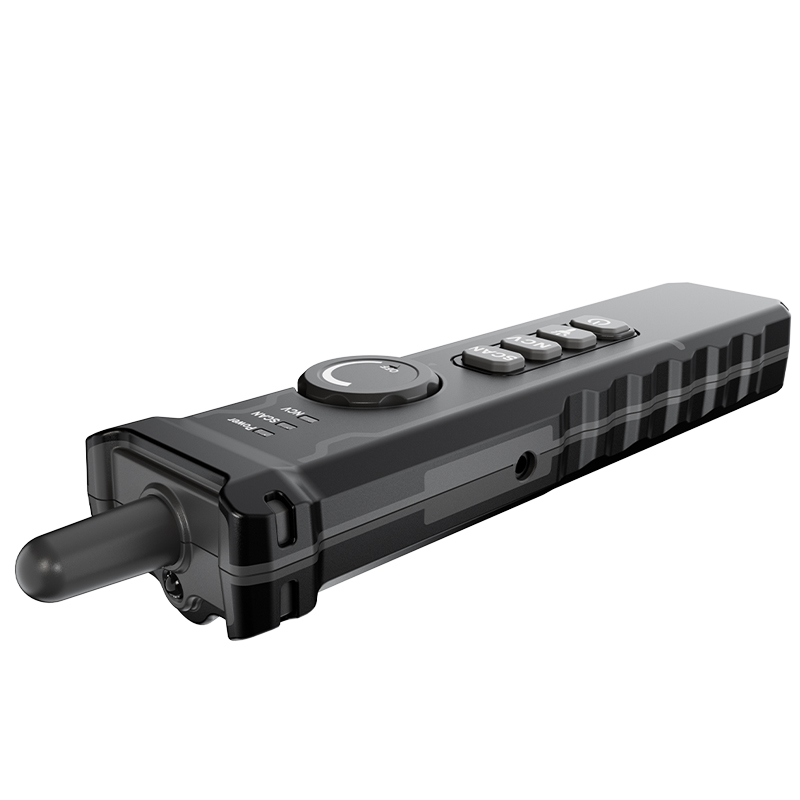

Noyafa Multi-Function Cable Tester with PoE Detection, Cable Length Measurement, Port Flashing, PING Testing & NCV Function NF-8506
Κωδικός παραγγελίας: 25402EAN: 6978759051892
- Cable Type:CAT5, CAT6 (STP & UTP)
- Test with switch directly:Yes
- Max range:600m
- AC filter:Yes
- Test range:DC 5~60V standard / non-standard PoE switch
- Όλα τα χαρακτηριστικά
115,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
Multi-Function Network Cable Tester
- PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
- Measure cable length accurately , the range is 200m.
- Two scan modes selectable: AC filter & Non AC filter
- Test physical status for STP, UTP lan cable.
- Hub blink for locating network port by the flashing port light on Hub / Switch.
Ping & IP & Switch testing function
- Ping test:Check network connectivity
- P Scan:Scan out the IP addresses in use in the switch
- Switch test:Identify the switch type 10M/100M/1000M and the duplex mode of the switch.
Other functions:
- Detect AC voltage presence (50V-1000V).
- Lamp function assists use in dark corners.
Χαρακτηριστικά
- Cable Type
- CAT5, CAT6 (STP & UTP)
- Test with switch directly
- Yes
- Max range
- 600m
- AC filter
- Yes
- Test range
- DC 5~60V standard / non-standard PoE switch
- Breakage location
- Yes
- Voltage display
- Yes
- PSE type
- Mid-span/End-span/AT-4 pairs
- Link speed
- 10M/100M/1000M - Duplex Mode(Full/Half)
- Ping Scan function
- Yes
- IP Scan function
- Yes
- Battery
- 3.7V lithium battery
- Dimensions (LxWxD)
- 200*50*33mm
- Lamp
- Yes
- AC Voltage detecting
- Yes
- Battery Type
- 3.7V lithium battery
