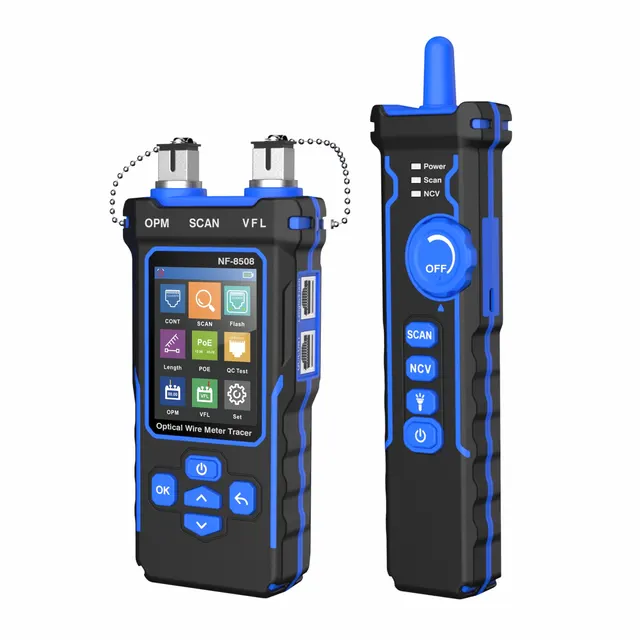

Noyafa Multi-Function Cable Tester with RJ11/RJ45, PoE, Fiber Optic OPM/VFL, NCV & Cable Length Measurement NF-8508
Κωδικός παραγγελίας: 26026EAN: 6978759051113
- Cable Type:CAT5/CAT6
- Voltage protection:60V
- Details of CONT function:Scan Frequency: 455KHz
- Port Flash:√
- Details of Length function:Accuracy: ≤20M+/-1.6M, 20M~100M+/-2.4M, >100M+/-3.2M
- Όλα τα χαρακτηριστικά
115,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Wire mapping & Continuity test: Check Cat5 & Cat6 Cables status. Display length and exact faults like opens, splits, shorts, and crossings on an LCD screen.

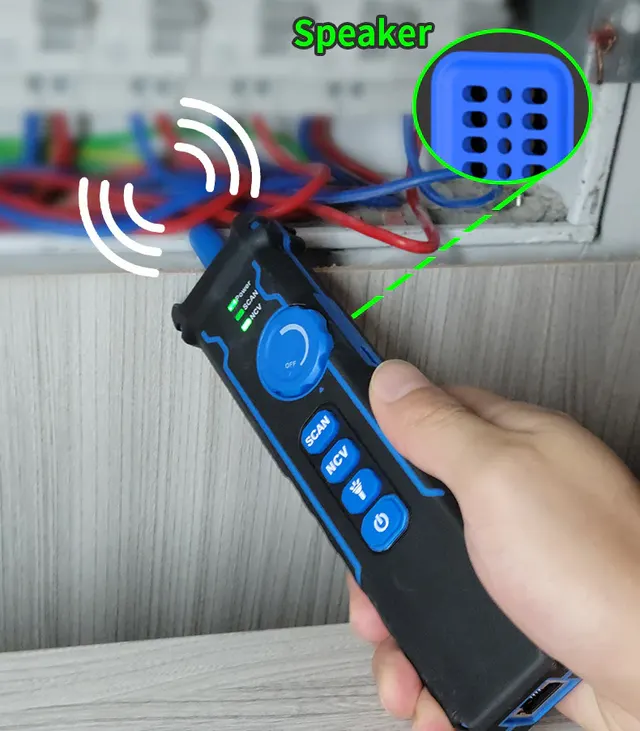

- Cable trace: Adjustable signal strength indicator helps find cables from bundled cables, different rooms, walls, and ceilings. (300 meters/984 feet).
- Length test: Measure the length of CAT5/CAT5e/CAT6 cables up to 200 meters (656 feet). Help prepare the suitable cables for installation.
- Port flash: Sending signals through connected cables to flash ports on 10M/100M/1000M hubs, panels, routers, or switches. Sync frequency flashing on Port & LCD Screen.
- PoE test: Diagnose the PoE network by listing pins of the power supply, and other statuses like voltage, polarity, and PSE(af or at standard).
- Optical Power meter: Measure optical power and loss in single-mode optical fibers.
- Visual Fault Locator: Quickly navigate Fiber break points with visible red lights.
- RJ45 Head Test: Tell if RJ45 connectors are properly crimped.
- NCV: Non-contact voltage detector on Receiver levels up safety and reduces chances of damaging devices.
Χαρακτηριστικά
- Cable Type
- CAT5/CAT6
- Voltage protection
- 60V
- Details of CONT function
- Scan Frequency: 455KHz
- Port Flash
- √
- Details of Length function
- Accuracy: ≤20M+/-1.6M, 20M~100M+/-2.4M, >100M+/-3.2M
- Details of POE function
- Standard/Non Standard - End connection /Middle jumper /Powered by 8 cores - PoE Power supply
- NVL
- 10Mw
- OPM
- 1310/1550/1625 (Single-mode Wavelength)
- Crimping
- RJ45-8 Cores,Min length is 210cm
- Power Supply
- 3.7V 1500mAh Polymer lithium battery
- Charge

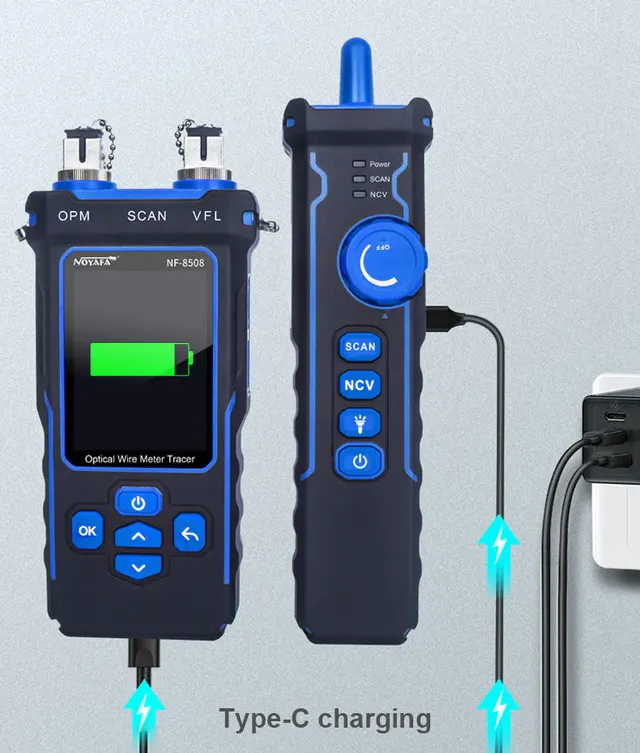

- Type-C connector
- NCV
- √

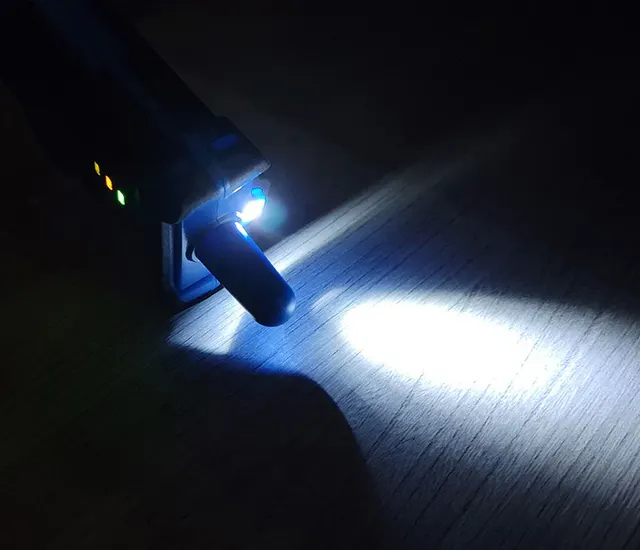

- Lamp
- √
- Lower voltage warning
- √
