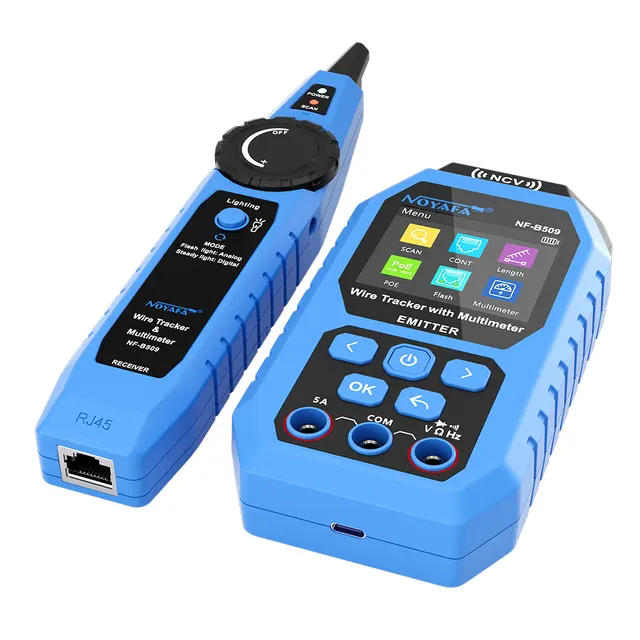

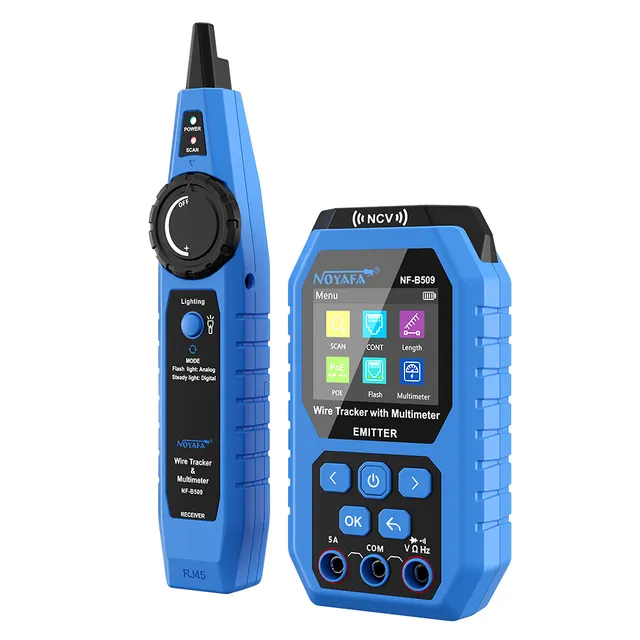

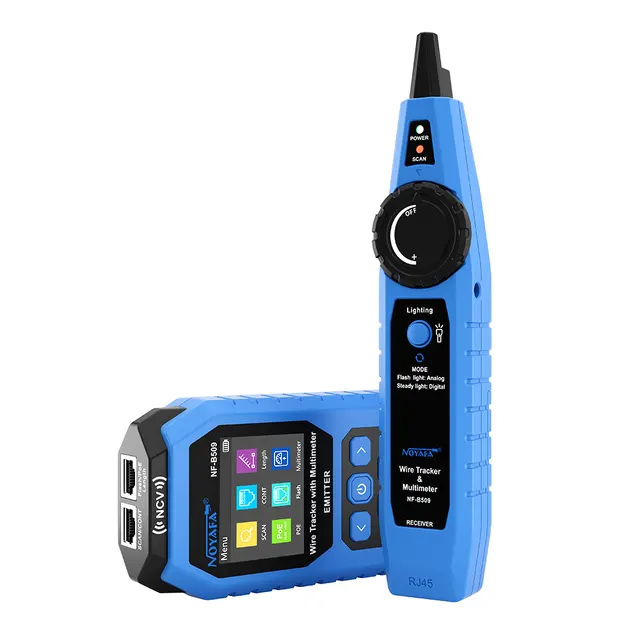

Noyafa Wire Tracker & Digital Multimeter with Cable Length Measurement, PoE Testing, NCV Detection, and LCD Display NF-B509
Κωδικός παραγγελίας: 26027EAN: 6978759051922
- Main functions:Network cable tester, tracer, length meter; PoE test and port locator; digital multimeter and non-contact voltage detector
- Auto-off:Yes
- Continuity tester:2000m or 6,561ft max test range
- Cable length meter:5-200m (±3m) or 16-656ft(±9ft)
- Port locator:10M, 100M, or 1000M
- Όλα τα χαρακτηριστικά
84,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Toolbox for electrical & network engineers: Equip yourself with the versatile NF-B509 – one gadget to diagnose network and electrical components, from wires, cables, outlets, to ports, panels, and switches.
- Network cable tester: Swiftly run continuity checks for RJ45 UTP/STP network cables, identifying wiring issues within seconds.

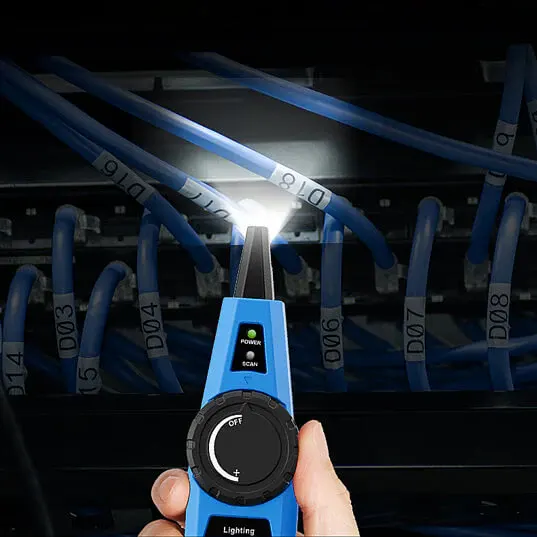

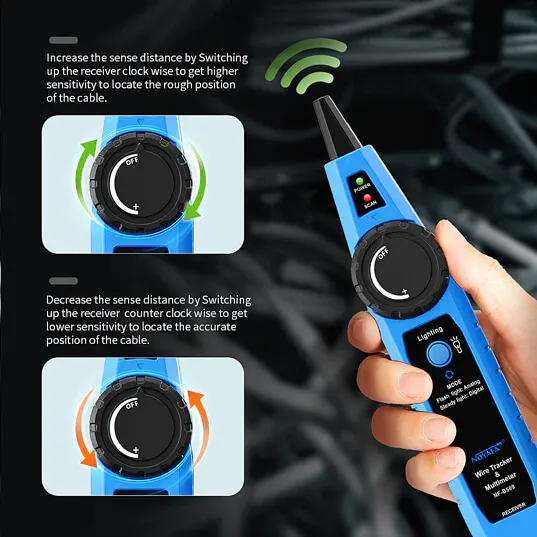

- Wire tracer: Effortlessly trace the location of a network cable using a probe and tone generator, making cable identification across different rooms a breeze.
- Length meter: Measure RJ45 cables easily, eliminating manual measurements and saving valuable time.
- Ethernet tester: Connect and test ethernet status with detailed on-screen information, including voltage providers and standards.
- Router port locator: Locate a port connected with a cable in a router or other ethernet switch. Easily spot the target via a flashing light.

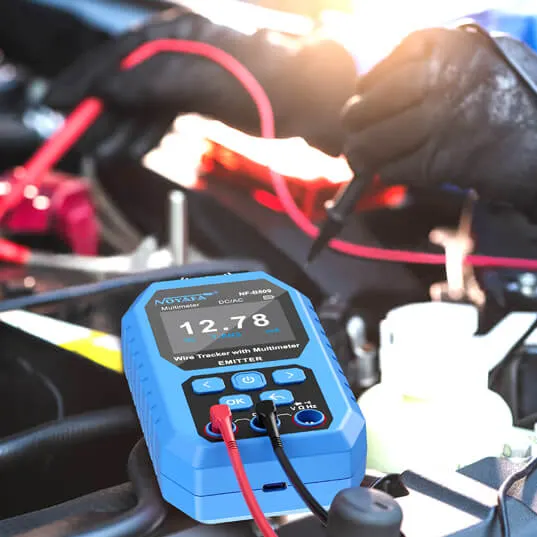

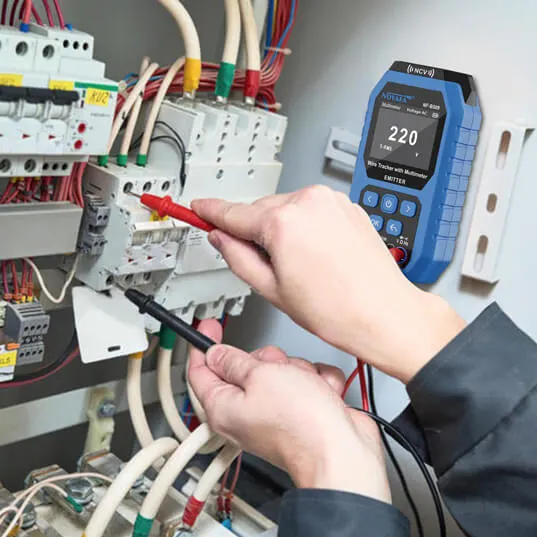

- Digital Multimeter: Connect the tester pins to unveil MF-B509's digital multimeter capabilities. Test the voltage and current (AC/DC) directly. Run electric diagnostics easily and fast.
Χαρακτηριστικά
- Main functions
- Network cable tester, tracer, length meter; PoE test and port locator; digital multimeter and non-contact voltage detector
- Auto-off
- Yes
- Continuity tester
- 2000m or 6,561ft max test range
- Cable length meter
- 5-200m (±3m) or 16-656ft(±9ft)
- Port locator
- 10M, 100M, or 1000M
- PoE
- 4 or 8 pins power tester; voltage test
- NCV
- 0 to 4 levels
- Temperature Measure
- Yes

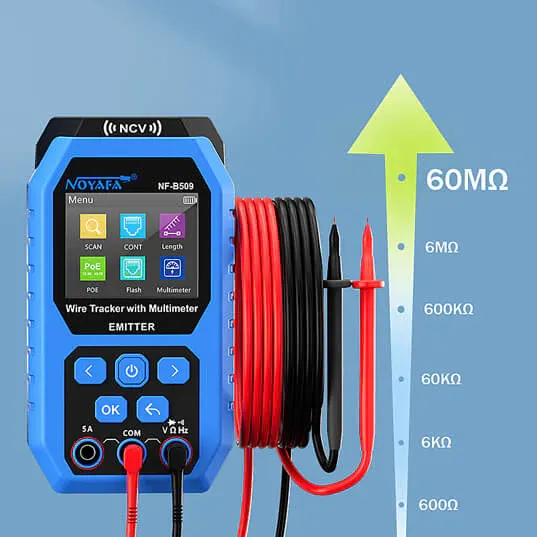

- Resistor Measure
- 600Ω - 60MΩ (±1.0%+5)
- Voltage Measure
- 600mV to 610V (DC: ±0.5%+3 ; AC: ±0.5%+3)
- Current Measure
- 1mA - 3A DC ( ±0.8%+3)
- Power
- DC9V

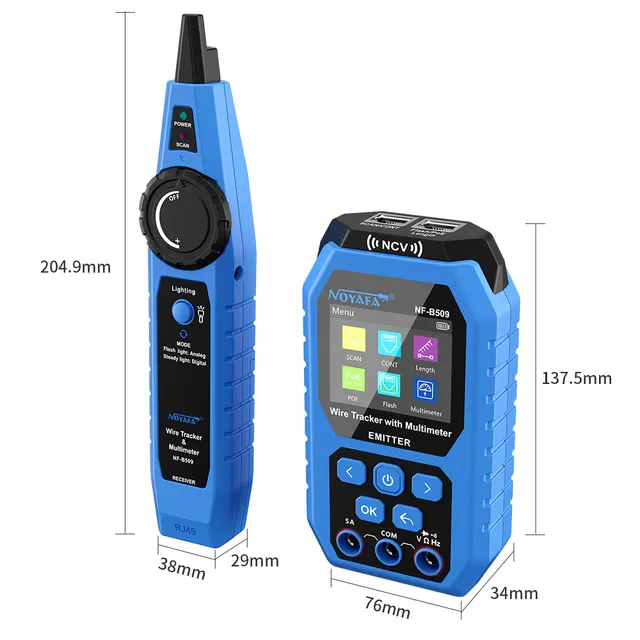

- Dimension
- 204.9*38*29
- LED
- Yes
- Earphone Jack
- Yes
- Max Working Current
- 150mA
