Anycubic SP Kobra S1/S1 Combo Hotbed Components

Order code: 30792

Compatible Models:Anycubic Kobra S1 / Kobra S1 Combo
Maximum Operating Temp:Up to 110<span style="font-family:rubik,sans-serif; font-size:14px">°C</span>
Operating Voltage:24V DC / High-Wattage Heating Trace
Build Plate Compatibility:250 x 250 text mm Spring-Steel PEI Sheets.
Perform Bed Leveling & Z-Offset Calibration:After installing a replacement bed plate, perform a full Automatic Bed Leveling (ABL) and Z-Offset Alignment cycle to account for minute mounting height differences.
All specifications

€87.99incl. VAT

Ships in 2-4 working days

Free pickup from our shop

Description

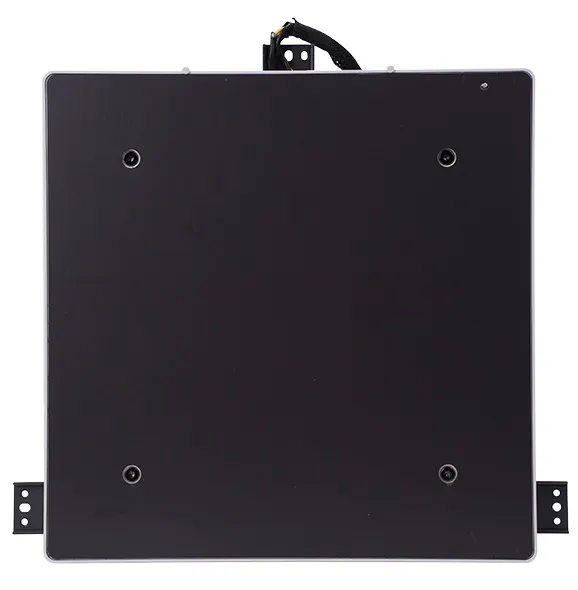

The Anycubic SP Kobra S1 / S1 Combo Heated Bed Assembly (Hotbed): Is the primary thermal build surface platform engineered specifically for the enclosed CoreXY architecture of the Kobra S1 series.It consists of an aluminum alloy heat-spreader sub-plate, a high-power AC/DC heating trace element, a pre-applied flexible magnetic sticker base, integrated thermistor wiring, and bottom thermal insulation to ensure uniform bed temperatures during high-speed printing.
High-Efficiency Uniform Thermal Heating: Designed with dense trace routing across the aluminum plate to heat rapidly up to 110°C without cold spots, preventing first-layer corner warping on engineering polymers (ABS/ASA/PET-CF).
Pre-Applied High-Temp Magnetic Sheet: Factory-laminated with a flexible magnetic base rated for continuous high temperatures, securing spring-steel PEI build plates without shifting under rapid Z/Y motion.
Integrated Bottom Thermal Shielding: Features a bottom thermal insulation cotton backing that redirects heat upward toward the build surface while protecting lower electronics from heat exposure inside the enclosed chamber.
Heavily Reinforced Strain-Relief Harness: Includes a fixed rear wire relief bracket to prevent copper conductor flexing stress and thermal fatigue along the power and thermistor leads.

Compatible Models: Anycubic Kobra S1 / Kobra S1 Combo
Maximum Operating Temp: Up to 110<span style="font-family:rubik,sans-serif; font-size:14px">°C</span>
Operating Voltage: 24V DC / High-Wattage Heating Trace
Build Plate Compatibility: 250 x 250 text mm Spring-Steel PEI Sheets.
Perform Bed Leveling & Z-Offset Calibration: After installing a replacement bed plate, perform a full Automatic Bed Leveling (ABL) and Z-Offset Alignment cycle to account for minute mounting height differences.
Bed PID Tuning: Execute a Bed PID Calibration through the printer's interface so the control board can calibrate heat output cycles for stable, steady-state temperatures.
Verify Cable Clearance: Check that the rear power cable bundle glides freely without pressing against the rear enclosure walls when the Z-axis moves to its lowest point.
Net Item Weight: 1,280 Kg
Bed Assembly Dimensions: 260 x 260 x 22 mm (excluding extended rear cable harness)
Materials: Precision-machined aluminum plate, silicone-insulated power leads, magnetic sheet, insulating foam.
