Anycubic SP Kobra X Series ACE GEN2 Printhead Assembly
Order code: 30767
- Compatibility:Anycubic Kobra X / Kobra X Combo Series
- Stock Nozzle Diameter:0.4 mm
- Compatible Materials:PLA, PETG, ABS, TPU (ACE specific), ASA, Wood/Silk composites.
- Mounting Hardware:4 x M3, 6 x Carriage Screws + Harness Port
- Keep the Silicone Boot Intact:Always make sure the high-temp silicone nozzle boot is seated properly over the hotend block to prevent stray filament bits from accumulating on internal heat sensors.
- All specifications
€177.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

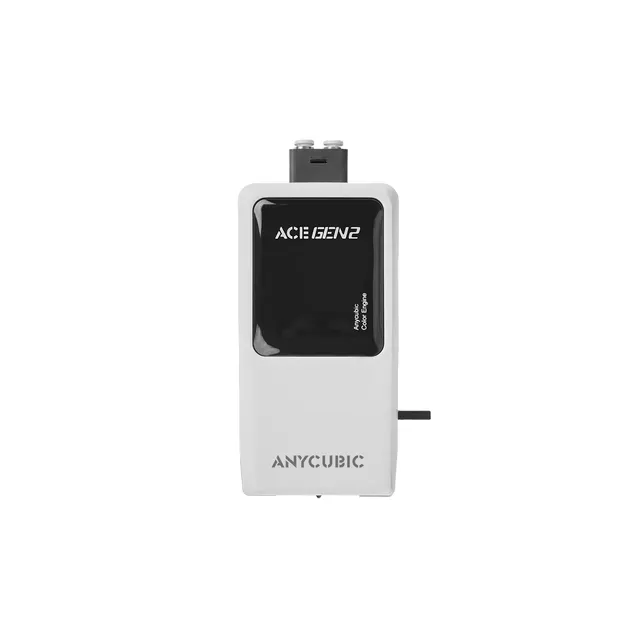

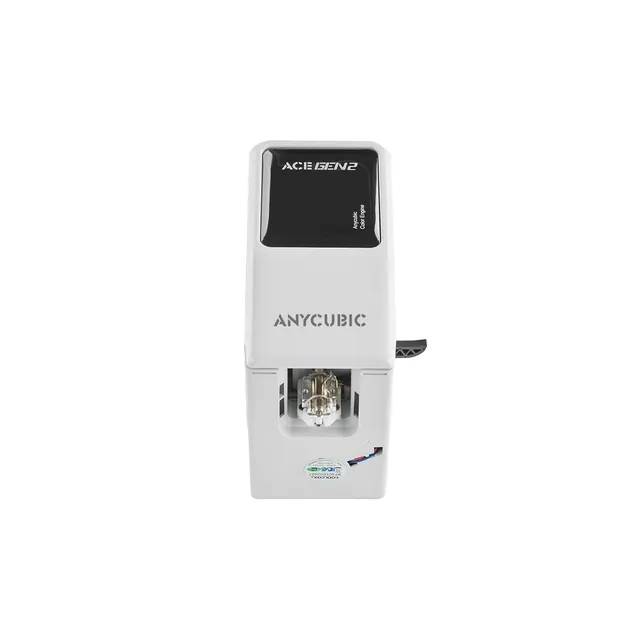

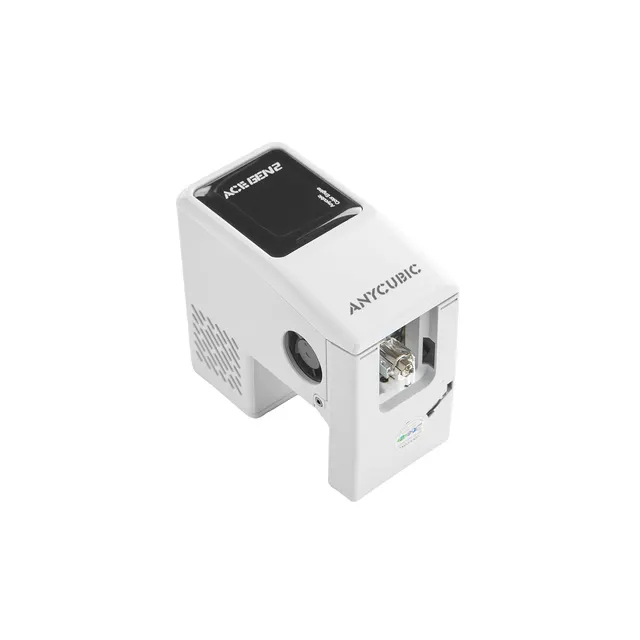

- The Anycubic Kobra X Series ACE GEN2 Printhead Assembly is the complete, drop-in toolhead module designed specifically for the Kobra X series 3D printers. It serves as the primary hub for extrusion, cooling, position sensing, and automatic multi-color/multi-material filament handling when paired with the Anycubic ACE (Color Engine) system.
- Integrated Multi-Filament Feeding: Engineered to work seamlessly with multi-color filament systems (such as the Anycubic ACE 2 Pro). It features dedicated PTFE tube feed channels and a cam gear filament feeding mechanism for rapid loading, unloading, and purging.
- High-Flow Extrusion & Hotend: Equipped with a high-temperature hotend, high-efficiency heat block, and silicone insulating boot. It delivers precise filament melt-rates required for high-speed printing across standard and engineering materials.
- Integrated Sensor Array: Houses internal position detection boards, filament movement/clog sensors, and strain gauge leveling electronics to support automatic Z-offset and bed meshing calibration.
- Dual Cooling System: Features dedicated fans for both hotend heat-break isolation and rapid part cooling directly targeted at the nozzle tip.

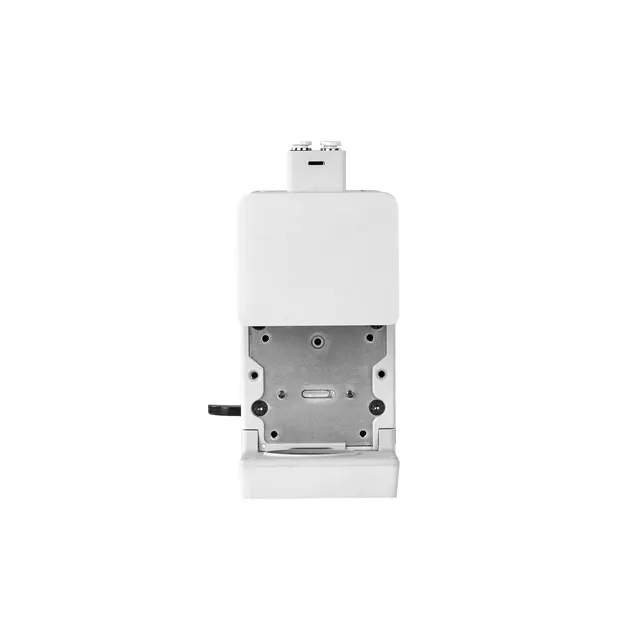

- Direct-Fit Mounting: Secured directly to the X-axis carriage using standard M3 hex screws and quick-connect ribbon/wiring harnesses for easy swap and maintenance.
Specifications
- Compatibility
- Anycubic Kobra X / Kobra X Combo Series
- Stock Nozzle Diameter
- 0.4 mm
- Compatible Materials
- PLA, PETG, ABS, TPU (ACE specific), ASA, Wood/Silk composites.
- Mounting Hardware
- 4 x M3, 6 x Carriage Screws + Harness Port
- Keep the Silicone Boot Intact
- Always make sure the high-temp silicone nozzle boot is seated properly over the hotend block to prevent stray filament bits from accumulating on internal heat sensors.
- Periodic Gear Lubrication
- Every 300–500 printing hours, inspect and apply a small amount of synthetic lube (e.g., Super Lube) to the internal gear/cam shaft mechanism to prevent feeding friction.
