Dahua

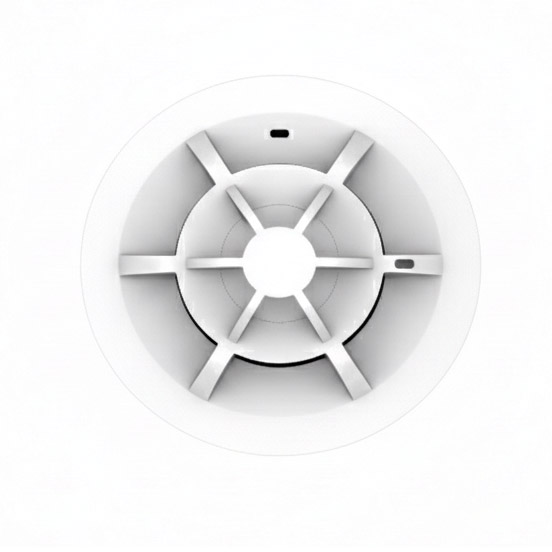

Dahua Conventional Fire Alarm Detector With Base (Smoke & Heat) HY-C135
Order code: 28585
- Power:DC24V
- Current Monitoring current:≤ 70μA
- Alarm current:≤ 15mA
- Indicator:Red LED / Polling : Flash every 6 seconds / Alarm : Remain lit / Fault: Flash every 2 seconds
- Alarm Threshold for Heat:Detection A2R (54°C to 62°C) (129°F to 144°F)
- All specifications
€30.00incl. VAT
Out of stock
Description
- 3W-B multi-sensor smoke and heat detector with two-wire and polarity-free power supply
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- High-performance sensor featuring a split-spectrum optical smoke detector and a sensitive thermistor
- Designed in accordance with EN54-5 and EN54-7 standard
Specifications
- Power
- DC24V
- Current Monitoring current
- ≤ 70μA
- Alarm current
- ≤ 15mA
- Indicator
- Red LED / Polling : Flash every 6 seconds / Alarm : Remain lit / Fault: Flash every 2 seconds
- Alarm Threshold for Heat
- Detection A2R (54°C to 62°C) (129°F to 144°F)
- Wiring
- Two-wire, polarity-free
- Color
- White
- Dimensions (with base)
- Φ 100 mm × 68.7 mm (Φ 3.94" × 2.70")
- Weight
- (with base) 110.0 g (0.243 lb)
- Compliance Standard
- EN54-5, EN54-7
