Dahua

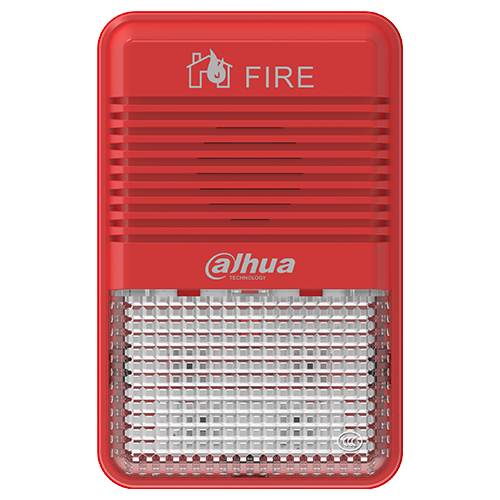

Dahua Conventional Fire Alarm Sounder With Base HY-C151
Order code: 28587
- Working Voltage:DC16V-DC28V
- Rated power:132.6mW
- Current:Standby current: ≤ 400μA / Alarm current: ≤ 8mA
- Alarm Mode:Visual and audible alarm
- Alarm Volume:Modified Tone:4s-5s / Sound Pressure Level:75dB-115dB (A) at 3 m (9.84 ft)
- All specifications
€39.00incl. VAT
Out of stock
Description
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Ultra-low consumption and strong loading capacity
- Loud sound output over 75 dB(A) at 3 meters, accompanied with bright alarm signal
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
Specifications
- Working Voltage
- DC16V-DC28V
- Rated power
- 132.6mW
- Current
- Standby current: ≤ 400μA / Alarm current: ≤ 8mA
- Alarm Mode
- Visual and audible alarm
- Alarm Volume
- Modified Tone:4s-5s / Sound Pressure Level:75dB-115dB (A) at 3 m (9.84 ft)
- Operating Temperature
- –10°C to +55°C (+14°F to +131°F)
- Operating Humidity
- ≤ 95% RH (no condensation)
- Dimensions (with base)
- 125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")
- Weight (with base)
- 118 g (0.26 lb)
- Installation
- Wall Mount
- Compliance Standard
- EN54-3:2014,EN54-23:2010
