Dahua

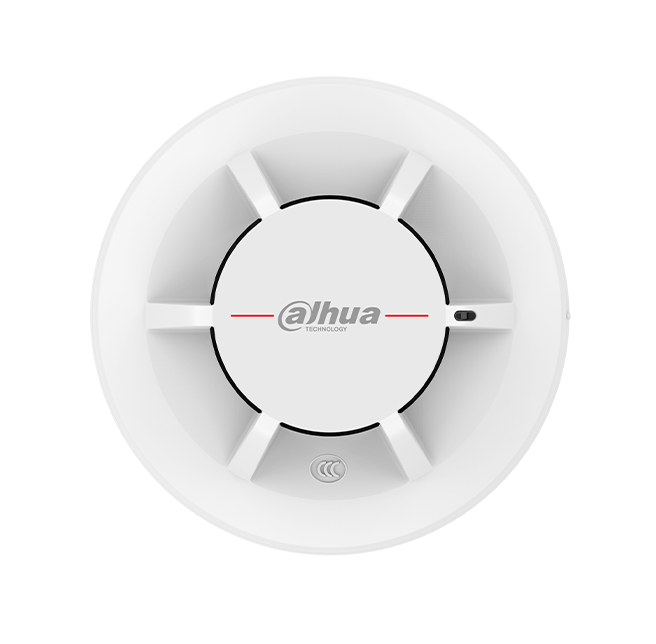

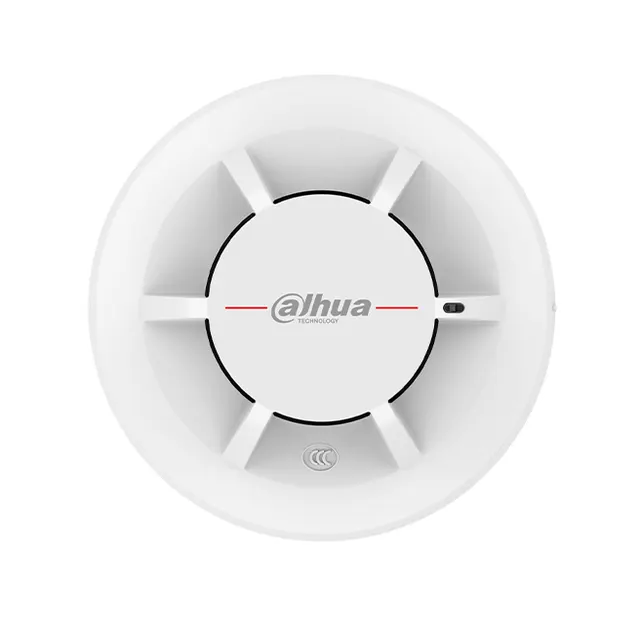

Dahua Conventional Fire Alarm Detector With Base (Smoke) HY-C131
Order code: 28583
- Working Voltage:DC16V-DC28V
- Rated power:5.136mW
- Current:Standby current: ≤ 350μA / Alarm current: ≤ 350μA
- Alarm Mode:Visual alarm
- Coverage Area:H ≤ 4 m (13.12 ft): 50 m2 / 4 m(13.12 ft) ≤ H ≤ 12 m(39.37 ft): 80 m2
- All specifications
€20.00incl. VAT
Out of stock
Description
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Dual photoelectric smoking sensing chamber provides intelligent and accurate detection of smoke
- BLC algorithm automatically adjusts alarm threshold based on the smoke in the chamber, extending cleaning cycle and providing easier maintenance
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
Specifications
- Working Voltage
- DC16V-DC28V
- Rated power
- 5.136mW
- Current
- Standby current: ≤ 350μA / Alarm current: ≤ 350μA
- Alarm Mode
- Visual alarm
- Coverage Area
- H ≤ 4 m (13.12 ft): 50 m2 / 4 m(13.12 ft) ≤ H ≤ 12 m(39.37 ft): 80 m2
- Operating Temperature
- –10°C to +55°C (+14°F to +131°F)
- Operating Humidity
- ≤ 95% RH (no condensation)
- Dimensions (with base)
- Φ100 mm × 54 mm (Φ 3.00" × 2.13")
- Weight (with base)
- 102 g (0.22 lb)
- Installation
- Ceiling Mount
- Compliance Standard
- EN 54-7:2018
