Dahua

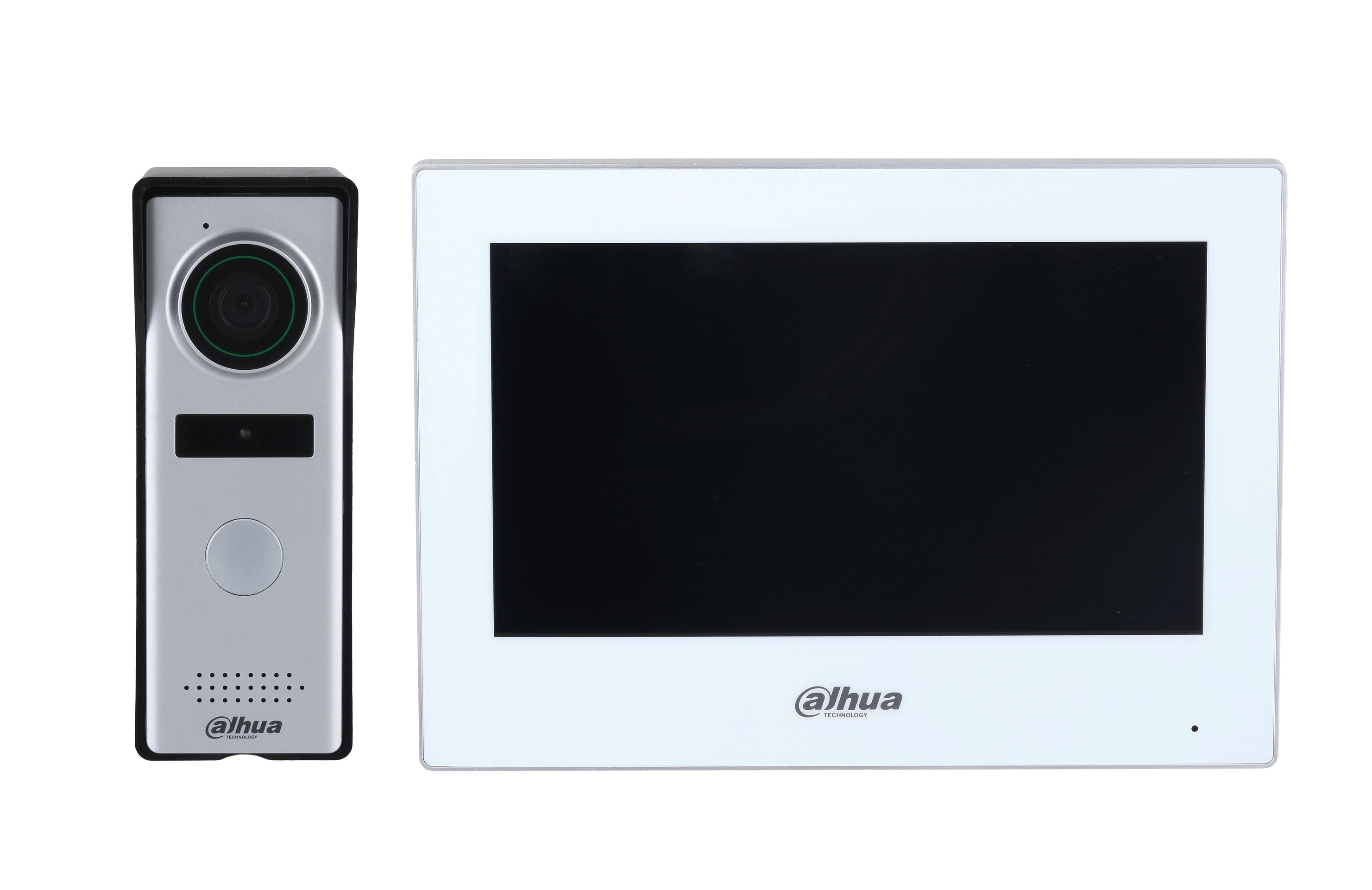

Dahua VD 4-Wire Doorphone KIT With Wi-Fi KTH01
Order code: 26351
- Main Processor:Embedded Processor
- Operating System:Embedded operating system
- Network Protocol:UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
- Interoperability:ONVIF
- Screen Type:Capacitive Touchscreen
- All specifications
€360.00incl. VAT
Out of stock
Description
- 7" TFT capacitive touch screen, 1024 × 600
- Wi-Fi
- H.264 video decoding.Connects to analog and digital VTOs, and analog and digital VTHs
- Connects to IPCs
- Features group call.Supports recording videos and capturing snapshots (SD card is required)
- 6-channel alarm input and 1-channel alarm output
- Supports app management, receiving calls and alarm messages, and monitoring and opening the door
- Standard PoE
- Surface mount
VTO
- Unlock, voice call, video call and volume adjustment
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
- Mechanical button
- IP66
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded operating system
- Network Protocol
- UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
- Interoperability
- ONVIF
- Screen Type
- Capacitive Touchscreen
- Display Screen
- 7" TFT
- Screen Resolution
- 1024 (H) × 600 (V)
- Audio Compression
- G.711a; G.711u; PCM
- Audio Input
- 1 channel to the microphone; pickup distance 0.5 m
- Audio Output
- 1 channel to the speaker
- Audio Mode
- Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)
- Audio Enhancement
- Echo suppression/digital noise reduction
- Audio Bit Rate
- 16 kHz; 16 bit
- Communication Mode
- Analog
- Information Release
- Receive and view text information released by the management center
- Leave Videos
- Yes (SD card needed)
- DND Mode
- Do not disturb period can be set; Do not disturb mode can be set
- Number of Extensions
- Villa: 9 digital extensions and 2 analog extensions / Apartment: 4 digital extensions and 2 analog extensions
- Wi-Fi
- YES
- Wireless Standard
- IEEE802.11b; 802.11g; 802.11n
- Wireless Frequency Range
- 2.4 GHz
- RS-485
- 1
- Alarm Input
- 6
- Alarm Output
- 1
- Power Output
- 1 (12 V, 200 mA)
- Door Bell
- Yes (use the alarm input port)
- Network Port
- 1 × RJ-45 10/100 Mbps Ethernet port
- 4-wire
- 4
- Casing Material
- PC and ABS
- Appearance Color
- White
- Power Supply
- Powered by indoor monitor
- Power Adapter
- Optional
- Installation
- Surface Mount
- Certifications
- CE/FCC
- Product Dimensions
- 189.57 mm × 134.57 mm × 26 mm
- Operating Temperature
- -30°C to +60°C
- Operating Humidity
- 10%RH–95%RH
- Operating Altitude
- 0 m–3000 m
- Power consumption
- ≤ 1W (standby) / ≤ 3W (working)
- Gross weight
- 0.38 kg
- Storage Temperature
- 0 °C to 40 °C
- Storage Humidity
- 30%–75%
- Anti-corrosion Level
- Basic protection
- Operating Environment
- Indoor
- Button Type
- Mechanical
- Camera
- 1.3MP CMOS
- Field of View
- Horizontal: 70° / Vertical: 40°
- WDR
- DWDR
- Illuminator Type
- Auto IR
- Day/Night
- ICR auto switch
- Status Indicator
- 1 indicator light / Green: Power on
- Unlock Mode
- Local unlock
- Exit Button
- 1
- Door Status Detection
- 1
- Color
- Silver
- Accessory
- Rain cover (included)
- Dimensions
- 131.45 mm × 46.00 mm × 33.80 mm
- Protection Grade
- IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Net Weight
- 0.18 kg
