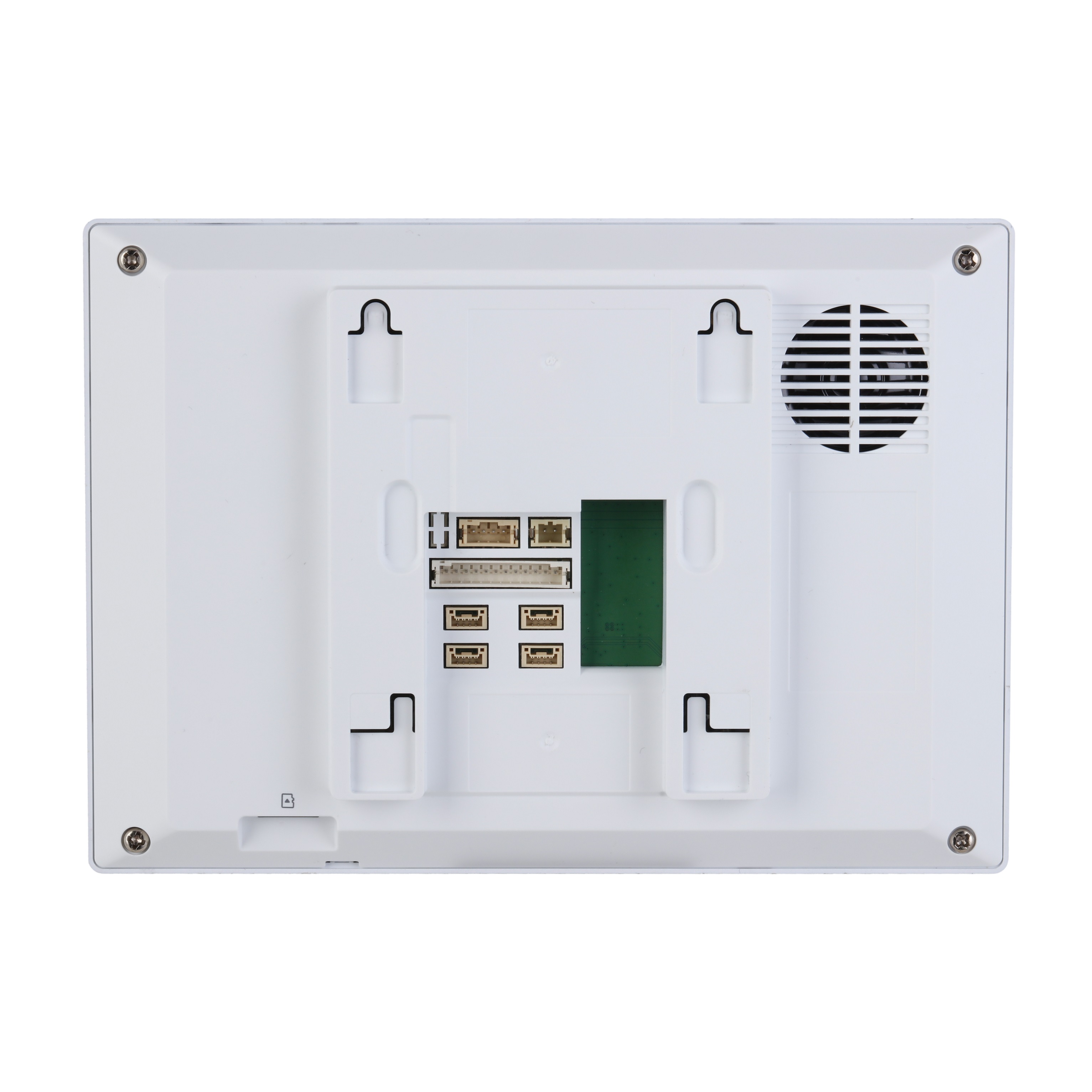

Dahua VD Wi-Fi / 4-Wire Doorphone Monitor VTH2624GW-WP
Order code: 26350
- Main Processor:Embedded Processor
- Operating System:Embedded operating system
- Network Protocol:UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
- Interoperability:ONVIF
- Screen Type:Capacitive Touchscreen
- All specifications
€112.00€265.00incl. VAT
You save €153.00 (58%)
Out of stock
Description
- 7" TFT capacitive touch screen, 1024 × 600
- Wi-Fi
- H.264 video decoding.Connects to analog and digital VTOs, and analog and digital VTHs
- Connects to IPCs
- Features group call.Supports recording videos and capturing snapshots (SD card is required)
- 6-channel alarm input and 1-channel alarm output
- Supports app management, receiving calls and alarm messages, and monitoring and opening the door
- Standard PoE
- Surface mount
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded operating system
- Network Protocol
- UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP
- Interoperability
- ONVIF
- Screen Type
- Capacitive Touchscreen
- Display Screen
- 7" TFT
- Screen Resolution
- 1024 (H) × 600 (V)
- Audio Compression
- G.711a; G.711u; PCM
- Audio Input
- 1 channel
- Audio Output
- Built-in speaker
- Audio Mode
- Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)
- Audio Enhancement
- Echo suppression/digital noise reduction
- Audio Bit Rate
- 16 kHz; 16 bit
- Communication Mode
- Full digital; Analog
- Information Release
- Receive and view text information released by the management center
- Leave Videos
- Yes (SD card needed)
- DND Mode
- Do not disturb period can be set; Do not disturb mode can be set
- Number of Extensions
- Villa: 9 digital extensions and 2 analog extensions / Apartment: 4 digital extensions and 2 analog extensions
- Wi-Fi
- YES
- Wireless Standard
- IEEE802.11b; 802.11g; 802.11n
- Wireless Frequency Range
- 2.4 GHz
- RS-485
- 1
- Alarm Input
- 6
- Alarm Output
- 1
- Power Output
- 1 (12 V, 200 mA)
- Door Bell
- Yes (use the alarm input port)
- Network Port
- 1 × RJ-45 10/100 Mbps Ethernet port
- 4-wire
- 4
- Casing Material
- PC and ABS
- Appearance Color
- White
- Power Supply
- 12 VDC, 1 A / Standard PoE
- Power Adapter
- Optional
- Installation
- Surface Mount
- Certifications
- CE
- Product Dimensions
- 189.57 mm × 134.57 mm × 26 mm
- Operating Temperature
- –10 °C to +55 °C
- Operating Humidity
- 10%–90% (RH)
- Operating Altitude
- 0 m–3000 m
- Power consumption
- ≤3.8 W (standby), ≤8.9 W (working)
- Gross weight
- 604 g
- Storage Temperature
- 0 °C to 40 °C
- Storage Humidity
- 30%–75%
- Anti-corrosion Level
- Basic protection
- Operating Environment
- Indoor
