AJAX

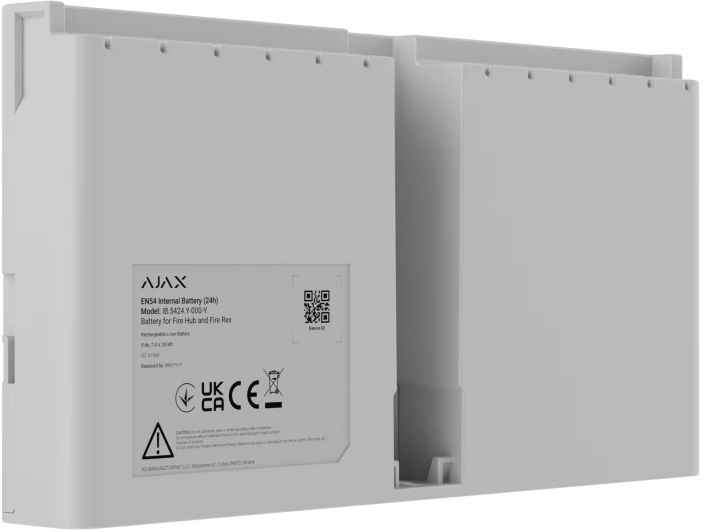

Ajax EN54 Fire Detection Internal Battery For Hub/Rex (24h) White
Order code: 29478EAN: 4823114073281
- Battery:4 × 18650 / Rechargeable Li-ion battery.
- Nominal Voltage:7.4 V⎓
- Capacity:5 Ah
- Maximum load current:3.2 A
- End-of-life battery voltage:6 V⎓
- All specifications
€127.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- EN54 Internal Battery is a rechargeable Li-ion battery for powering EN54 Fire Hub Jeweller or EN54 Fire ReX Jeweller.
- EN54 Internal Battery (24h). It provides up to 24 hours of autonomous operation for the device and has a capacity of 5 Ah.
Specifications
- Battery
- 4 × 18650 / Rechargeable Li-ion battery.
- Nominal Voltage
- 7.4 V⎓
- Capacity
- 5 Ah
- Maximum load current
- 3.2 A
- End-of-life battery voltage
- 6 V⎓
- Average power consumption with LTE only
- 50 mA · h
- Average power consumption with Ethernet only
- 120 mA · h
- Average power consumption with Wi-Fi only
- 70 mA · h
- Average power consumption with Ethernet and Cellular (standby)
- 102 mA · h
- Average power consumption with LTE, Wi-Fi, and Ethernet
- 140 mA · h
- Dimensions
- 166 × 87 × 23 mm
- Weight
- 270 g
- Operating temperature range
- from −10 °C to +40 °C
- Operating Humidity
- up to 75% non-condensing
- Protection class
- IP20
- Color
- White
- Revision
- 2
