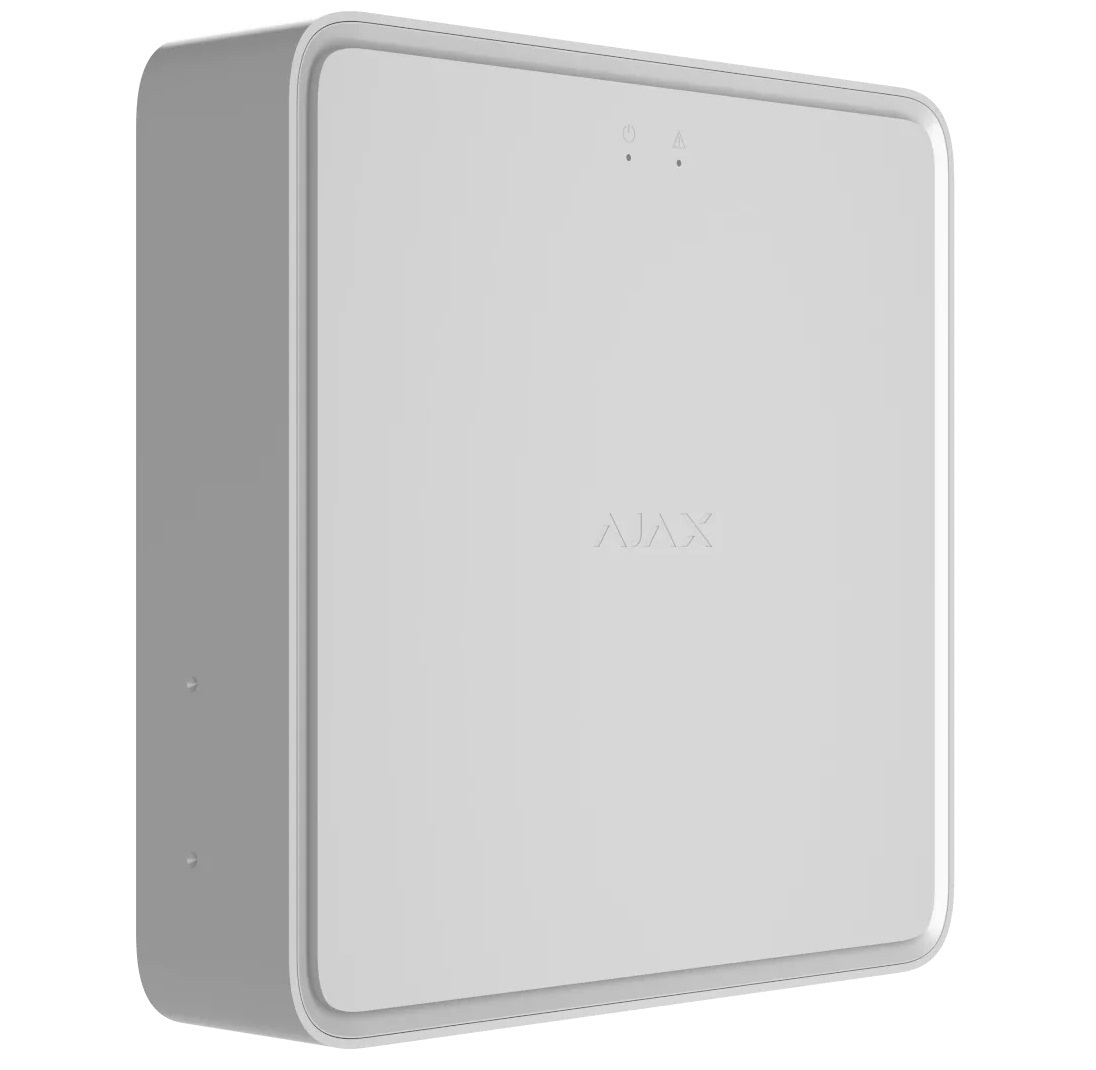

Ajax EN54 Fire Detection Rex White
Ajax EN54 Fire Detection Rex White

Ajax EN54 Fire Detection Rex White

€501.00
  • EN54 Fire ReX Jeweller expands the range of a wireless network and delivers a stable connection for EN54 Line devices across a large or complex facility. The range extender connects to the control and indicating equipment (CIE) wirelessly or via Ethernet, delivering reliable communication through steel and concrete. Up to 5 range extenders can operate within one Ajax system, and each supports any combination of devices for fire safety, automation, and intrusion protection. Mix devices within the CIE's limit to leverage the benefits of the integrated system, including visual verification of alarms.
Specification
  • up to 199
  • Proprietary wireless communication technology to transmit commands, alarms, and events.
  • up to 20 mW / Automatic power control to reduce power consumption and radio interference.
  • GFSK
  • up to 1,800 m / Between the CIE and a radio signal range extender, or between a range extender and connected devices (in an open space). Maximum range depends on the connected device.
  • All stored and transmitted data is protected by block encryption featuring a dynamic key.
  • To prevent radio interference and jamming.
  • 1 8P8C socket / Up to 100 Mbps.
  • 0.3 s
  • 18 s
  • 10 s
  • green
  • yellow
  • The special tool is used to remove the front panel from the range extender.
  • 2 / Notifications about the fault on attempts to detach the device from the surface or remove the mounting panel.
  • Device authentication
  • after 36 s / Detection time depends on Jeweller settings.
  • 100–240 V, 50/60 Hz / Up to 0.48 A of mains power consumption.
  • 7.4 V⎓, 5 Ah/10 Ah / On a rechargeable Li-ion battery (not included in the complete set): EN54 Internal Battery (24h) or EN54 Internal Battery (72h).
  • 80 mA
  • 105 mA
  • 6 V⎓
  • 6.2 V⎓
  • 6 V⎓ / Device is switched off.
  • 8 V⎓
