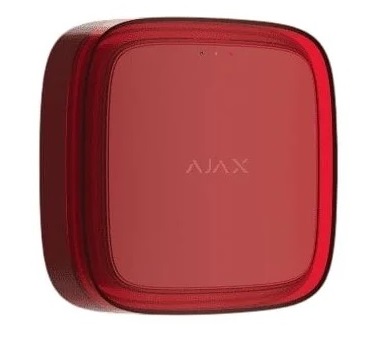

Ajax EN54 Fire Detection Strobe (VAD) Red
Ajax EN54 Fire Detection Strobe (VAD) Red

Ajax EN54 Fire Detection Strobe (VAD) Red

€249.00
  • EN54 FireProtect (VAD) Jeweller is a wireless addressable visual fire alarm device (VAD). The device complies with EN 54 requirements and ensures alarm recognition in various environments, including noisy areas. Visual indication makes the alarm perceptible to people with hearing impairments.
  • EN54 FireProtect (VAD) Jeweller operates as part of an Ajax system and communicates with control and indicating equipment (CIE) via secure Jeweller radio protocol. The communication range with the CIE is up to 1,700 m in an open space.
Specification
  • Proprietary wireless communication technology to transmit commands, alarms, and events.
  • up to 20 mW / Automatic power control to reduce power consumption and radio interference.
  • GFSK
  • up to 1,700 m / Between the device and control and indicating equipment (CIE) or a range extender in an open space.
  • All stored and transmitted data is protected by block encryption featuring a dynamic key.
  • To prevent radio interference and jamming.
  • light / LED frame.
  • 90 ms ON / 1,910 ms OFF (cycle duration: 2,000 ms; frequency: 0.5 Hz)
  • To check the visual alarm signal to ensure fire alarm signals are visible in the premises.
  • Fault notification when an attempt is made to remove the device from the mounting panel.
  • to secure the device on the SmartBracket mounting panel / When locked, the lock secures the device and prevents it from being removed without a special tool.
  • Device authentication
  • after 36 s / Detection time depends on Jeweller settings.
  • 4 × CR123A / Pre-installed.
  • To replace the batteries, turn the battery compartment cover counterclockwise.
  • Prevents device damage if the batteries are put in incorrectly.
  • Huiderui CR123A; 3 V; 1,600 mAh, LiMnOâ‚‚
  • up to 5 years
  • 145 × 145 × 51 mm
  • 509 g
  • from –10 °C to +60 °C
  • Up to 80%
  • IP54
  • UL 94 V-0
  • Red
  • EN54 FireProtect (VAD) Jeweller / 4 × CR123A battery (pre-installed) / SmartBracket mounting panel / Installation kit / Quick start guide
  • 1
