AJAX

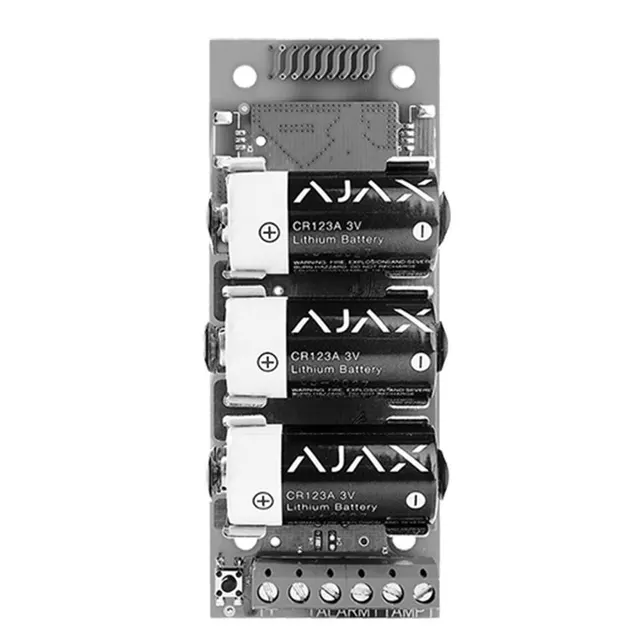

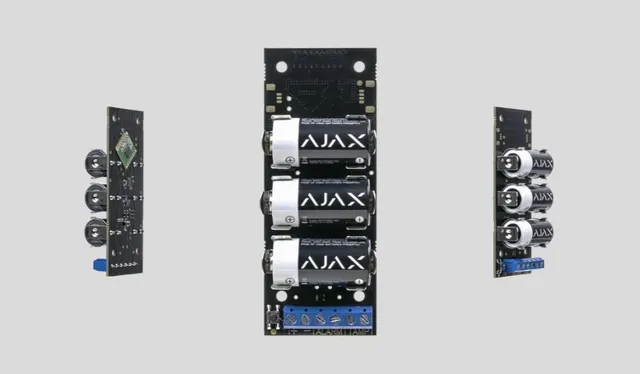

AJAX Transmitter Wireless Integration
Κωδικός παραγγελίας: 20528EAN: 4823114015489
- Connecting a detector:Alarm and Tamper (NO/NC) terminals
- Mode for processing alarm signals from the detector:Pulse or Bistable
- Power:3 x CR123A, 3V batteries
- Capability to power the connected detector:Yes, 3.3V
- Protection from dismounting:Accelerometer
- Όλα τα χαρακτηριστικά
83,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system

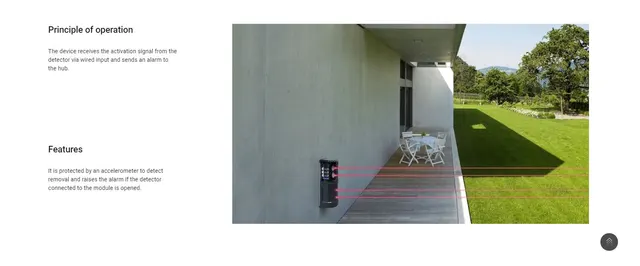

- The device receives the activation signal from the detector via wired input and sends an alarm to the hub
- It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened
Χαρακτηριστικά
- Connecting a detector
- Alarm and Tamper (NO/NC) terminals
- Mode for processing alarm signals from the detector
- Pulse or Bistable
- Power
- 3 x CR123A, 3V batteries
- Capability to power the connected detector
- Yes, 3.3V
- Protection from dismounting
- Accelerometer
- Frequency Band
- 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales region
- Compatibility
- Operates only with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power
- Up to 20 mW
- Modulation
- GFSK
- Communication range
- Up to 1,600 m (any obstacles absent)
- Ping interval for the connection with the receiver
- 12–300 sec
- Operating Temperature
- From -25°? to +50°?
- Operating Humidity
- 1 Up to 75%
- Dimensions
- 100 x 39 x 22 mm
- Weight
- 74 g
