Anycubic

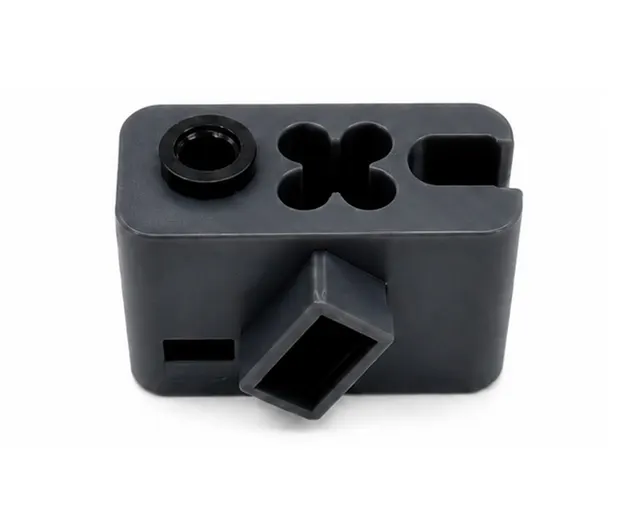

Anycubic SP Kobra 3 max/combo Quick-connect fitting housing
Order code: 30780
- Compatible Models:Anycubic Kobra 3 / Kobra 3 Combo / Kobra 3 Max
- Tubing Compatibility:Standard 4mm 2mm ID PTFE Guide Tubes.
- Filament Compatibility:1.75mm (PLA, PETG, ABS, TPU, ASA, Composites)
- Material:High-density injection-molded polymer with brass/stainless-steel pneumatic lock insert.
- Releasing the PTFE Tube:To remove a tube without damaging the housing, press the outer collet ring down firmly toward the body before pulling the PTFE tube upward.
- All specifications
€4.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- The Anycubic Kobra 3 Series / Kobra 3 Max Quick-Connect Fitting Housing: is the pneumatic PTFE tube guide and retention socket assembly mounted on the top feed entrance of the printhead toolhead and multi-color Filament Hub/ACE Pro feed lines.Its primary function is to securely lock the 2mm x 4mm PTFE reverse-bowden guide tubes in place with a spring-loaded collet, preventing the tube from sliding out or slipping during aggressive filament retractions and rapid printhead movements.
- Push-to-Connect Retention: Houses internal stainless-steel lock teeth and a spring-loaded release collet that grips the outer diameter of 4 mm PTFE tubing firmly without crushing the inner filament bore.
- Low-Friction Filament Path: Features a smooth internal funnel that guides 1.75 mm filament straight through from the external feed tube into the extruder drive gears without snagging.
- Vibration & Strain Relief: Secures the PTFE entry point against structural strain caused by high-acceleration directional changes during 600 mm/s printing speeds.
- Modular Snap/Screw Mounting: Designed as a compact, direct-replacement housing that secures directly onto the toolhead top shell or filament hub casing.
Specifications
- Compatible Models
- Anycubic Kobra 3 / Kobra 3 Combo / Kobra 3 Max
- Tubing Compatibility
- Standard 4mm 2mm ID PTFE Guide Tubes.
- Filament Compatibility
- 1.75mm (PLA, PETG, ABS, TPU, ASA, Composites)
- Material
- High-density injection-molded polymer with brass/stainless-steel pneumatic lock insert.
- Releasing the PTFE Tube
- To remove a tube without damaging the housing, press the outer collet ring down firmly toward the body before pulling the PTFE tube upward.
- Inspect for Tube Wear
- If a PTFE tube keeps slipping out under retraction, trim 5 mm cleanly off the end of the PTFE tube with a sharp tube cutter so the internal metal teeth have a fresh surface to grip.
