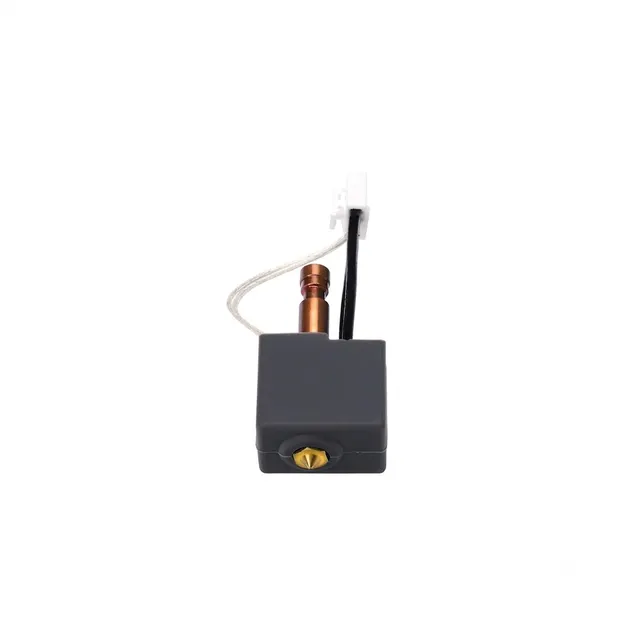

Anycubic SP Kobra S1/S1 Combo Quick Release Hotend with 0.4mm Nozzle

Order code: 30789

Compatible Models:Anycubic Kobra S1 / Kobra S1 Combo
Nozzle Diameter:0.4 mm (Standard)
Maximum Operating Temp:Up to <span style="font-family:rubik,sans-serif; font-size:14px">300°C</span>
Supported Filaments:PLA, PETG, ABS, TPU, ASA, PET-CF, PA-CF
Materials:Plated copper / aluminum heater block, titanium/copper bi-metal throat tube, brass nozzle, silicone sock.
All specifications

€27.99incl. VAT

Out of stock

Description

The Anycubic SP Kobra S1 / S1 Combo Quick Release Hotend with 0.4mm Nozzle: is an updated modular printhead melt assembly engineered for tool-free, rapid hotend swaps.Designed specifically to handle the elevated thermal and flow demands of enclosed high-speed CoreXY printing (up to 600 mm/s), this assembly unifies the high-power heating block, precision thermistor, bi-metal throat tube, pre-installed 0.4 mm brass nozzle, and thermal silicone sock into a single quick-latch cartridge.
Tool-Free Quick Release Latch: Allows full hotend swapping in seconds without needing to unscrew fasteners, disconnect individual delicate sensor wires, or hot-tighten nozzles.
Integrated 0.4 mm Standard Flow Nozzle: Comes pre-fitted and factory-sealed with a standard 0.4 mm orifice diameter to eliminate molten filament leakage between the nozzle seat and heat break.
Bi-Metallic Heat Break Technology: Combines a titanium alloy thermal break section with a high-conductivity copper block to sharply divide the cold sink from the hot melt zone, preventing heat creep clogs.
Rapid High-Wattage Heating: High-output ceramic heater core ramps temperatures up to 300°C rapidly for consistent volumetric extrusion during fast multi-color purges.

Specifications

Compatible Models: Anycubic Kobra S1 / Kobra S1 Combo
Nozzle Diameter: 0.4 mm (Standard)
Maximum Operating Temp: Up to <span style="font-family:rubik,sans-serif; font-size:14px">300°C</span>
Supported Filaments: PLA, PETG, ABS, TPU, ASA, PET-CF, PA-CF
Materials: Plated copper / aluminum heater block, titanium/copper bi-metal throat tube, brass nozzle, silicone sock.
Always Perform Hotend PID Calibration: Run a Hotend PID Tuning from the Kobra S1's setup menu immediately after installing a new unit to prevent temperature overshoot or thermal runaway alerts.
