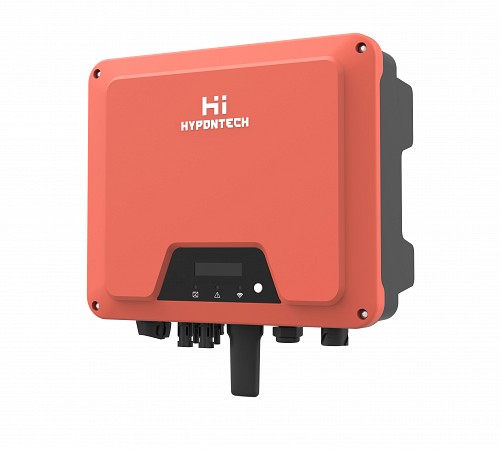

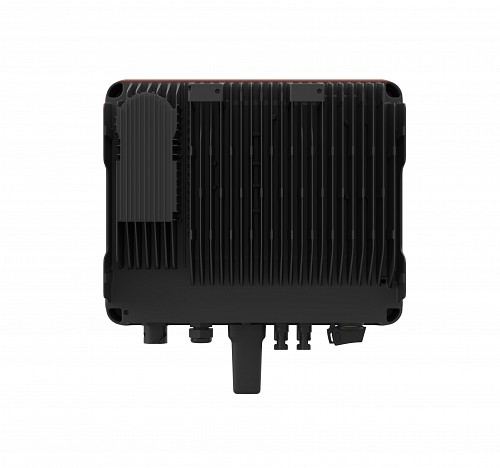

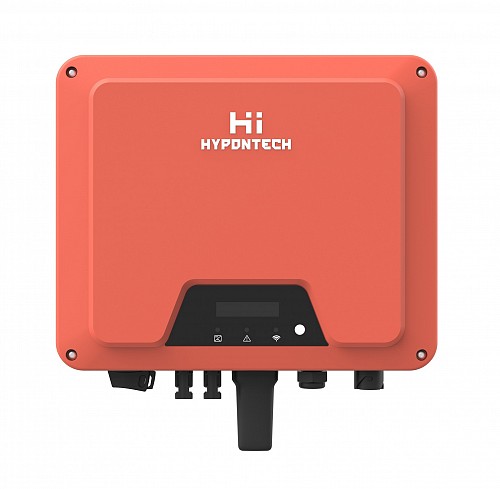

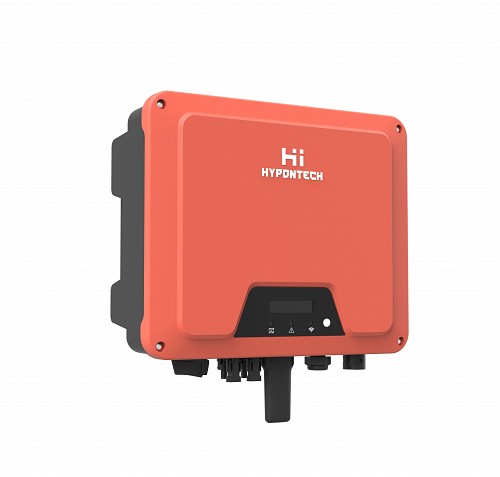

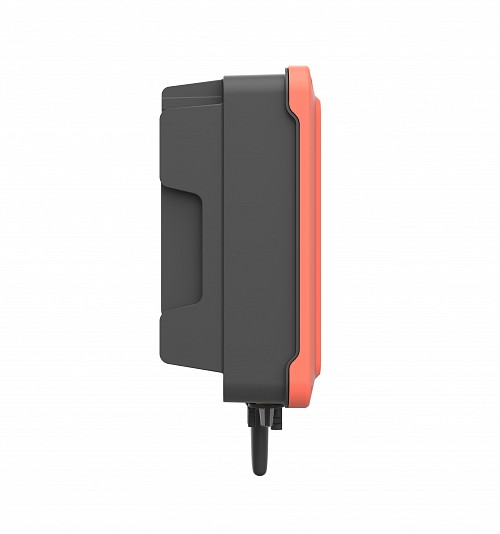

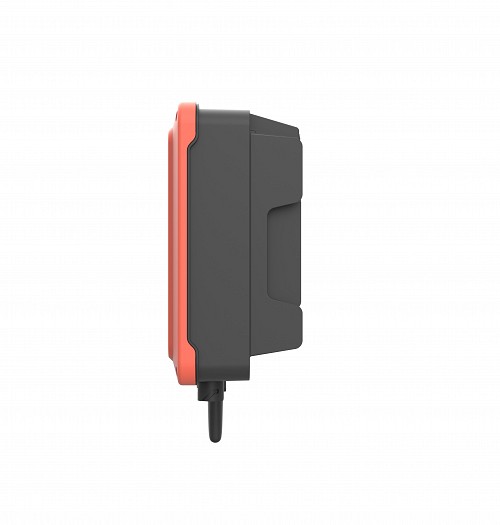

HYPONTECH OnGrid Inverter HPS-4000D Single Phase 4KW
HPT-5000 Inverter 3 Phase 5KW
- Peak Efficiency 98%
- Max DC Overload 40%
- Aluminum Alloy casting
- MES-FCT-CRM Ifrastructure
- Easy Installation and Service
HPS - 4000
​PV Input
- Max PV Power (W) : 6160
- Max Input Voltage (V) : 600
- MPPT Voltage Range (V) : 80-520
- Start Up Voltage (V) : 70 V
- Rated Input Voltage (V) : 360
- Max Input Current (A) : 13
- Max Short Circuit Current (A) : 20
- No. of MPPTs : 2
- No. of Strings Per MPPT : 1
AC Output
- Rated Power (W) : 4000
- Max. Apparent Power (VA) : 4400
- Rated Grid Volatege (Vac) : 220/230/240
- Grid Connection : L-N-PE
- Rated Grid Frequency (Hz) : 50/60
- Max Output current (A) : 20
- Power Factor : 0.8 ind - 0.8 cap
- THDi @Rated Power <3%
Efficiency
- Max Efficiency : 97.9%
- Euro Efficiency: 97.4%
- MPPT Efficiency: 99.9%
Protection Function
- Anti Islanding Proctection : Intergrated
- PV String Onput Reverse Polarity Protection : Intergrated
- Insulation Resistance Detection : Intergrated
- Resudula Current Monitoring Unit : Intergrated
- Output Over Current Protection : Intergrated
- Output Short Circuit Protection : Intergrated
- Over Voltage Protection : Intergrated
- Surge Protection : DC Type II, SC Type II
General Data
- Dimensions (W*H*D)(mm) : 395*328*154
- Weght (Kg): 9.8
- Noise Emission (Typical) dB(A) : 20
- User Interface : LCD&LED

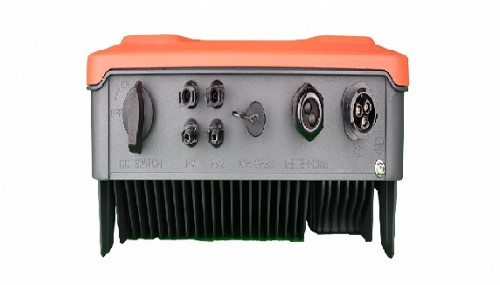

- PV connection Type : MC4
- AC Conection Type : Plug in connection
- Communication : RS485/WIFI/4G/LAN
- Colling Method : Natural Cooling
- Operating Ambient Temperature (C) : -25 to +60
- Relative Humidity (%) : 0 -100
- Max Operating Altitude (m) : 3000
- Protection Class : IP65
- Climatic Category (IEC 60721-3-4) : 4K4H
- Topology : Tranformerless
- Night Consumption (W) : <1
