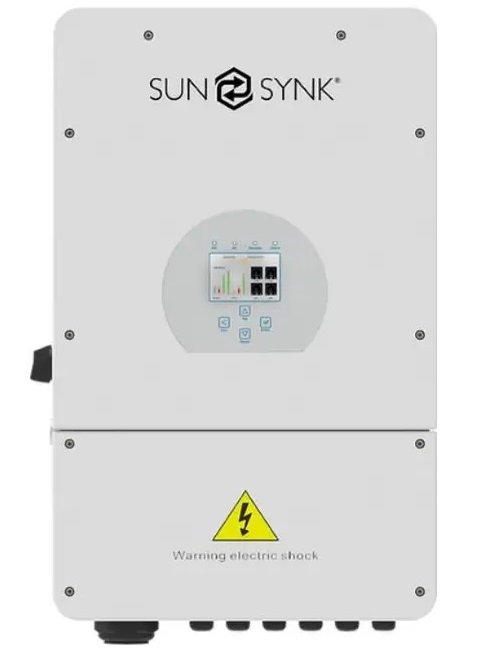

SUNSYNK Hybrid Inverter 3 Phase 8.8KW

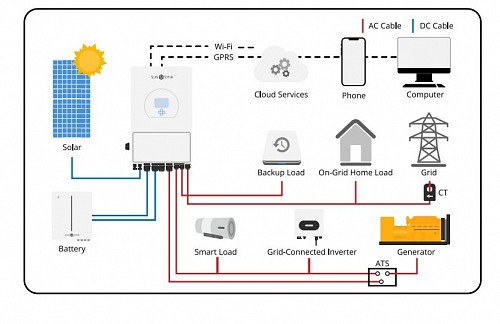

- The Sunsynk Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user tohit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require
Product Features
INTERACTIVE
- Easy and straightforward to understand LCD display
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker;
- Smart settable 3-stage MPPT charging for optimised battery performance
- Auxiliary load function
- Multi-inverter function: grid-tied and off-grid
COMPATIBLE
- Compatible with mains electrical grid voltages or power generators;
- Compatible with wind turbines
- 230V/400V Three-phase Pure Sine-wave Inverter
- It can power up both single-phase and 3-phase loads
- Self-consumption and feed-in to the grid
- Auto restart while AC is recovering
- Maximum charging/discharging current of 240A (12kW)
- DC and AC coupled to retrofit existing solar system
- Compatible with a 48V low-voltage battery
CONFIGURABLE
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid/off-grid & UPS
- Configurable battery charging - current/voltage based on applications by LCD setting
- Configurable AC / solar / generator charger priority by LCD setting
- 6 time periods for battery charging/discharging
SECURE
- Overload/over-temperature/short-circuit protection
- Smart battery charger design for optimised battery protection
- Limiting function installed to prevent excess power overflow to the grid
- Isolation transformer design
APPLICATIONS
- Marine (vessel power management)
- Power shedding (home/office/factory)
- UPS (fuel-saving systems)
- Remote locations with solar and wind generators
- Building sites
- Telecommunication
Battery Input Data
- Battery Type : Lead-acid or Li-Ion
- Battery Voltage Range : 40Vd.c ~ 60Vd.c
- Max. Charging/Discharging : 190Ad.c (max.)
- Charging Curve : 3 Stages / Equalization
- External Temperature Sensor : Yes
- Charging Strategy for Li-Ion : Battery Self-adaption to BMS
PV String Input Data
- Max. DC Input Power : 10400W
- PV Input Voltage : 550Vd.c (160Vd.c ~ 800Vd.c)
- MPPT Range : 200Vd.c ~ 650Vd.c
- Start-up Voltage : 160V
- PV Input Current : 13Ad.c + 13Ad.c
- Max. PV Isc : 17Ad.c + 17Ad.c
- No. of MPPT Trackers : 2
- No. of Strings Per MPPT Tracker : 1+1
AC Output Data
- Rated AC Output and UPS Power : 8000W
- Max. AC Output Power : 8800W
- Peak Power(off grid) : 2 times of rated power, 10s
- AC Output Rated Current : 12/11.6.4A
- Max. AC Current : 13.4A 20/12.8A
- Max. Three-phase Unbalanced Output Current : 18.2/17.4A
- Max. Output Short Circuit Current : 75A
- Max. Continuous AC Passthrough : 45A
- Output Frequency and Voltage : 50/60Hz, 3L/N/PE 220/380, 230/400Vac (Three phase)
- Grid Type : Three phase
- Total Harmonic Distortion (THD) : <3% (of nominal power)
- DC current injection : <0.5% ln
Efficiency
- Max. Efficiency 97.60%
- MPPT Efficiency >99%
Protection
- PV Arc Fault Detection : Integrated
- PV Input Lightning Protection : Integrated
- Anti-islanding Protection : Integrated
- PV String Input Reverse Polarity Protection : Integrated
- Insulation Resistor Detection : Integrated
- Residual Current Monitoring Unit : Integrated
- Output Over Current Protection : Integrated
- Output Shorted Protection : Integrated
- Surge Protection : DC Type III / AC Type III
- Over Voltage Category : DC Type II / AC Type III
Certifications and Standards
- Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
- EMC/Safety Regulation IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
- Operating Temperature Range : -40~60 ºC, >45 ºC Derating
- Cooling Smart : cooling
- Noise ≤45 dB
- Communication with BMS : RS485; CAN
- Weight : 34.5kg

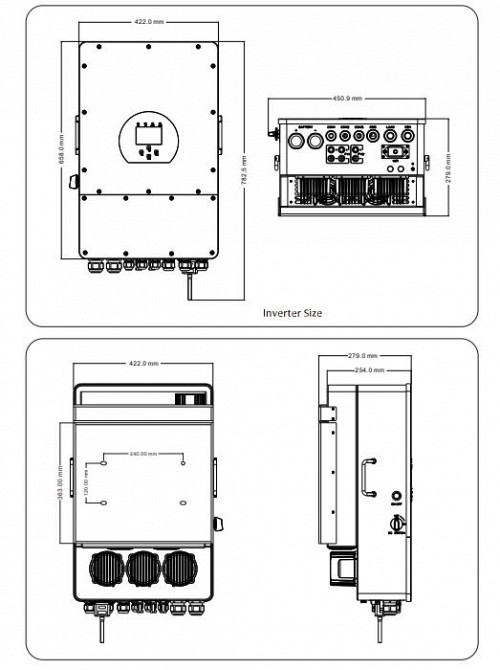

- Cabinet size : 422W×702H×281D (Excluding connectors and brackets)
- Protection Degree : IP65
- Installation Style : Wall-mounted
- Warranty : 5 years
