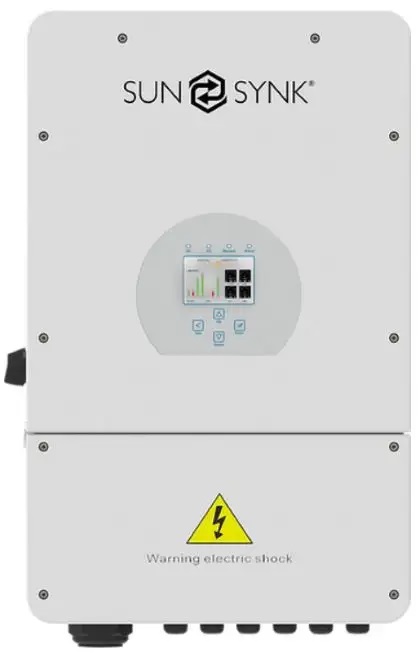

SUNSYNK HI Hybrid Inverter 3 Phase 10KW

Name: SUNSYNK HI Hybrid Inverter 3 Phase 10KW
Brand: SUNSYNK
SKU: 27429
Price: 2299.00 EUR
Availability: OutOfStock

Order code: 27429

€2,299.00€3,349.00incl. VAT

You save €1,050.00 (31%)

Out of stock

Description

The Sunsynk Three-Phase Hybrid Storage Inverters are highly efficient power management tools for three-phase grid applications. These inverters allow the user to control power flow from multiple sources such as solar, main electrical grids, and generators, and effectively store and deliver electric power to your applications
These amazing three-phase inverters have a unique feature. They can operate and balance the load, which means you can have 20% connected to one phase, 20% to another, and 60% to the third phase, and it still gives perfect phase rotation. No other inverter in their class can offer this feature.

Battery Type: Lead-acid or Li-Ion
Battery Voltage Range: 40Vd.c ~ 60Vd.c
Max. Charging/Discharging: 210Ad.c (max.)
Charging Curve: 3 Stages / Equalization
External Temperature Sensor: Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Max. DC Input Power: 13000W
PV Input Voltage: 550Vd.c (160Vd.c ~ 800Vd.c)
MPPT Range: 200Vd.c ~ 650Vd.c
Start-up Voltage: 160V
PV Input Current: 26Ad.c + 13Ad.c
Max. PV Isc: 34Ad.c + 17Ad.c
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+1
Rated AC Output and UPS Power: 10000W
Max. AC Output Power: 11000W
Peak Power (Off-Grid): 2 times of rated power, 10 S
AC Output Rated Current: 15.2/14.5A
Max. AC Current: 16.7/15.9A
Max. Three-phase Unbalanced Output Current: 22.7/21.7A
Max. Output Short Circuit Current: 75A
Max. Continuous AC Passthrough: 45A
Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380, 230/400Vac (Three phase)
Grid Type: Three phase
Total harmonic distortion: (THD) <3% (of nominal power)
DC Current Injection: <0.5% ln
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: >99%
