HYPONTECH

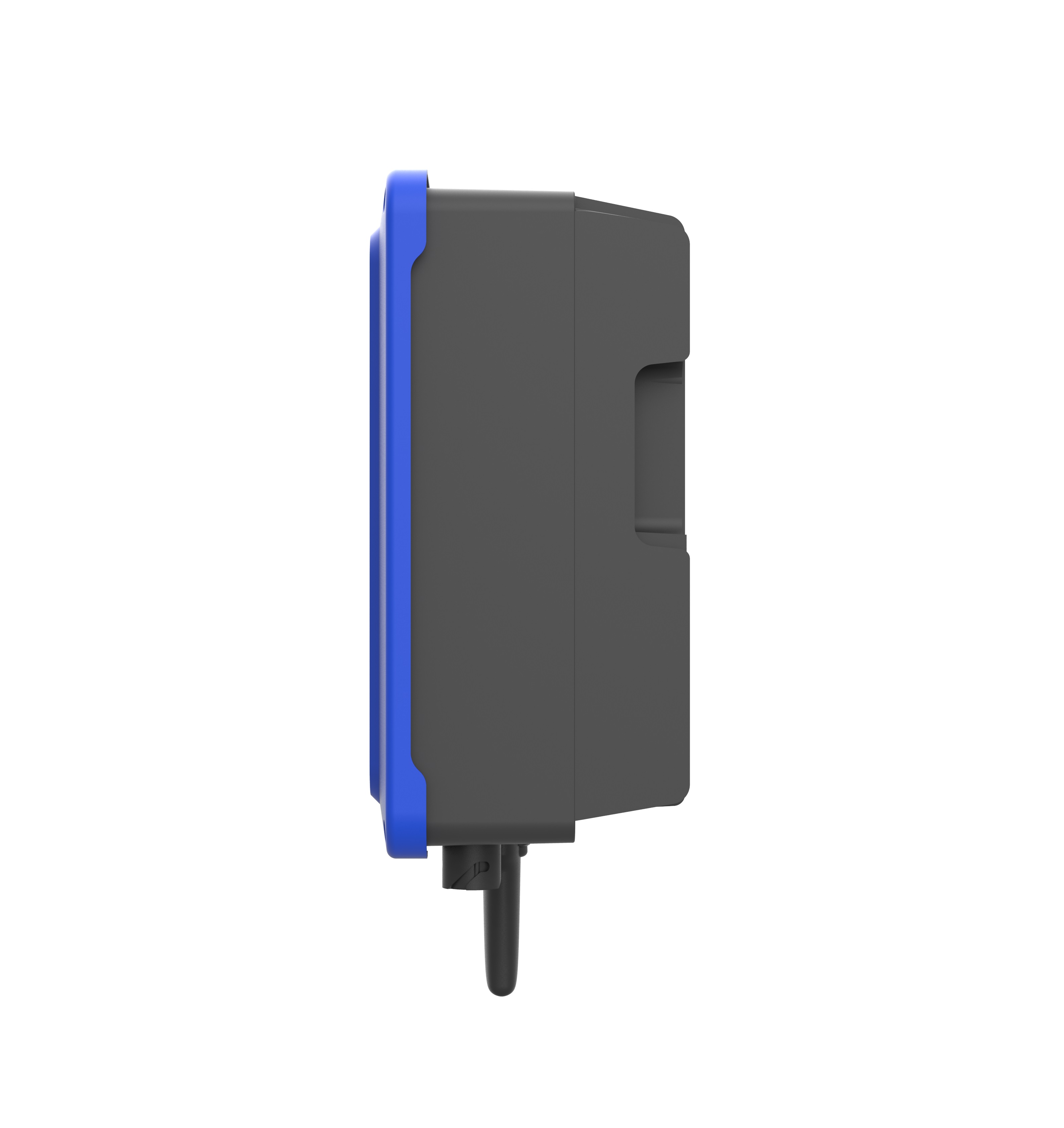

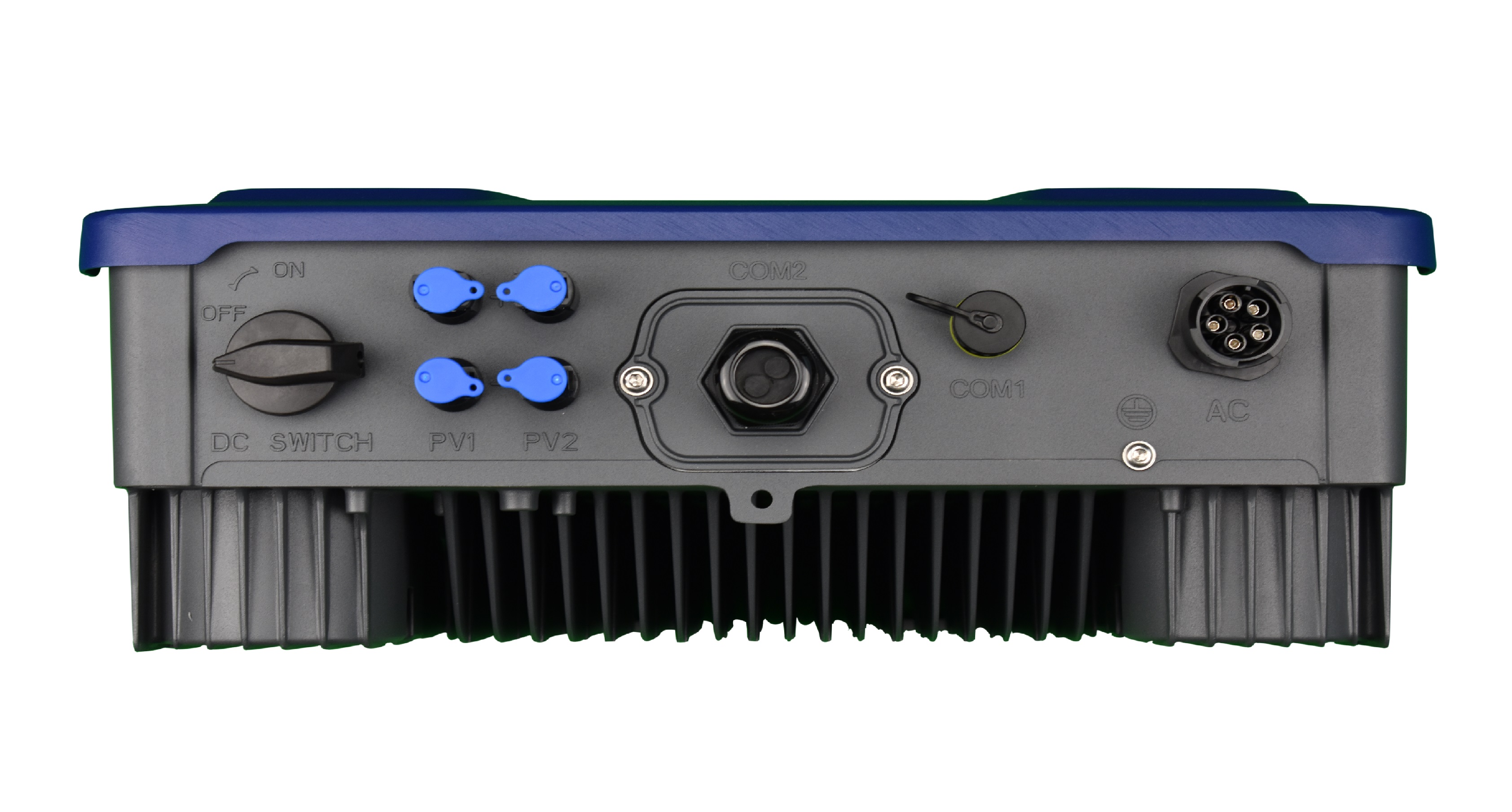

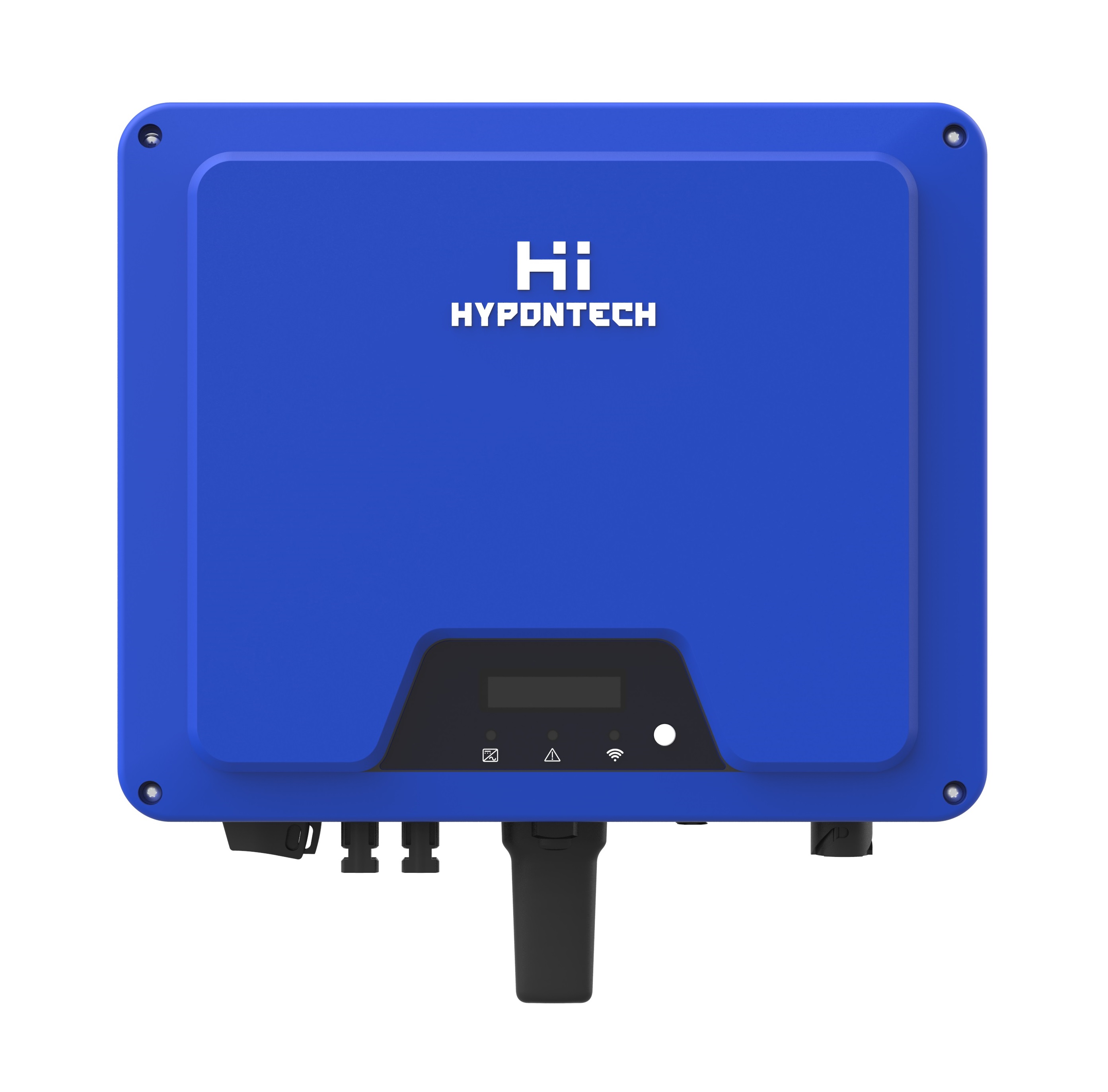

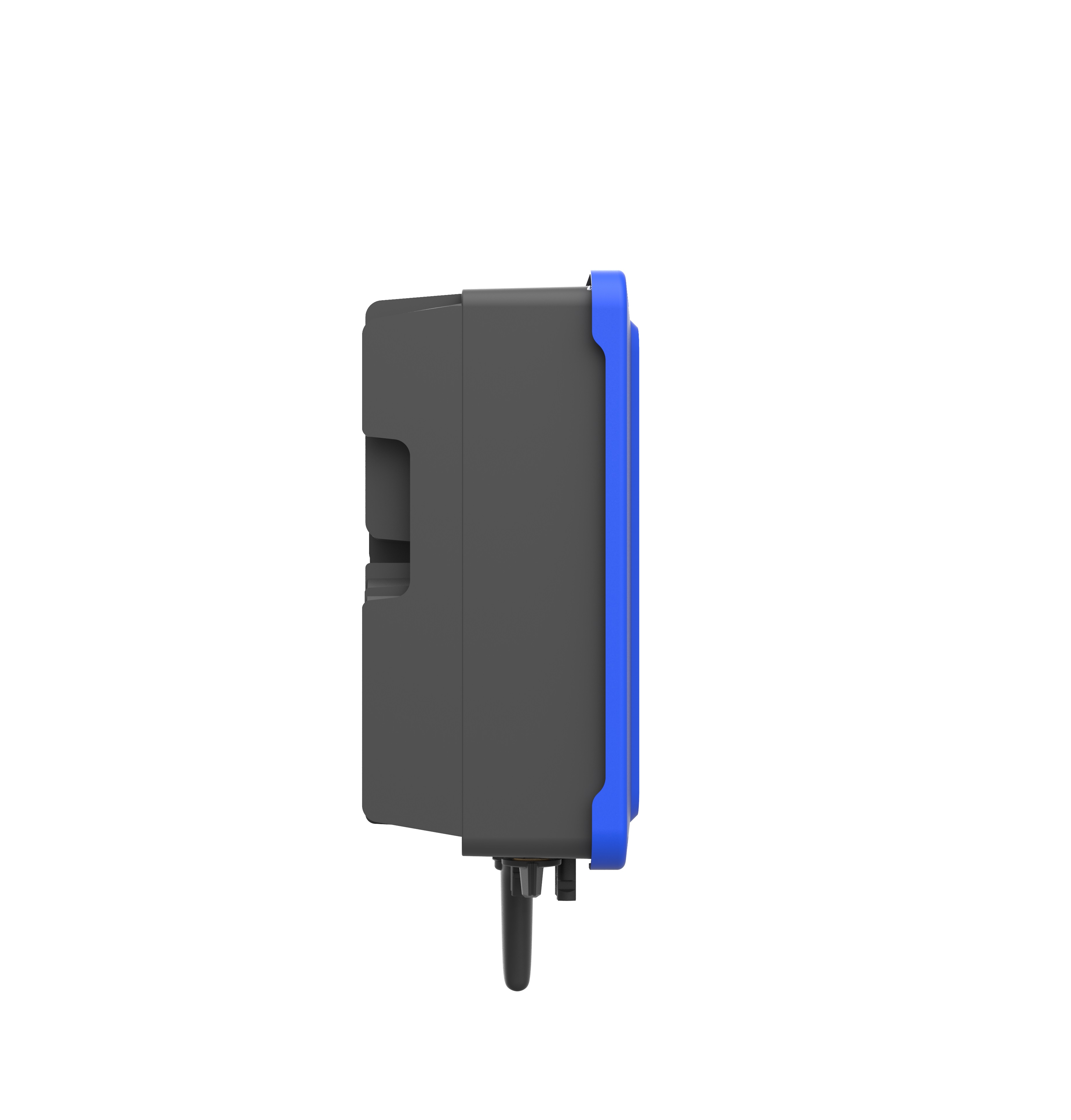

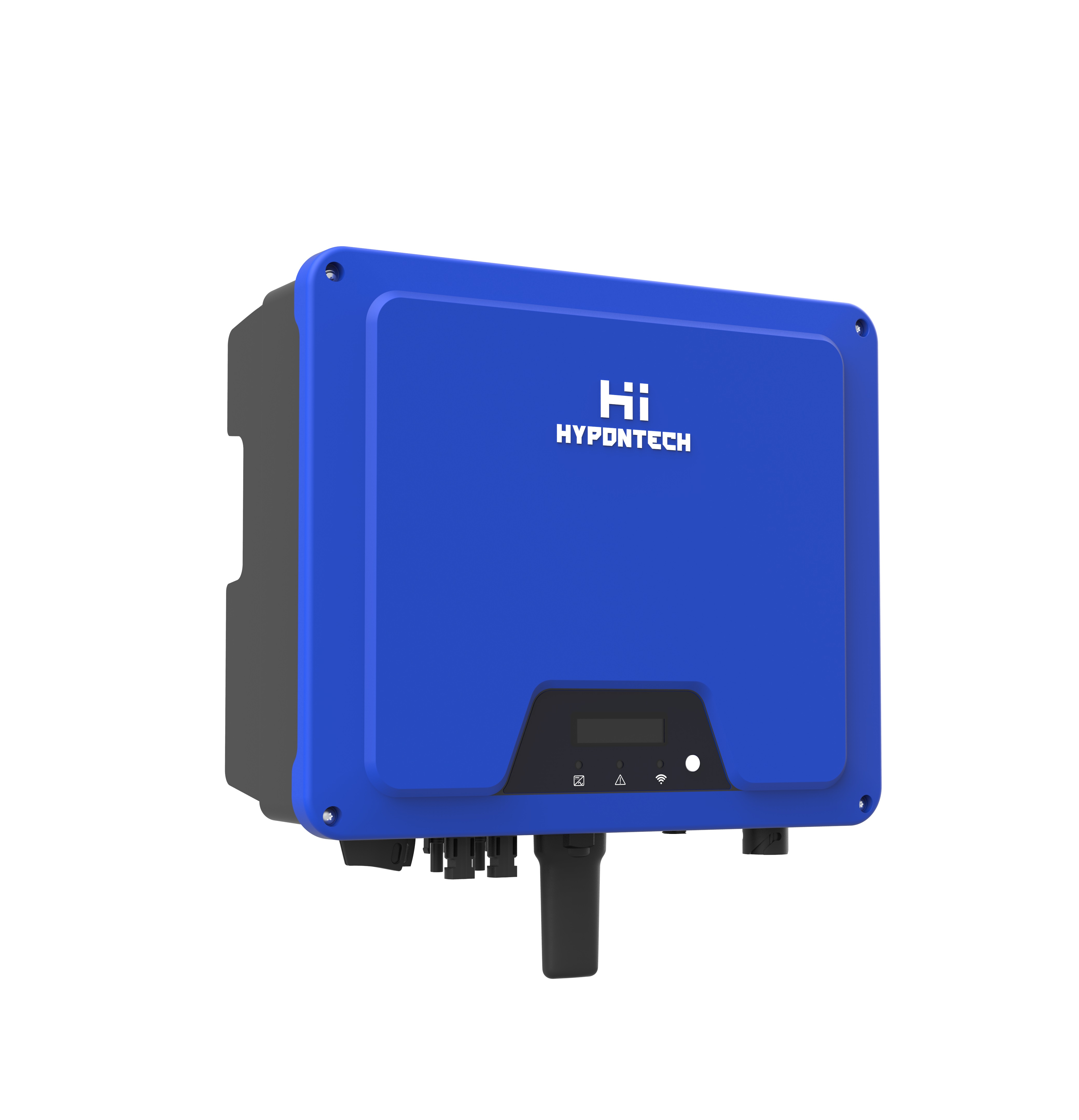

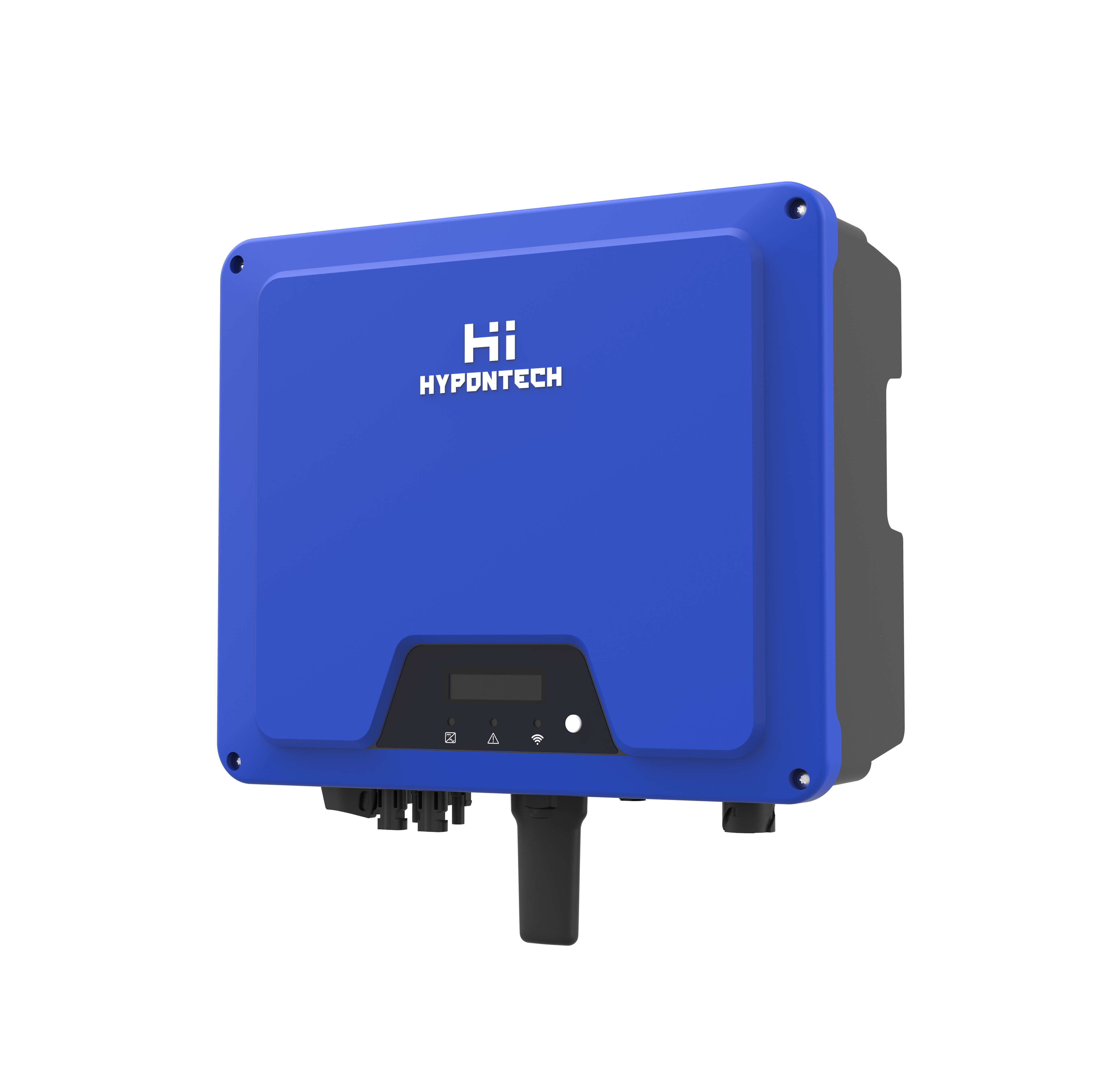

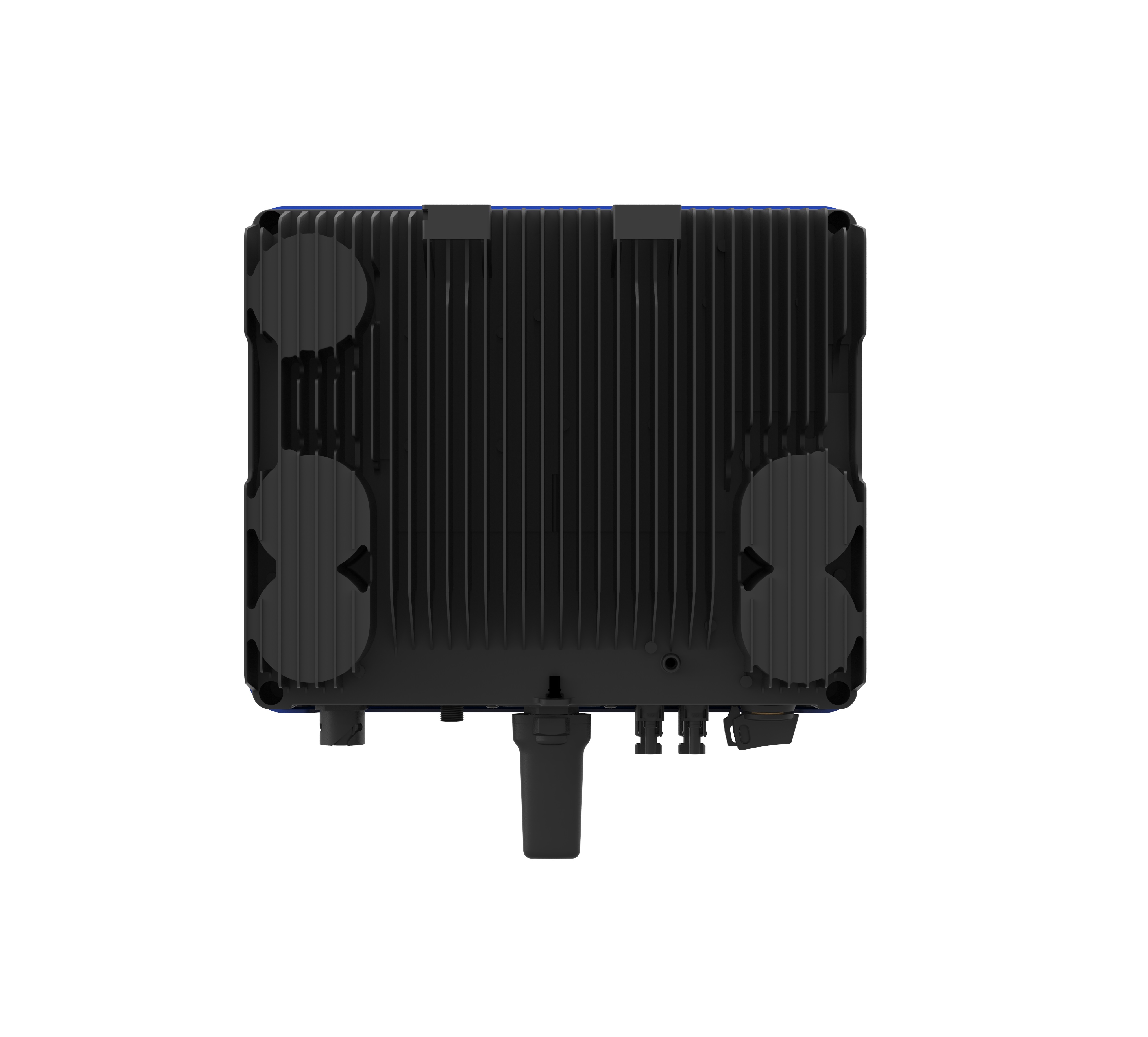

HYPONTECH OnGrid Inverter HPT-10000 Three Phase 10KW
Order code: 25877
- Max PV Power (W):15000
- Max Input Voltage (V):1100
- Start Up Voltage (V):180 V
- Rated Input Voltage (V):620
- MPPT Voltage Range (V):150-1000
- All specifications
€849.00€1,299.00incl. VAT
You save €450.00 (35%)
Ships in 2-4 working days
Free pickup from our shop
Description
HPT-10000 Inverter 3 Phase 10KW
- Peak Efficiency 98.5%
- Max DC Overload 50%
- Aluminum Alloy casting
- MES-FCT-CRM Ifrastructure
- Easy Installation and Service
Specifications
- Max PV Power (W)
- 15000
- Max Input Voltage (V)
- 1100
- Start Up Voltage (V)
- 180 V
- Rated Input Voltage (V)
- 620
- MPPT Voltage Range (V)
- 150-1000
- Max Input Current (A)
- 16
- Max Short Circuit Current (A)
- 20
- No. of MPPTs
- 2
- No. of Strings Per MPPT
- 1
- Rated Power (W)
- 10000
- Max. Apparent Power (VA)
- 11000
- Rated Grid Volatege (Vac)
- 380/400
- Rated Grid Frequency (Hz)
- 50/60
- Max Output current (A)
- 15.9
- Power Factor
- 0.8 ind - 0.8 cap
- Grid Connection
- 3L-N-PE
- Max Efficiency
- 98.5%
- Euro Efficiency
- 97.8%
- MPPT Efficiency
- 99.9%
- Anti Islanding Proctection
- Intergrated
- PV String Onput Reverse Polarity Protection
- Intergrated
- Insulation Resistance Detection
- Intergrated
- Resudula Current Monitoring Unit
- Intergrated
- Output Over Current Protection
- Intergrated
- Output Short Circuit Protection
- Intergrated
- Over Voltage Protection
- Intergrated
- Surge Protection
- DC Type II, SC Type II
- Dimensions (W*H*D)(mm)
- 425*351*160
- Weght (Kg)
- 15
- Noise Emission (Typical) dB(A)
- 20
- User interface
- LCD&LED
- PV connection Type
- MC4
- AC Conection Type
- Plug in connection
- Communication
- RS485/WIFI/4G/LAN
- Colling Method
- Natural Cooling
- Operating Ambient Temperature (C)
- -25 to +60
- Relative Humidity (%)
- 0 -100
- Max Operating Altitude (m)
- 2000
- Protection class
- IP65
- Climatic Category (IEC 60721-3-4)
- 4K4H
- Topology
- Tranformerless
- Night Consumption (W)
- <1
