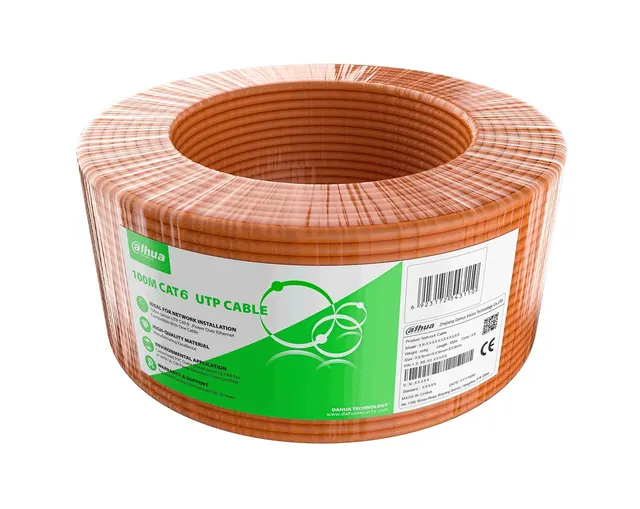

Dahua CAT6 Cable CCA 100m Orange PFM922I-6UN-C-100

Specifications

Material

PVC

Diameter

6.5 mm ± 0.3 mm (0.2559"±0.0118")

Wire Gauge

23AWG

Min. Average Thickness

0.5 mm (0.0197")

Color

Orange

Specification

500D

Max. DC Resistance of a Single Conductor

11.5Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100Ω ± 15Ω

Near End Cross Talk

≥39.30 dB/100 m @250 MHz

Max. Attenuation

34.8 dB/100 m @250 MHz

Return Loss

≥17.3 dB/100 m @250 MHz

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Length

100.0 m (328.08 ft) ±1 m (3.28 ft)

Inner Carton Dimensions

286 mm × 119 mm × 289 mm (11.26" × 4.69" × 11.38") (L × W × H)

Net Weight

3.2 kg ±0.3 kg (7.05 lb ±0.66 lb)

Gross weight

3.5 kg ±0.3 kg (7.72 lb ±0.66 lb)

Packaging Dimensions

595 mm × 310 mm × 270 mm (23.43" × 12.20" × 10.62") (L × W × H)

Packaging Method

100 m/carton, 4 inner cartons in one package

Executive Standard

Q/DXJ 067-2019

Certification

CPR Eca
