Mercury Economy CAT6 CCA UTP Cable 305m 808.025UK
Order code: 23561EAN: 5015972223314
- Type:Cat6
- Cable Type:UTP
- Conductor:CCA
- Environment:Indoor
- Length:305m
- All specifications
€110.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
Mercury Economy CAT6 CCA UTP Cable 305m 808.025UK

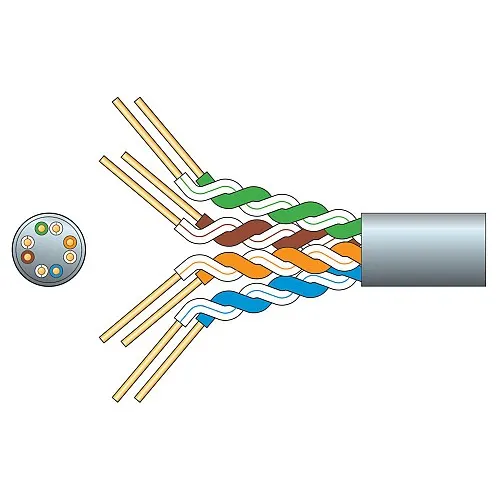

Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.
- Solid copper clad aluminium conductor
- Supplied in an easy-pull dispensing box
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Conductor Solid CCA
- Strands 8 x 1/0.57mmØ ±2%
- CSA 8 x 0.26mm²
- Cable : diameter 5.5mmØ
- Insulation HDPE 0.23mm thickness
- Sheath PVC 0.5mm thickness
- Impedance 100 Ohms (±15)
- DC resistance @ 20°C <35 Ohms/100mt
- Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
- NEXT >40dB @ 100m
- PSNEXT >38dB @ 100m
- Cable colour Grey
- Length 305m
- Weight 8.5kg
Specifications
- Type
- Cat6
- Cable Type
- UTP
- Conductor
- CCA
- Environment
- Indoor
- Length
- 305m
- Colour
- Grey
