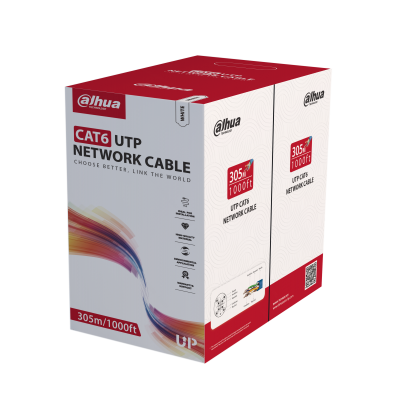

Dahua CAT6 OFC Cable 0.53mm 305m Orange PFM920I-6UN-CN

Specifications

Material

PVC

Diameter

5.8 mm ± 0.30 mm (0.23" ± 0.0118")

Wire Gauge

24 AWG

Min. Average Thickness

0.5 mm (0.02")

Color

White

Specification

Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")

Max. DC Resistance of a Single Conductor

9.0 Ω @ 100 m (328.08 ft)

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥39.3 dB/100 m @ 250 MHz

Max. Attenuation

34.8 dB/100 m @ 250 MHz

Return Loss

≥17.3 dB/100 m @ 250 MHz

Tensile Strength

Sheath ≥13.5 MPa, insulation ≥16 MPa

Elongation at Break

Sheath ≥150%, insulation ≥300%

Installation Bending Radius

>8 times of the outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥125%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Cable Length

305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)

Packaging Method

305 m (1,000 ft) a carton, one carton with 2 inner cartons

Packaging Dimensions

403 mm × 401 mm × 210 mm (15.87" × 15.79" × 8.27") (L × W × H)

Transport Package Dimensions

455 mm × 435 mm × 436 mm (17.91" × 17.13" × 17.17") (L × W × H)

Net Weight

11.0 kg ± 0.5 kg (24.25 lb ± 1.10 lb)

Gross weight

12.3 kg ± 0.5 kg (27.12 lb ± 1.10 lb)

Executive Standards

Q／DXJ 067-2024, EN50575

Certifications

CPR Eca

Flame-retardant Standard

EN50575
