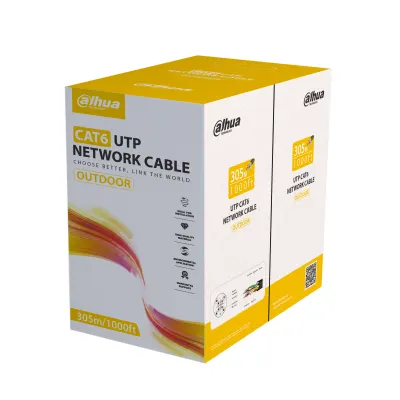

Dahua CAT6 OFC Cable 305m 0.53mm Black Outdoor PFM920-6UN

Specifications

Material

MDPE

Diameter

6.8 mm ± 0.4 mm (0.27" ± 0.02")

Wire Gauge

24 AWG

Min. Average Thickness

0.5 mm (0.02")

Color

Black

Specification

Translucent 4.3 × 0.35 mm

Max. DC Resistance of a Single Conductor

9.5 Ω / 100 m (328.08 ft)

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥39.30 dB / 100 m @ 250 MHz

Max. Attenuation

34.8 dB / 100 m @ 250 MHz

Return Loss

≥17.3 dB / 100 m @ 250 MHz

Tensile Strength

Sheath ≥13.5 MPa, insulation ≥16 MPa

Elongation at Break

Sheath ≥150%, insulation ≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Vertical Flame Test

Comply with IEC 60332-1-2

Cable Length

305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)

Packaging Method

305 m (1,000 ft) a carton, one carton with 2 inner cartons

Packaging Dimensions

433 mm × 433 mm × 230 mm (17.05" × 17.05" × 9.06") (L × W × H)

Transport Package Dimensions

495 mm × 457 mm × 466 mm (19.49" × 17.99" × 18.35") (L × W × H)

Net Weight

13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb)

Gross weight

14.5 kg ± 0.6 kg (31.97 lb ± 1.32 lb)

Executive Standards

Q/DXJ 067-2024
