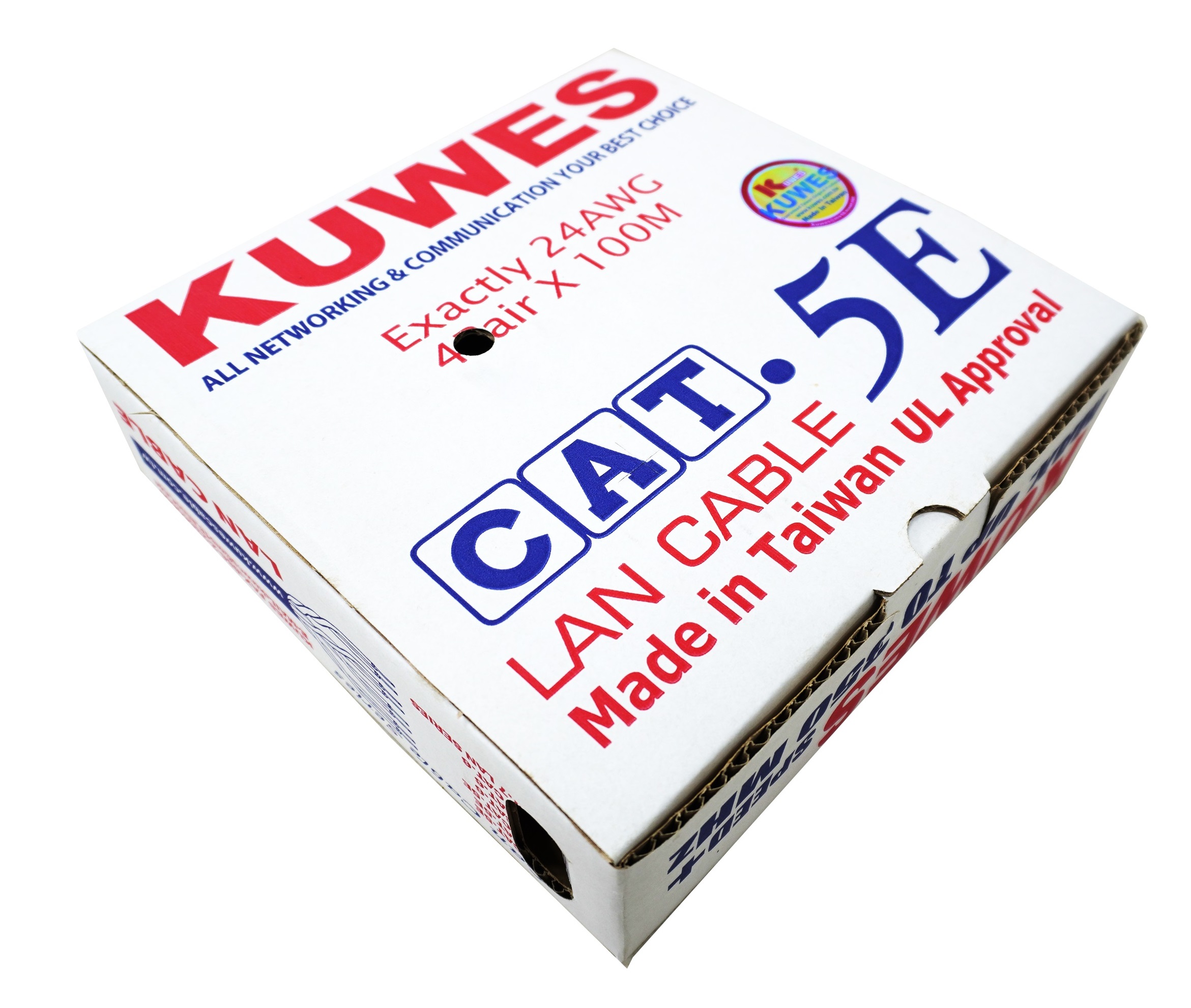

Kuwes CAT5E UTP Pure Copper Indoor 100m Grey

Conductor: Solid Bare copper (1 x AWG24)

Insulation : HDPE

• Min. Avg. Thickness: 0.178 mm
• Min. Thickness: 0.153 mm

Color Code:

• Pair 1: Blue & White/Blue
• Pair 2: Orange & White/Orange
• Pair 3: Green & White/Green
• Pair 4: Brown & White/Brown

Jacket: 75°C PVC Compound

• Min. Avg. Thickness: 0.585 mm
• Min. Thickness: 0.458 mm
•  Approximate O.D.: 5.2 mm +/- 0.3mm

Electric Requirements: (Cable length: 100M)

• Characteristic Impedance(Zo): 85～115Ω (1～350MHz)
• Other Requirements: (dB/100M)
• DC. Resistance Capacitance Unbalance: 5％
• Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
• Conductor Resistance: 9.38Ω/ 100M  20°C Max
• Mutual Capacitance: 5.6 nF/m Max
• Spark Test: 2.5KV
• Nominal Velocity of Propagation (NVP): 69 %
