Mercury
Mercury Cat7 S/FTP LSZH Network Cable 305m 808.050UK
Order code: 25700EAN: 5015972230794
- Conductor:Solid OFC
- Conductor Diameter:0.560±0.005mm
- Cable Diameter:7.2±0.5mm
- Screen:Aluminium/Mylar foil
- Braid material:Aluminium magnesium alloy
- All specifications
€349.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

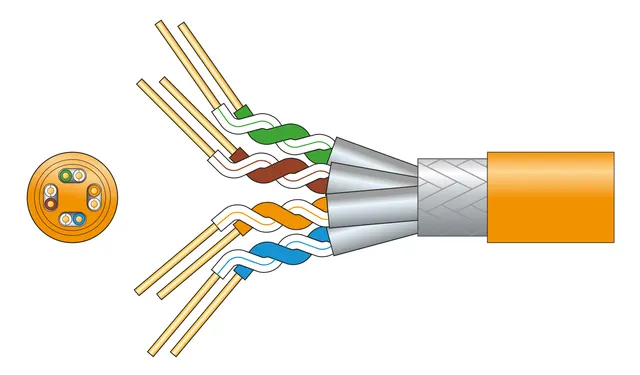

Cat7 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals, this cable is designed for ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz.
- Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
Specifications
- Conductor
- Solid OFC
- Conductor Diameter
- 0.560±0.005mm
- Cable Diameter
- 7.2±0.5mm
- Screen
- Aluminium/Mylar foil
- Braid material
- Aluminium magnesium alloy
- Insulation
- PE 1.30±0.05mm
- Sheath
- LSZH 0.50±0.05mm
- Capacitance
- <330pf/100m
- DC resistance @ 20°C
- <9.38 Ohms/100m
- Impedance (1 to 100MHz)
- 100±15?
- Impedance (100 to 250MHz)
- 100±18?
- Impedance (250 to 600MHz)
- 100±25?
- Return Loss
- >20.95dB
- Attenuation
- <1.92dB
- NEXT
- >81.17dB
- Phase delay
- <426.34ns
- PSNEXT
- >81.07dB
- ELFEXT
- >58.61dB
- PSELFEXT
- >55.88dB
- Colour
- Orange
- Weight
- 17.5kg
