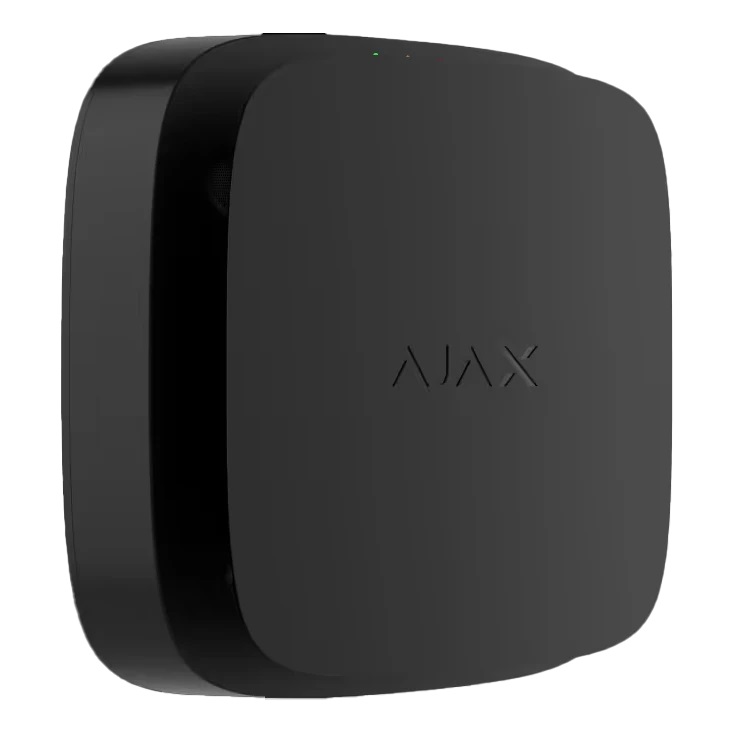

Ajax EN54 Fire Detection (Smoke/Sounder) Black
Ajax EN54 Fire Detection (Smoke/Sounder) Black

Ajax EN54 Fire Detection (Smoke/Sounder) Black

€154.00
  • The unique smoke chamber, dual-spectrum optical sensor, and proprietary HazeFlow 2 software algorithm guarantee the speed and accuracy of fire detection.
  • The smoke chamber is hardwired with a dual-spectrum optical sensor that has blue and infrared LEDs with different wavelengths. It measures the microparticle concentration in the air to determine the size of the volatile particles inside the chamber and responds only to smoke.
  • The HazeFlow 2 algorithm analyses and compares data from the dual-spectrum optical sensor to a specified pattern to define smoke from vapor or steam. The detector instantly raises the alarm when pattern dynamics indicate a real case of fire.
Specification
  • 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz
  • up to 20 mW / Automatic power control to reduce power consumption and radio interference.
  • GFSK
  • up to 1,700 m / Between the device and control and indicating equipment (CIE) or a range extender in an open space.
  • All stored and transmitted data is protected by block encryption featuring a dynamic key.
  • To prevent radio interference and jamming.
  • dual-spectrum optical sensor / Detects smoke based on the size of particles in the air.
  • The device does not respond to water vapor.
  • Protects the smoke sensor from dust, dirt, and insects.
  • acoustic
  • up to 95 dB at a distance of 1 m / Adjusted by a PRO or user with admin rights in an Ajax app.
  • 32 tones
  • An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE.
  • An audible alarm check to ensure the fire alarm is clearly audible on the premises.
  • to secure the device on the SmartBracket mounting panel / When locked, the lock secures the device and prevents it from being removed without a special tool.
  • Device authentication
  • after 36 s / Detection time depends on Jeweller settings.
  • 2 × CR123A / Pre-installed.
  • To replace the batteries, open the lids of the battery compartments.
  • Prevents device damage if the batteries are put in incorrectly.
  • Huiderui CR123A; 3 V; 1,600 mAh, LiMnOâ‚‚
  • up to 5 years
  • 124 × 124 × 48 mm
  • 295 g
  • from 0 °C to +50 °C
  • Up to 80%
  • IP21C
  • UL 94 V-0
  • Black
  • 1
