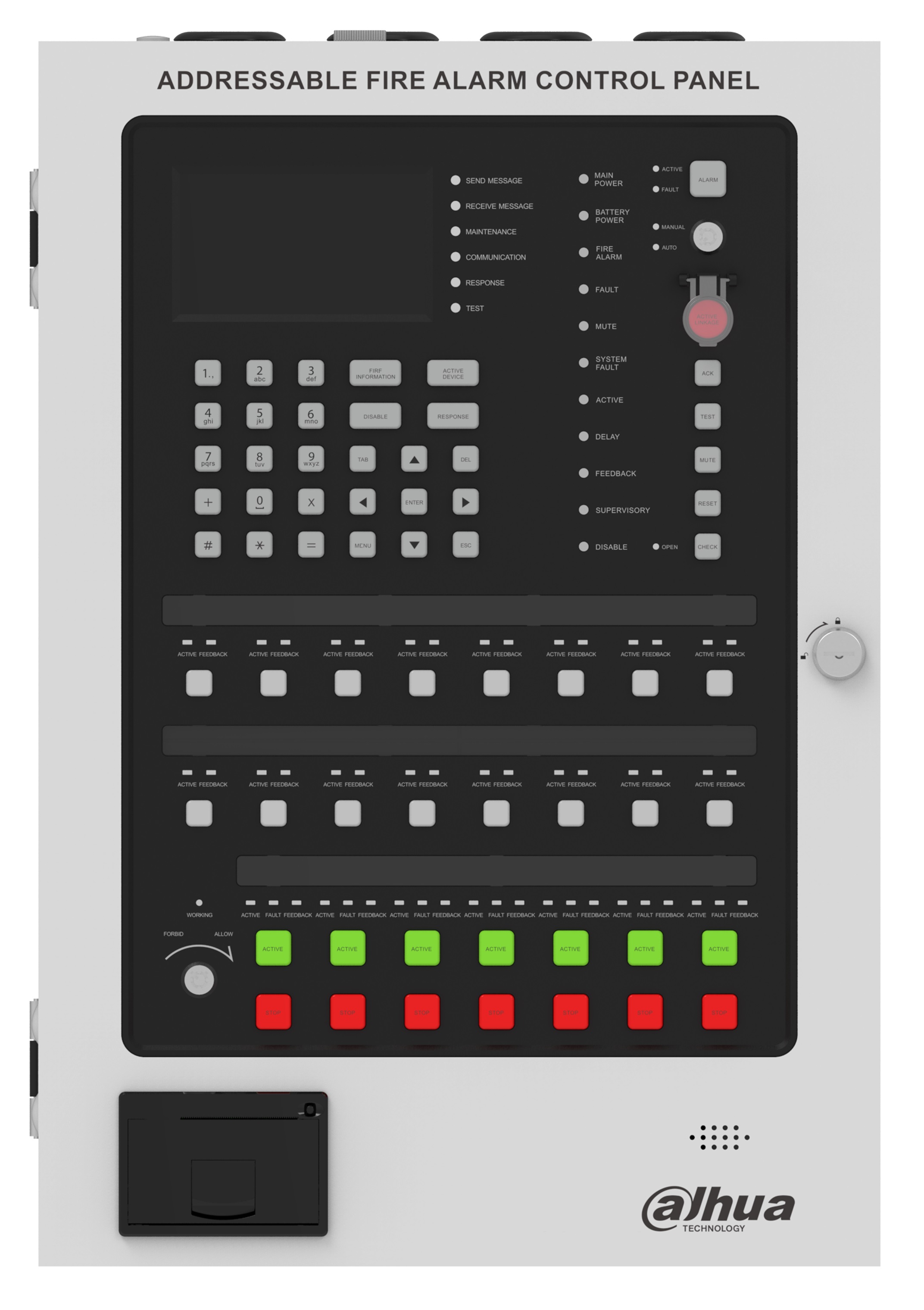

Dahua Addressable Fire Alarm Control Panel (1 Loop-254 Devices) HY-1022R-AB
Dahua Addressable Fire Alarm Control Panel (1 Loop-254 Devices) HY-1022R-AB

Dahua Addressable Fire Alarm Control Panel (1 Loop-254 Devices) HY-1022R-AB

€738.00
  • Class A Topology: Reduce wiring costs and enhance circuit stability.
  • Two-Wire, Polarity-Free Communication: The system uses a two-wire, polarity-free technology, eliminating the need for an external power source. This enhances reliability, simplifies wiring, reduces costs, and facilitates maintenance.
  • User-Friendly Display: The 4.3-inch LCD screen (480 × 272) offers an intuitive interface for complete system setup without external tools.
  • Extended Event Logging: Historical events are securely saved and can be queried and printed by time and type.
  • Intelligent Power Management: Automatic switching between main and backup power ensures a stable supply, enhancing system reliability.
  • Comprehensive Protection: Includes short circuit, open circuit, and overcurrent protection for stable operation
Specification
  • 16V DC–28V DC
  • Max. 254 devices for one loop
  • 1 Loop
  • AC90-240V/50Hz, 60Hz
  • 2×12V/5Ah lead-acid battery
  • NO/NC
  • NO/NC
  • Max. 1500m
  • 128 Panels By RS-485
  • 2×1.5 mm²
  • 480 × 272 4.3’’ LCD screen
  • Micro thermal printer
  • 333.0 mm×115.0 mm×480.0 mm (13.11" × 4.53" × 18.90")
  • –10°C to +40°C (+14°F to +104°F)
  • ≤ 95% RH (no condensation)
  • IP30
  • 7 kg / 10 kg (with 2 batteries
