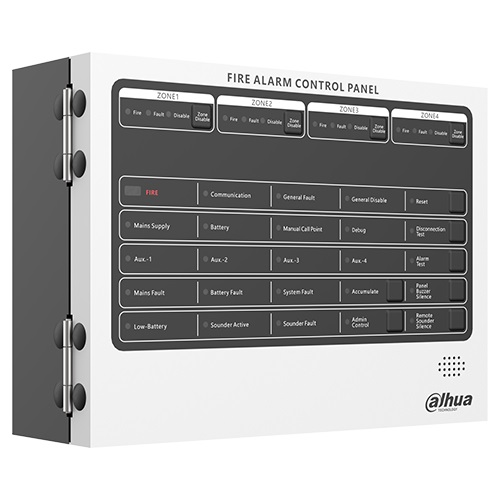

Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4
Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4

Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4

€199.00
  • 90VAC to 270VAC main power supply ensures the stable operation
  • 4 dry contacts make connection flexible
  • Ethernet interfaces enables communication with IoT platform
  • RS-485 interface contributes to convenient integration
  • Record and export capacity of historical events for each of fire, fault and operation
Specification
  • 4
  • 32 detectors per zone
  • AC90-240V/50Hz, 60Hz
  • 2 lead-acid batteries (12V/2.5Ah each)
  • 2A
  • Fault: 50dB / Alarm: 60dB
  • DC 28V/500mA
  • 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
  • 3.5 kg / 5 kg (with 2 batteries)
  • –10°C to +50°C (+14°F to +122°F)
  • ≤ 95% RH (no condensation)
  • IP30
  • Wall Mount
  • EN54-2,EN54-4
