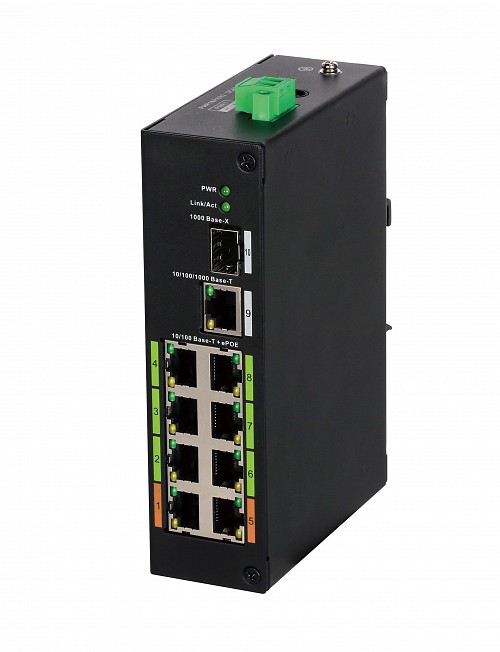

Dahua ePoE Switch 8port with 2 Uplinks LR2110-8ET-120
- Supports long distance PoE transmission up to 800m with ePoE technology
- Layer-two ePoE switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
- Industrial wide temperature design
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Technical Specification
- Model : DH-LR2110-8ET-120
- Ethernet Port : 1*1000 Base-X / 1*10/100/1000 Base-T / 8*10/100 Base-T(PoE power supply)
- PoE Power Consumption : Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
- PoE Protocol : IEEE802.3af, IEEE802.3at, Hi-PoE
- Switching Capacity : 8.8Gbps
- Packet Forwarding Rate : 4.17Mpps
- Packet Buffer Memory : 2.75Mb
- MAC Table Size : 8K
- Flow Control : Enable by default
- Application Humidity : 10%~90%
- Power : DC48~57V power adapter
- Lightning Protection : Common Mode 4KV / Differential Mode 2KV
- Working Temperature : ﹣30°C~65°C
- Weight : 0.59kg
- Dimension(W×D×H) : 150mm×100mm×42mm
