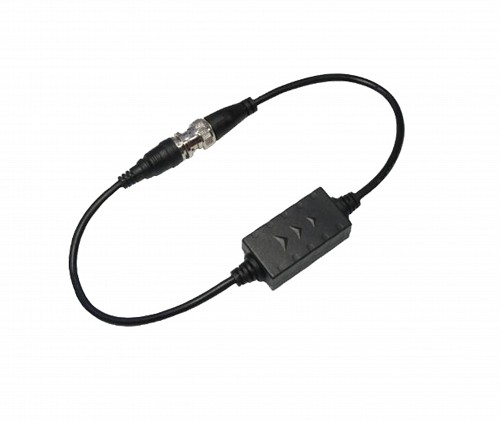

Dahua HD Video Isolator PFM791
- HD video isolator, to solve the HDCVI image interference caused by ground loops effectively;
- Apply to indoor or in junction box
- Working Temperature: -20~55℃
Properties
- Insertion loss : 0.5dB
- Frequency response : 0-65MHz
- Input impedence : 75Ω
- Out impedence : 75Ω
- Isolation voltage : 800V(min.)
- Isolation resistance : 100MΩ
Protection
- ESD protection : Contact discharge: 600V / Air discharge: 8000V / Per IEC61000-4-2
- Surge protection : 4KV 10/700us, per IEC61000-4-5
Reliability
- MTBF >20000h
Physical Properties
- Dimension(L*W*H) : Body: 42mmx22.5mmx16mm / Length: 400mm
- Ourter shell : ABS
- Color : Black
- N.W : 38g
Environmental
- Working temperature -20℃~55℃
- Storage temperature -20℃~55℃
- Relative humidity 0~95%
