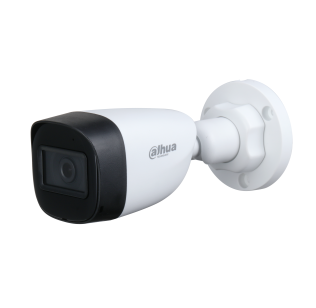

Dahua HDCVI 5.0MP Bullet 2.8mm HFW1500C-S2
Dahua HDCVI 5.0MP Bullet 2.8mm HFW1500C-S2

Dahua HDCVI 5.0MP Bullet 2.8mm HFW1500C-S2

€54.90 €61.00

The parameters and datasheets below can only be applied to 1500-S2 series

In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

  • Max 25 fps@5MP (16:9 video output)
  • CVI/CVBS/AHD/TVI switchable
  • 3.6 mm fixed lens (2.8 mm optional)
  • Max. IR length 30 m, Smart IR
  • Built-in mic(-A)
  • IP67, DC12V
Specification
  • 1/2.7 inch CMOS
  •  2880 (H) × 1620 (V)
  •  Progressive
  • PAL: 1/25s–1/100000s , NTSC: 1/30s–1/100000s
  •  >65 dB
  • Fixed-focal
  •  M12
  • 2.8 mm , 3.6 mm
  •  F1.6
  • 2.8 mm: 132° × 111° × 58°(diagonal × horizontal × vertical) , 3.6 mm: 109° × 92° × 48°(diagonal × horizontal × vertical)
  •  Fixed
  •  3.6 mm: 1.3 m
  •  CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
  • 5M@25 fps; 4M@30 fps; 1080p@30 fps /AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps / CVBS: PAL: 960H; NTSC: 960H
  •  5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  •  Auto switch by ICR
  •  BLC; HLC; DWDR
  •  DWDR
  •  Auto; Area white balance
  •  Auto/Manual
  •  2D NR
  •  Yes
  •  Off/On (8 areas, rectangle)
  • Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  •  One channel built-in mic
  •  12 VDC ± 30%
  •  Max 3.1 W (12 VDC, WLED on)
  •  –40 °C to +60 °C
  •  <95% (RH), non-condensing
  •  –40 °C to +60 °C
  •  <95% (RH), non-condensing
  •  IP67
  •  Plastic
  •  161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75" )
  • 0.19 kg kg
  •  0.29 kg
