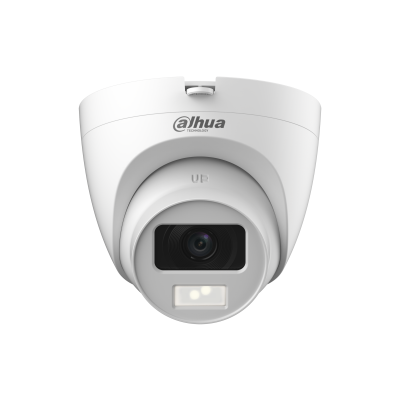

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator HDW1500CLQ-IL-A-0280B-S2
Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator HDW1500CLQ-IL-A-0280B-S2

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator HDW1500CLQ-IL-A-0280B-S2

€41.00 €108.00

* The parameters and datasheets below can only be applied to1500-IL series.

* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

  • Max 25 fps@5MP (16:9 video output).
  • Smart Dual Light.
  • 20 m illumination distance.
  • Super Adapt.
  • Built-in MIC.
  • Quick-to-install eyeball saves installation time.
  • 2.8 mm fixed lens
  • CVI/CVBS/AHD/TVI switchable.
  • IP67, 12 VDC.
Specification
  • 5 MP CMOS
  •  2880 (H) × 1620 (V)
  •  Progressive
  •  PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
  •  0.05 [email protected] (Color, 30 IRE) / 0.005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
  •  >65 dB
  •  IR: 20 m / Warm light: 20 m
  •  Auto
  •  2 (Warm light); 2 (IR light)
  •  Fixed-focal
  •  No
  •  M12
  •  2.8 mm
  •  F2.0
  •  2.8 mm: H: 102°; V: 56°; D: 125°
  •  Fixed
  •  2.8 mm: 0.5 m
  •  CVI: PAL:   5M@25 fps; 4M@25 fps;1080p@25 fps; NTSC: 1080p@30 fps; / AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; / CVBS: PAL: 960H; NTSC: 960H
  •  5M (2880 × 1620); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  •  Auto(ICR)/Color/B/W
  •  BLC; HLC; DWDR
  •  DWDR
  •  Auto;Area white balance
  •  Auto
  •  3D NR
  •  Smart IR&WL; WL Mode; IR Mode
  •  Yes
  •  Off/On (8 areas, rectangle)
  •  CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035; / FCC: 47 CFR FCC Part 15, Subpart B
  •  Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  •  1 channel built-in mic
  •  12 VDC ± 30%
  •  Max 4.5W (12 VDC, IR on)
  •  –40 °C to +60 °C
  •  <95% (RH), non-condensing
  •  –40 °C to +60 °C
  •  <95% (RH), non-condensing
  •  IP67
  •  Plastic
  •  Φ97.1 mm × 93.8 mm
  •  0.19 kg
  •  0.3 kg
  •  Wall mount; ceiling mount; vertical pole mount
