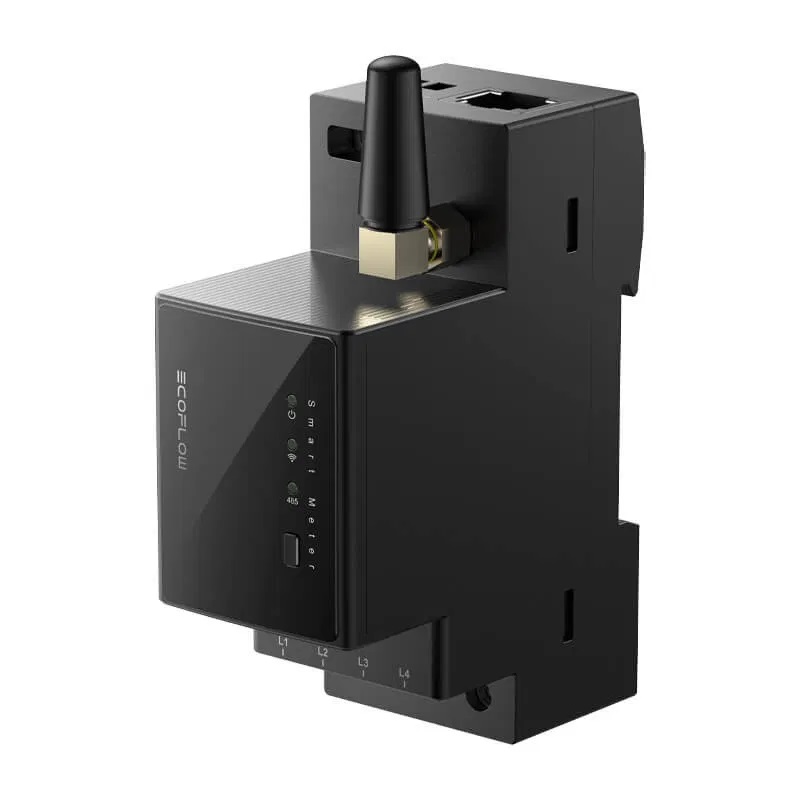

EcoFlow STREAM Smart Meter Real Time Energy Tracking & Allocation

€119.00 €129.00

Categories: POWER

24/7 SUPPORT

Support every time

ACCEPT PAYMENT

Visa, Paypal, Master

SECURED PAYMENT

100% secured

FREE SHIPPING

Order over €60

15 DAYS RETURN

15 days guarantee

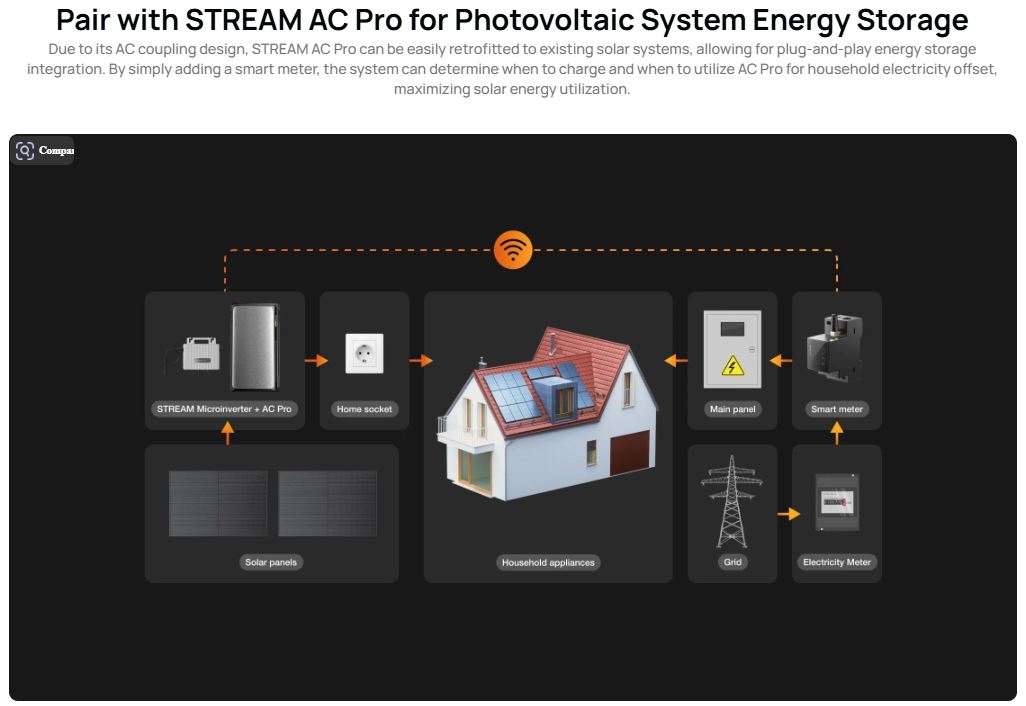

Pair with the EcoFlow STREAM Series Plug & Play Solar Plant

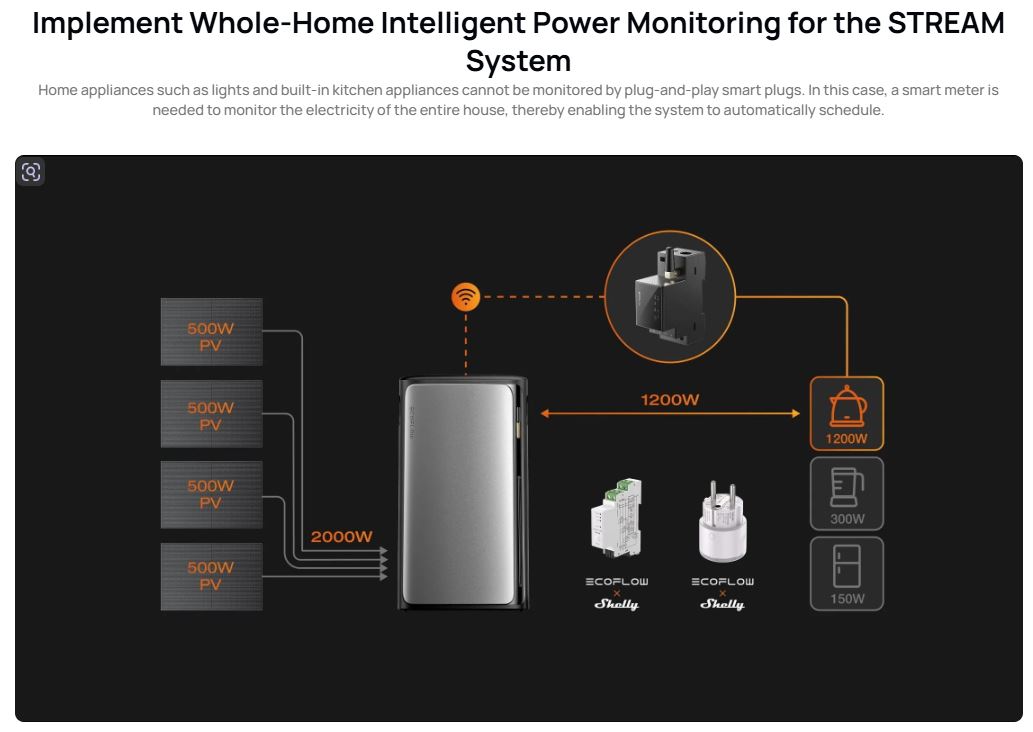

Whole-Home Intelligent Power Monitoring
Utilise household electricity offset
Maximise solar energy utilisation

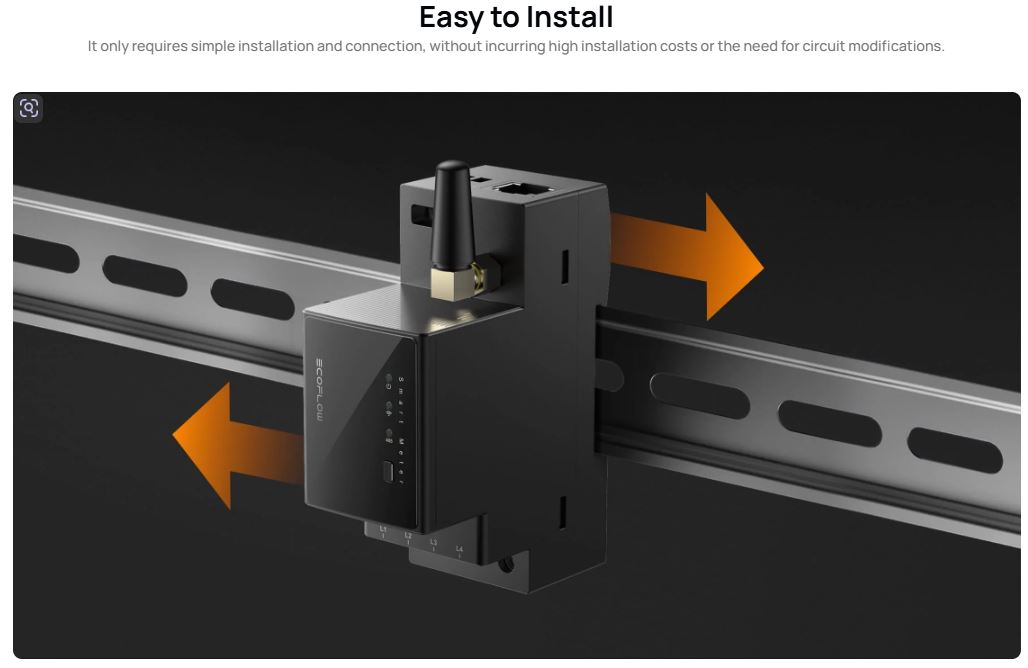

Easy to Install
Works with EcoFlow OASIS

*Not compatible with EcoFlow PowerStream Microinverter

Specification

Size (HxWxD) 94x19x69 ±0.5 mm /
Weight 62 ±1 g
Mounting DIN rail
Screw terminals max torque 0.4 Nm
Conductor cross section 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
Conductor stripped length 6 to 7 mm
Shell material Plastic
Ambient temperature -20 °C to 40 °C
Humidity 30 % to 70 % RH
Max. altitude 2000 m
Power supply voltage AC 100 - 260 V, 50/60 Hz
Power supply voltage DC N/A
Power consumption < 3 W
External protection Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Internal-temperature sensor Yes
Voltmeters (RMS for each phase) 100 - 260 V
Voltmeters accuracy ±1 %
Ammeters (RMS via CT for each phase and the Neutral) 0-120 A
Compatible CT CT 120A
Ammeters accuracy ±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)
Power and energy meters Active and apparent power / Active and apparent energy / Power factor / Fundamental active and fundamental reactive energy
Channel-to-channel calibration minimum load 500 W per channel
No load threshold 30 VA per channel
Measurement data storage At least 60 days of 1 min data resolution
Data export CSV for PQ recorded values / JSON format export through RPC
RF band 2400 - 2495 MHz
Max. RF power <20 dBm
Wi-Fi protocol 802.11 b/g/n
Wi-Fi Range Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
Bluetooth Protocol 4.2
Bluetooth Range Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
CPU ESP32-D0WDQ6
Flash 16 MB
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
CoAP No
