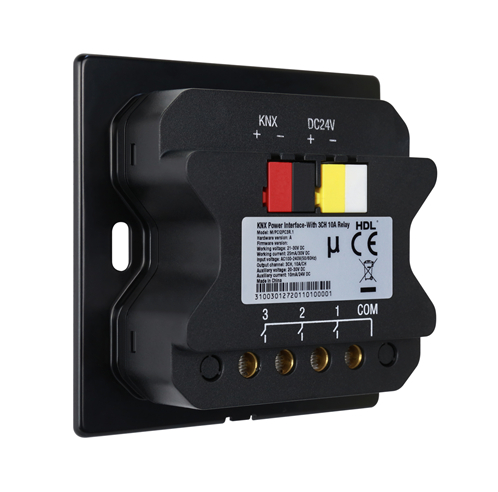

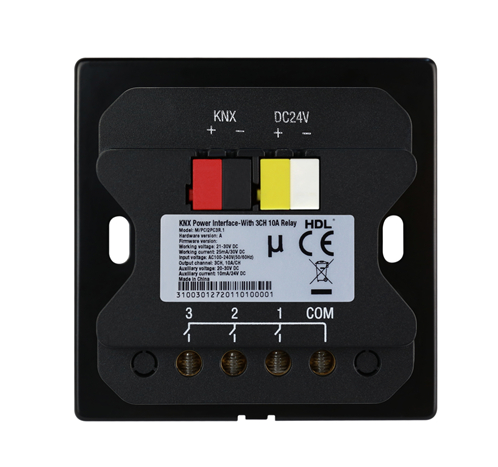

HDL KNX Standalone Power Interf. 3CH 10A Relay Granite & A2 Series
Power Interface EU-With 3CH 10A Relay
Input voltage: AC100-240V (50/60Hz)
Auxiliary current output: 10mA/24V DC: 10mA/24V DC,
3CH 10A magnetic latching relay output, long press the programming button to realize all relay channels on/off, provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU.
Comply with 86*86 Size junction box
- With 2/3 10A relay channels

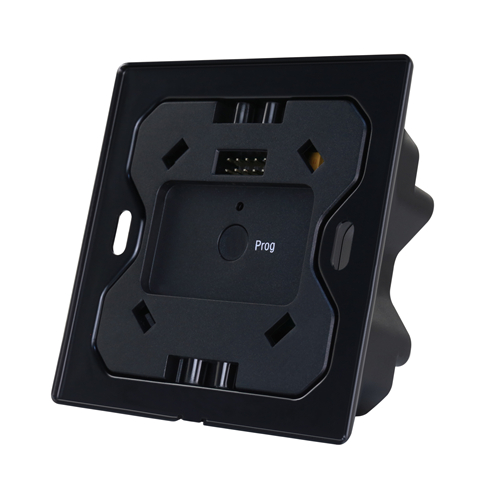

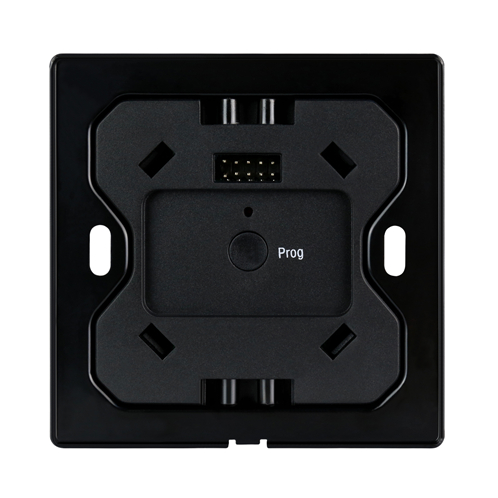

- With independent programming button and programming indicator
- Short press the button to enter the programming mode, long press the programming button to
- realize all relay channel on/off
- Provides power and communication signals for KNX Granite Display, etc.
- With scene control, staircase light control, delay control functions
- Relay usage time & frequency statistics
- Relay health check (voltage detection
