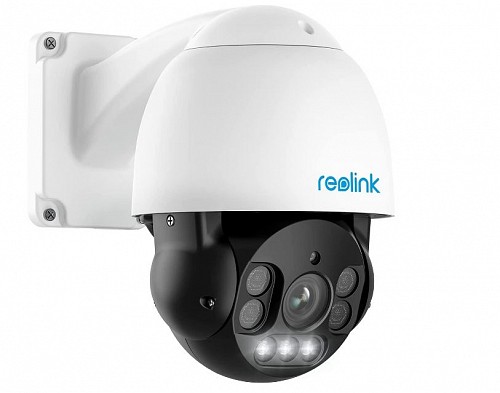

Reolink POE IP PTZ Camera 8MP With Spotlights RLC-823A
-
- Person/Vehicle Detection
- Pan, Tilt & 5X Zoom
- Color Night Vision
- Two-Way Audio
-
Video & Audio
- Image Sensor : 1/2.8" CMOS sensor
- Video Resolution : Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec
- Lens : f=2.7-13.5mm F=1.6-3.3, zoom module
- Optical Zoom : 5X
- Video Format : H.265
- Field of View : Horizontal: 96°-27° / Vertical: 69°-21°
- Day & Night : Auto-switching with IR-cut filter
- Infrared Night Vision : Up to 60 meters (LED: 4pcs/28mil/850nm)
- Color Night Vision : Spotlight: 3pcs/5700K/945 lumens
- Audio : Two-way audio
Power
- PoE : IEEE 802.3at, 48V Active
- DC Power : DC 12.0V⎓2A, <24W

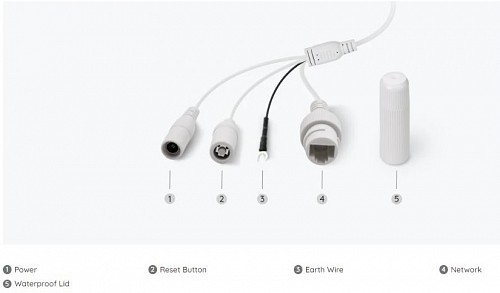

Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps; RJ45
- Storage : Micro SD card slot (Max. 256GB)
- Audio ; Built-in microphone and speaker
Pan & Tilt
- Pan & Tilt Range : Pan: 360°, Tilt: 0° ~ 90°
- Pan Speed : 2.5°-150°/s (Speed can be set)
- Tilt Speed : 1.5°-60°/s (Speed can be set)
- Preset : 64
- Patrol : 1 Patrol; up to 16 presets per patrol
- Auto Tracking : Support
- Power-off Memory Function : Support
Software Features
- Frame Rate : Mainstream: 2fps - 25fps (default: 25fps) / Substream: 4fps - 15fps (default: 10fps)
- Code Rate : Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Browsers Supported : Edge, Chrome, Firefox, Safari
- OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm : Motion detection; person detection; vehicle detection; pet detection (beta)
- Record Mode : Motion-triggered recording (default); 24/7 recording; scheduled recording
- Protocols & Standards : HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximal User Access : 20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Smart Home : Google Assistant
Working Environment
- Temperature : Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)
- Operating humidity: 10% ~ 90%

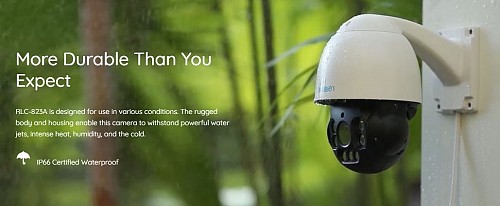

- Waterproof : IP66

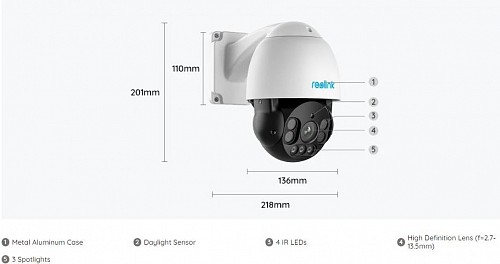

Size & Weight
- Dimension : Φ136*201mm
- Weight : 1.8kg
