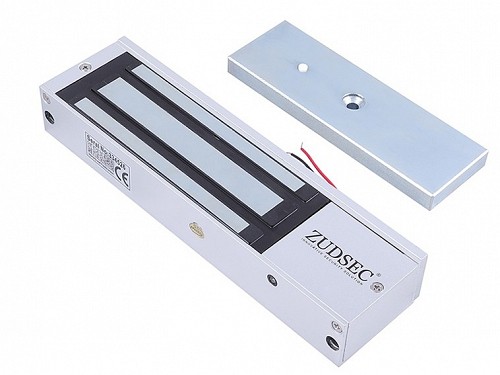

Zudsec Lock Electromagnetic ZDL-500ST
- Input voltage：DC12V
- Holding Force: 500kg(1200Lbs)
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions; NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
- Voltage: 12VDC+10%
- Power consumption: 12V/500mA
- Signal output:NO /NC /COM, NO output when locking and unlocking the NC output
- Red indicates the door is unlock,Green indicates the door is lock
- Delay time:0~9 seconds
- Surface Temp: ≤+20°C
- Operating Temp: 10~+55°C(14-131F)
- Suitable Humidity: 0~90%
- Product dimension：265×73×41mm(Body), 185×62×13mm(Magnet)
- Packing size: 28.5*8*7.5cm, Weight: 4.3 Kgs
